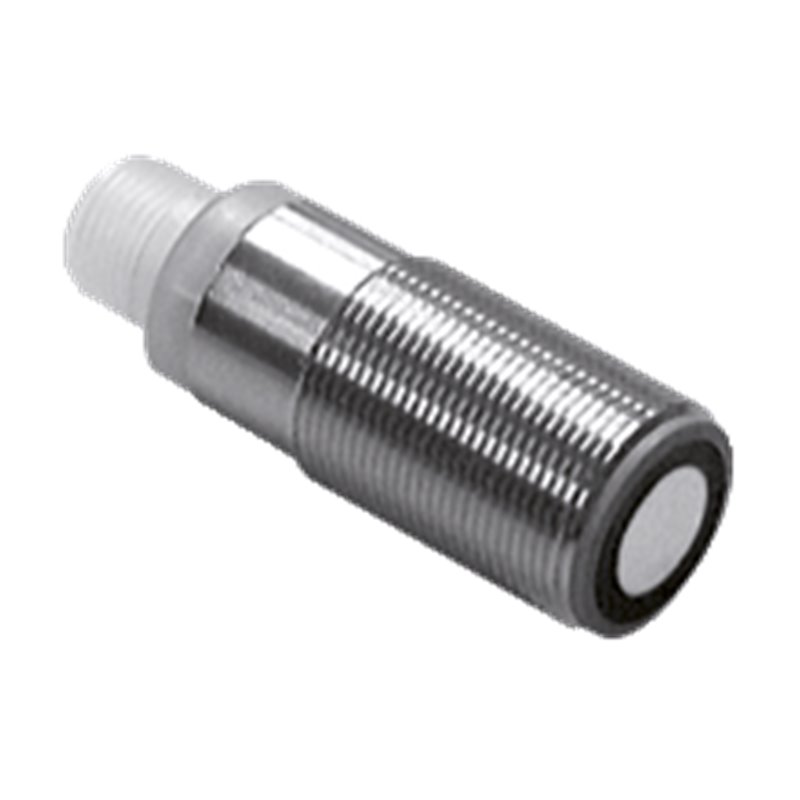

UB800-18GM40-U-V1 PEPPERL+FUCHS - Part number: 205336

Datasheet excerpt: Technical data of  UB800-18GM40-U-V1 Product Description Single head system General specifications Sensing range50 ... 800 mm Adjustment range70 ... 800 mm Dead band0 ... 50 mm Standard target plate100 mm x 100 mm Transducer frequency255 kHz Response delay100 ms Indicators/operating means LED greenPower on LED yellowsolid yellow: object in the evaluation rangeyellow, flashing: program function, object detected LED redsolid red: Errorred, flashing: program function, object not detected Electrical specifications Operating voltage15 ... 30 V DC , ripple 10 %SS No-load supply current≤ 20 mA Input Input type1 program inputlower evaluation limit A1: -UB ... +1 V, upper evaluation limit A2: +4 V ... +UB input impedance: > 4.7 kΩ, pulse duration: ≥ 1 s Output Output type1 analog output 0 ... 10 V Default settingevaluation limit A1: 70 mm evaluation limit A2: 800 mm Resolution0.4 mm at max. sensing range Deviation of the characteristic curve± 1 % of full-scale value Repeat accuracy± 0.5 % of full-scale value Load impedance> 1 kOhm Temperature influence± 1.5 % of full-scale value Approvals and certificates UL approvalcULus Listed, General Purpose CSA approvalcCSAus Listed, General Purpose CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Connection typeConnector M12 x 1 , 4-pin Degree of protectionIP67 Material Housingbrass, nickel-plated Transducerepoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT Mass25 g Classifications SystemClasscode ECLASS 11.027272803 ECLASS 10.0.127272803 ECLASS 9.027272803 ECLASS 8.027272803 ECLASS 5.127272803 ETIM 8.0EC001849 ETIM 7.0EC001849 ETIM 6.0EC001849 ETIM 5.0EC001849 UNSPSC 12.141111960 Datasheet excerpt: Technical data of  UB800-18GM40-U-V1 Product Description Single head system General specifications Sensing range50 ... 800 mm Adjustment range70 ... 800 mm Dead band0 ... 50 mm Standard target plate100 mm x 100 mm Transducer frequency255 kHz Response delay100 ms Indicators/operating means LED greenPower on LED yellowsolid yellow: object in the evaluation rangeyellow, flashing: program function, object detected LED redsolid red: Errorred, flashing: program function, object not detected Electrical specifications Operating voltage15 ... 30 V DC , ripple 10 %SS No-load supply current≤ 20 mA Input Input type1 program inputlower evaluation limit A1: -UB ... +1 V, upper evaluation limit A2: +4 V ... +UB input impedance: > 4.7 kΩ, pulse duration: ≥ 1 s Output Output type1 analog output 0 ... 10 V Default settingevaluation limit A1: 70 mm evaluation limit A2: 800 mm Resolution0.4 mm at max. sensing range Deviation of the characteristic curve± 1 % of full-scale value Repeat accuracy± 0.5 % of full-scale value Load impedance> 1 kOhm Temperature influence± 1.5 % of full-scale value Approvals and certificates UL approvalcULus Listed, General Purpose CSA approvalcCSAus Listed, General Purpose CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Connection typeConnector M12 x 1 , 4-pin Degree of protectionIP67 Material Housingbrass, nickel-plated Transducerepoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT Mass25 g Classifications SystemClasscode ECLASS 11.027272803 ECLASS 10.0.127272803 ECLASS 9.027272803 ECLASS 8.027272803 ECLASS 5.127272803 ETIM 8.0EC001849 ETIM 7.0EC001849 ETIM 6.0EC001849 ETIM 5.0EC001849 UNSPSC 12.141111960
