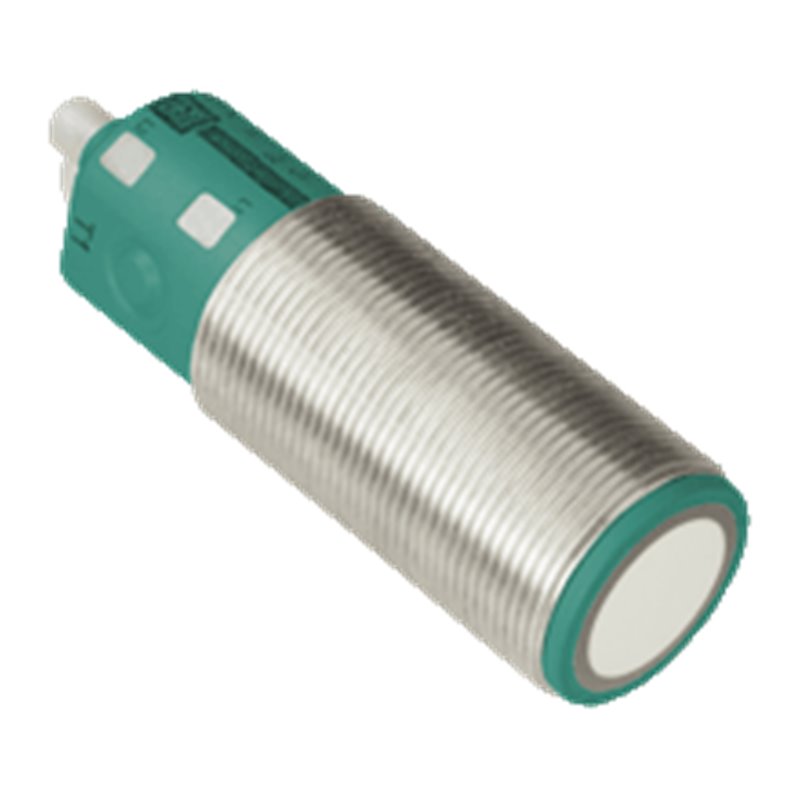

UC2000-30GM-IUEP-IO-V15 PEPPERL+FUCHS - Part number: 191239

Datasheet excerpt: Technical data of  UC2000-30GM-IUEP-IO-V15 Product Description Single head system General specifications Sensing range90 ... 2000 mm Adjustment range120 ... 2000 mm Dead band0 ... 90 mm Standard target plate100 mm x 100 mm Transducer frequency200 kHz Response delayminimum : 65 ms factory setting: 125 ms Memory Non-volatile memoryEEPROM Write cycles100000 Indicators/operating means LED greensolid: Power onflashing: Standby mode or IO link communication LED yellow 1solid: Object in evaluation rangeflashing: Learning function, object detected LED yellow 2solid: Object in evaluation rangeflashing: Learning function, object detected LED redsolid red: Errorred, flashing: program function, object not detected Electrical specifications Operating voltage10 ... 30 V DC , ripple 10 %SS 15 ... 30 V voltage output No-load supply current≤ 60 mA Power consumption≤ 1 W Time delay before availability≤ 120 ms Interface Interface typeIO-Link ProtocolIO-Link V1.0 Transfer rateAcyclical: typical 95 Bit/s Cycle timemin. 33.6 ms ModeCOM2 (38.4 kBit/s) Process data width16 bit SIO mode supportyes Input/Output Input/output type1 synchronization connection, bidirectional 0 Level0 ... 1 V 1 Level4 V ... UB Input impedance> 12 kΩ Output rated operating current< 12 mA Pulse length0.5 ... 300 ms (level 1) Pulse interval≥ 33 ms (level 0) Synchronization frequency Common mode operation≤ 30 Hz Multiplex operation≤ 33 Hz / n , n = number of sensors , n ≤ 10 (factory setting: n = 5 ) Output Output type1 push-pull (4 in 1) output, short-circuit protected, reverse polarity protected Current output 4 mA ... 20 mA or voltage output 0 V ... 10 V configurable Rated operating current200 mA , short-circuit/overload protected Voltage drop≤ 2.5 V Resolutioncurrent output: evaluation range [mm]/3200 but ≥ 0.35 mmvoltage output: evaluation range [mm]/4000 but ≥ 0.35 mm Deviation of the characteristic curve≤ 0.2 % of full-scale value Repeat accuracy≤ 0.1 % of full-scale value Switching frequency≤ 4 Hz Range hysteresis1 % of the adjusted operating range (default settings), programmable Load impedancecurrent output: ≤ 300 Ohm voltage output: ≥ 1000 Ohm Temperature influence≤ 1.5 % from full-scale value (with temperature compensation)≤ 0.2 %/K (without temperature compensation) Compliance with standards and directives Standard conformity StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003 Approvals and certificates EAC conformityTR CU 020/2011 TR CU 037/2016 UL approvalcULus Listed, Class 2 Power Source CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Connection typeConnector plug M12 x 1 , 5-pin Housing diameter30 mm Degree of protectionIP67 Material HousingStainless steel 1.4305 / AISI 303 TPU Polyamides Transducerepoxy resin/hollow glass sphere mixture; polyurethane foam Mass72 g Factory settings Output 1near switch point: 120 mm far switch point: 2000 mm Output mode: Window mode output behavior: NO contact Output 2near limit: 120 mm far limit: 1000 mm Output mode: rising ramp output behavior: Current output 4 mA ... 20 mA Beam widthwide Classifications SystemClasscode ECLASS 11.027272803 ECLASS 10.0.127272803 ECLASS 9.027272803 ECLASS 8.027272803 ECLASS 5.127272803 ETIM 8.0EC001849 ETIM 7.0EC001849 ETIM 6.0EC001849 ETIM 5.0EC001849 UNSPSC 12.141111960 Datasheet excerpt: Technical data of  UC2000-30GM-IUEP-IO-V15 Product Description Single head system General specifications Sensing range90 ... 2000 mm Adjustment range120 ... 2000 mm Dead band0 ... 90 mm Standard target plate100 mm x 100 mm Transducer frequency200 kHz Response delayminimum : 65 ms factory setting: 125 ms Memory Non-volatile memoryEEPROM Write cycles100000 Indicators/operating means LED greensolid: Power onflashing: Standby mode or IO link communication LED yellow 1solid: Object in evaluation rangeflashing: Learning function, object detected LED yellow 2solid: Object in evaluation rangeflashing: Learning function, object detected LED redsolid red: Errorred, flashing: program function, object not detected Electrical specifications Operating voltage10 ... 30 V DC , ripple 10 %SS 15 ... 30 V voltage output No-load supply current≤ 60 mA Power consumption≤ 1 W Time delay before availability≤ 120 ms Interface Interface typeIO-Link ProtocolIO-Link V1.0 Transfer rateAcyclical: typical 95 Bit/s Cycle timemin. 33.6 ms ModeCOM2 (38.4 kBit/s) Process data width16 bit SIO mode supportyes Input/Output Input/output type1 synchronization connection, bidirectional 0 Level0 ... 1 V 1 Level4 V ... UB Input impedance> 12 kΩ Output rated operating current< 12 mA Pulse length0.5 ... 300 ms (level 1) Pulse interval≥ 33 ms (level 0) Synchronization frequency Common mode operation≤ 30 Hz Multiplex operation≤ 33 Hz / n , n = number of sensors , n ≤ 10 (factory setting: n = 5 ) Output Output type1 push-pull (4 in 1) output, short-circuit protected, reverse polarity protected Current output 4 mA ... 20 mA or voltage output 0 V ... 10 V configurable Rated operating current200 mA , short-circuit/overload protected Voltage drop≤ 2.5 V Resolutioncurrent output: evaluation range [mm]/3200 but ≥ 0.35 mmvoltage output: evaluation range [mm]/4000 but ≥ 0.35 mm Deviation of the characteristic curve≤ 0.2 % of full-scale value Repeat accuracy≤ 0.1 % of full-scale value Switching frequency≤ 4 Hz Range hysteresis1 % of the adjusted operating range (default settings), programmable Load impedancecurrent output: ≤ 300 Ohm voltage output: ≥ 1000 Ohm Temperature influence≤ 1.5 % from full-scale value (with temperature compensation)≤ 0.2 %/K (without temperature compensation) Compliance with standards and directives Standard conformity StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003 Approvals and certificates EAC conformityTR CU 020/2011 TR CU 037/2016 UL approvalcULus Listed, Class 2 Power Source CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Connection typeConnector plug M12 x 1 , 5-pin Housing diameter30 mm Degree of protectionIP67 Material HousingStainless steel 1.4305 / AISI 303 TPU Polyamides Transducerepoxy resin/hollow glass sphere mixture; polyurethane foam Mass72 g Factory settings Output 1near switch point: 120 mm far switch point: 2000 mm Output mode: Window mode output behavior: NO contact Output 2near limit: 120 mm far limit: 1000 mm Output mode: rising ramp output behavior: Current output 4 mA ... 20 mA Beam widthwide Classifications SystemClasscode ECLASS 11.027272803 ECLASS 10.0.127272803 ECLASS 9.027272803 ECLASS 8.027272803 ECLASS 5.127272803 ETIM 8.0EC001849 ETIM 7.0EC001849 ETIM 6.0EC001849 ETIM 5.0EC001849 UNSPSC 12.141111960
