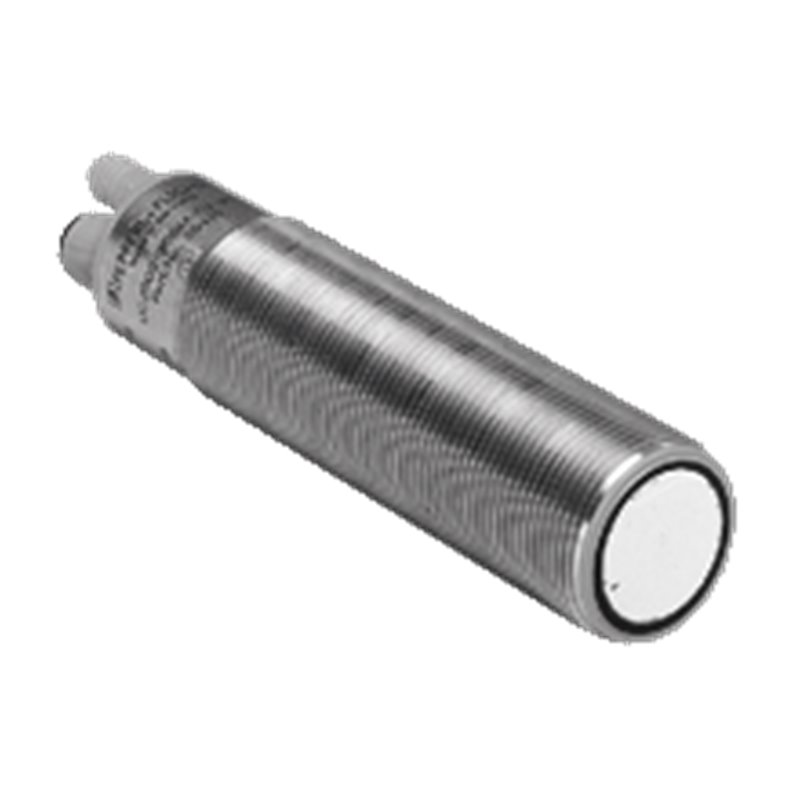

UC2000-30GM-IUR2-V15 PEPPERL+FUCHS - Part number: 104093

Datasheet excerpt: Technical data of  UC2000-30GM-IUR2-V15 Product Description Single head system General specifications Sensing range80 ... 2000 mm Adjustment range120 ... 2000 mm Dead band0 ... 80 mm Standard target plate100 mm x 100 mm Transducer frequency180 kHz Response delay65 ms minimum195 ms factory setting Indicators/operating means LED greensolid: Power-onflashing: Standby mode or program function object detected LED yellow 1solid: object in evaluation rangeflashing: program function LED yellow 2solid: object in detection rangeflashing: program function LED redsolid: temperature/program plug not connectedflashing: fault or program function object not detected Temperature/TEACH-IN connectorTemperature compensation , Evaluation range programming , output function setting Electrical specifications Operating voltage10 ... 30 V DC , ripple 10 %SS Power consumption≤ 900 mW Time delay before availability≤ 500 ms Interface Interface typeRS 232, 9600 Bit/s , no parity, 8 data bits, 1 stop bit Input/Output Synchronizationbi-directional0 level -UB...+1 V1 level: +4 V...+UB input impedance: > 12 KOhmsynchronization pulse: ≥ 100 µs, synchronization interpulse period: ≥ 2 ms Synchronization frequency Common mode operationmax. 30 Hz Multiplex operation≤ 30 Hz / n , n = number of sensors , n ≤ 5 Output Output type1 current output 4 ... 20 mA1 voltage output 0 ... 10 V Resolutionevaluation range [mm]/4000, but ≥ 0.35 mm Deviation of the characteristic curve≤ 0.2 % of full-scale value Repeat accuracy≤ 0.1 % of full-scale value Load impedancecurrent output: ≤ 500 Ohm voltage output: ≥ 1000 Ohm Temperature influence≤ 2 % from full-scale value (with temperature compensation)≤ 0.2 %/K (without temperature compensation) Compliance with standards and directives Standard conformity StandardsEN 60947-5-2:2007+A1:2012 IEC 60947-5-2:2007 + A1:2012 EN 60947-5-7:2003 IEC 60947-5-7:2003 Approvals and certificates EAC conformityTR CU 020/2011 TR CU 037/2016 UL approvalcULus Listed, General Purpose CSA approvalcCSAus Listed, General Purpose CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Connection typeConnector plug M12 x 1 , 5-pin Degree of protectionIP65 Material Housingstainless steel (1.4305 / AISI 303)PBT plastic parts Transducerepoxy resin/hollow glass sphere mixture; polyurethane foam Mass170 g Factory settings Outputevaluation limit A1: 200 mm evaluation limit A2: 2000 mm rising ramp Classifications SystemClasscode ECLASS 11.027272803 ECLASS 10.0.127272803 ECLASS 9.027272803 ECLASS 8.027272803 ECLASS 5.127272803 ETIM 8.0EC001849 ETIM 7.0EC001849 ETIM 6.0EC001849 ETIM 5.0EC001849 UNSPSC 12.141111960 Datasheet excerpt: Technical data of  UC2000-30GM-IUR2-V15 Product Description Single head system General specifications Sensing range80 ... 2000 mm Adjustment range120 ... 2000 mm Dead band0 ... 80 mm Standard target plate100 mm x 100 mm Transducer frequency180 kHz Response delay65 ms minimum195 ms factory setting Indicators/operating means LED greensolid: Power-onflashing: Standby mode or program function object detected LED yellow 1solid: object in evaluation rangeflashing: program function LED yellow 2solid: object in detection rangeflashing: program function LED redsolid: temperature/program plug not connectedflashing: fault or program function object not detected Temperature/TEACH-IN connectorTemperature compensation , Evaluation range programming , output function setting Electrical specifications Operating voltage10 ... 30 V DC , ripple 10 %SS Power consumption≤ 900 mW Time delay before availability≤ 500 ms Interface Interface typeRS 232, 9600 Bit/s , no parity, 8 data bits, 1 stop bit Input/Output Synchronizationbi-directional0 level -UB...+1 V1 level: +4 V...+UB input impedance: > 12 KOhmsynchronization pulse: ≥ 100 µs, synchronization interpulse period: ≥ 2 ms Synchronization frequency Common mode operationmax. 30 Hz Multiplex operation≤ 30 Hz / n , n = number of sensors , n ≤ 5 Output Output type1 current output 4 ... 20 mA1 voltage output 0 ... 10 V Resolutionevaluation range [mm]/4000, but ≥ 0.35 mm Deviation of the characteristic curve≤ 0.2 % of full-scale value Repeat accuracy≤ 0.1 % of full-scale value Load impedancecurrent output: ≤ 500 Ohm voltage output: ≥ 1000 Ohm Temperature influence≤ 2 % from full-scale value (with temperature compensation)≤ 0.2 %/K (without temperature compensation) Compliance with standards and directives Standard conformity StandardsEN 60947-5-2:2007+A1:2012 IEC 60947-5-2:2007 + A1:2012 EN 60947-5-7:2003 IEC 60947-5-7:2003 Approvals and certificates EAC conformityTR CU 020/2011 TR CU 037/2016 UL approvalcULus Listed, General Purpose CSA approvalcCSAus Listed, General Purpose CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Connection typeConnector plug M12 x 1 , 5-pin Degree of protectionIP65 Material Housingstainless steel (1.4305 / AISI 303)PBT plastic parts Transducerepoxy resin/hollow glass sphere mixture; polyurethane foam Mass170 g Factory settings Outputevaluation limit A1: 200 mm evaluation limit A2: 2000 mm rising ramp Classifications SystemClasscode ECLASS 11.027272803 ECLASS 10.0.127272803 ECLASS 9.027272803 ECLASS 8.027272803 ECLASS 5.127272803 ETIM 8.0EC001849 ETIM 7.0EC001849 ETIM 6.0EC001849 ETIM 5.0EC001849 UNSPSC 12.141111960
