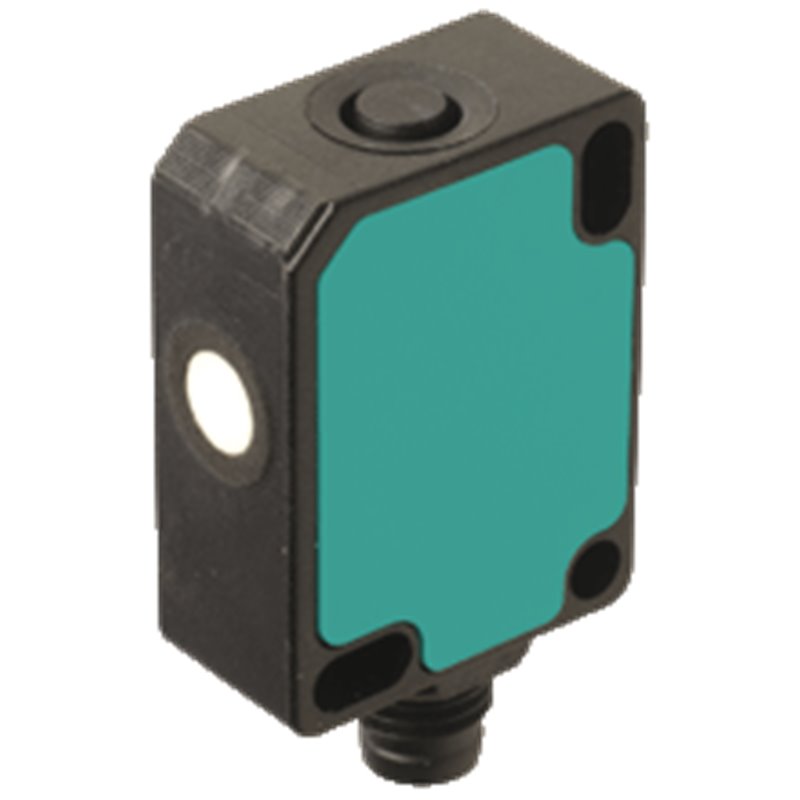

UC400-F77-IU-IO-V31 PEPPERL+FUCHS - Part number: 261247

Datasheet excerpt: Technical data of  UC400-F77-IU-IO-V31 Product Description Single head system General specifications Sensing range30 ... 400 mm Adjustment range40 ... 400 mm Dead band0 ... 30 mm Standard target plate20 mm x 20 mm Transducer frequency310 kHz Response delayminimum : 10 ms factory setting: 37 ms Sensor cycle time≥ 10 ms (factory setting) ; programmable to 60 s Memory Non-volatile memoryEEPROM Write cycles300000 Indicators/operating means LED greensolid: power onflashing: standby mode or IO-Link communication LED yellowsolid: object in evaluation rangeflashing: programming of the limits, object detected LED redsolid: faultflashing: programming limits, object not detected Electrical specifications Operating voltage18 ... 30 V DC , ripple 10 %SS No-load supply current≤ 50 mA Power consumption≤ 500 mW Time delay before availability≤ 300 ms Interface Interface typeIO-Link (available after activation via programming button until next reset) Input/Output Input/output type1 synchronization connection, bidirectional 0 Level0 ... 1 V 1 Level2.5 V ... UB Input impedance> 22 kΩ Output rated operating currentcurrent source < 2.5 mA Pulse length≥ 1 ms with external control, low active Synchronization frequency Common mode operation≤ 109 Hz Multiplex operation≤ 109 Hz / n , n = number of sensors , n ≤ 10 Output Output type1 analog output 0 (4) ... 20 mA or 1 analog output 0 ... 10 V Resolutioncurrent output: evaluation range [mm]/3200 but ≥ 0.35 mmvoltage output: evaluation range [mm]/4000 but ≥ 0.35 mm Deviation of the characteristic curve≤ ± 1 % of full-scale value Repeat accuracy≤ ± 0.1 % of full-scale value Load impedancecurrent output: ≤ 500 Ohm voltage output: ≥ 1000 Ohm Temperature influence≤ ± 0.75 % of the end value (with temperature compensation) from 10 minutes after switching on the sensor ; 0.17 %/K (without temperature compensation) Compliance with standards and directives Standard conformity StandardsEN 60947-5-2:2007+A1:2012 IEC 60947-5-2:2007 + A1:2012 EN 60947-5-7:2003 IEC 60947-5-7:2003 Approvals and certificates UL approvalcULus Listed, Class 2 Power Source CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperaturecurrent output -25 ... 60 °C (-13 ... 140 °F) voltage output -25 ... 70 °C (-13 ... 158 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Connection typeConnector plug M8 x 1 , 4-pin Degree of protectionIP67 Material HousingPolycarbonate Transducerepoxy resin/hollow glass sphere mixture; polyurethane foam Installation positionany position Mass9 g Tightening torque, fastening screwsmax. 0.2 Nm Factory settings Outputnear limit: 40 mm far limit: 400 mm Output mode: rising ramp output type: 4 ... 20 mA Beam widthwide Classifications SystemClasscode ECLASS 11.027272803 ECLASS 10.0.127272803 ECLASS 9.027272803 ECLASS 8.027272803 ECLASS 5.127272803 ETIM 8.0EC001849 ETIM 7.0EC001849 ETIM 6.0EC001849 ETIM 5.0EC001849 UNSPSC 12.141111960 Datasheet excerpt: Technical data of  UC400-F77-IU-IO-V31 Product Description Single head system General specifications Sensing range30 ... 400 mm Adjustment range40 ... 400 mm Dead band0 ... 30 mm Standard target plate20 mm x 20 mm Transducer frequency310 kHz Response delayminimum : 10 ms factory setting: 37 ms Sensor cycle time≥ 10 ms (factory setting) ; programmable to 60 s Memory Non-volatile memoryEEPROM Write cycles300000 Indicators/operating means LED greensolid: power onflashing: standby mode or IO-Link communication LED yellowsolid: object in evaluation rangeflashing: programming of the limits, object detected LED redsolid: faultflashing: programming limits, object not detected Electrical specifications Operating voltage18 ... 30 V DC , ripple 10 %SS No-load supply current≤ 50 mA Power consumption≤ 500 mW Time delay before availability≤ 300 ms Interface Interface typeIO-Link (available after activation via programming button until next reset) Input/Output Input/output type1 synchronization connection, bidirectional 0 Level0 ... 1 V 1 Level2.5 V ... UB Input impedance> 22 kΩ Output rated operating currentcurrent source < 2.5 mA Pulse length≥ 1 ms with external control, low active Synchronization frequency Common mode operation≤ 109 Hz Multiplex operation≤ 109 Hz / n , n = number of sensors , n ≤ 10 Output Output type1 analog output 0 (4) ... 20 mA or 1 analog output 0 ... 10 V Resolutioncurrent output: evaluation range [mm]/3200 but ≥ 0.35 mmvoltage output: evaluation range [mm]/4000 but ≥ 0.35 mm Deviation of the characteristic curve≤ ± 1 % of full-scale value Repeat accuracy≤ ± 0.1 % of full-scale value Load impedancecurrent output: ≤ 500 Ohm voltage output: ≥ 1000 Ohm Temperature influence≤ ± 0.75 % of the end value (with temperature compensation) from 10 minutes after switching on the sensor ; 0.17 %/K (without temperature compensation) Compliance with standards and directives Standard conformity StandardsEN 60947-5-2:2007+A1:2012 IEC 60947-5-2:2007 + A1:2012 EN 60947-5-7:2003 IEC 60947-5-7:2003 Approvals and certificates UL approvalcULus Listed, Class 2 Power Source CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperaturecurrent output -25 ... 60 °C (-13 ... 140 °F) voltage output -25 ... 70 °C (-13 ... 158 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Connection typeConnector plug M8 x 1 , 4-pin Degree of protectionIP67 Material HousingPolycarbonate Transducerepoxy resin/hollow glass sphere mixture; polyurethane foam Installation positionany position Mass9 g Tightening torque, fastening screwsmax. 0.2 Nm Factory settings Outputnear limit: 40 mm far limit: 400 mm Output mode: rising ramp output type: 4 ... 20 mA Beam widthwide Classifications SystemClasscode ECLASS 11.027272803 ECLASS 10.0.127272803 ECLASS 9.027272803 ECLASS 8.027272803 ECLASS 5.127272803 ETIM 8.0EC001849 ETIM 7.0EC001849 ETIM 6.0EC001849 ETIM 5.0EC001849 UNSPSC 12.141111960
