UC500-F65-E8R2-V15 PEPPERL+FUCHS - Part number: 235136

PEPPERL+FUCHS

confronta

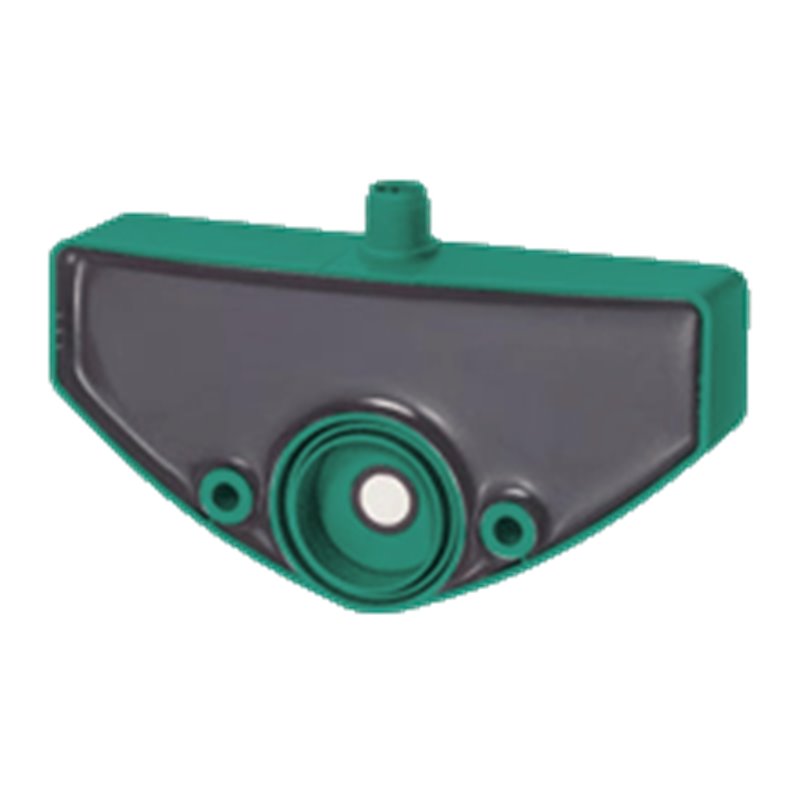

Ultrasonic sensor UC500-F65-E8R2-V15 UC500-F65-E8R2-V15 Level indication 2 switch outputs Program input Programmable by means of Interface (see accessories) and SONPROG Synchronization options Temperature compensation

MPNs 235136, PEP235136, UC500-F65-E8R2-V15

Codice HS 90318000

Peso 0.5 kg

L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.

Venduto da PLC-CITY® e spedito dall'Italia

Pagamenti sicuri

e molti altri

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

12 Mesi garanzia

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

Reso disponibile entro 30 giorni

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Disponibile su richiesta

Richiedi il tuo servizio tecnico personalizzato

Affidati al nostro team di tecnici esperti per una gamma di servizi personalizzati: riparazione, programmazione, manutenzione e molto altro.

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of UC500-F65-E8R2-V15 General specifications Sensing range60 ... 500 mm Adjustment range60 ... 500 mm Dead band0 ... 60 mm Standard target plate10 mm x 10 mm Transducer frequency300 kHz Nominal ratings Time delay before availability250 ms Limit data Permissible cable lengthmax. 300 m Indicators/operating means LED greenPower on LED yellow 1solid: switching state switch output 1flashing: misadjustment LED yellow 2solid: switching state switch output 2flashing: misadjustment Electrical specifications Rated operating voltage24 V DC Operating voltage12 ... 30 V (including ripple) In supply voltage interval 12 ... 20 V sensitivity reduced to 20% ... 0% Ripple≤ 10 % No-load supply current≤ 60 mA Input Input type1 program input Teach-In of Smin Input voltage≤ Operating voltage Levellow level : 0 ... 3 V (Teach-In active) high level : ≥ 15 V (Teach-In inactive) Pulse length≥ 150 ms Output Output type2 switch outputs PNP, NO Rated operating current150 mA , short-circuit/overload protected Default settingSwitching distance "full", Smax: 80 mm Switching distance "empty", Smin: 450 mm Switching hysteresis "full", HSmax: 20 mm Switching hysteresis "empty", HSmin: 100 mm average value "full", MSmax: 20 average value "empty", MSmin: 110 Voltage drop≤ 3 V Switch-on delay80 ms Repeat accuracy± 0.45 mm Off-state current0.01 mA Temperature influence≤ ± 1.5 % Compliance with standards and directives Standard conformity StandardsEN 60947-5-2:2007+A1:2012 IEC 60947-5-2:2007 + A1:2012 Approvals and certificates UL approvalcULus Listed, General Purpose CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Shock resistance30 g , 11 ms period Vibration resistance10 ... 55 Hz , Amplitude ± 1 mm Mechanical specifications Connection typeConnector plug M12 x 1 , 5-pin Degree of protectionIP65 Material HousingPBT Transducerepoxy resin/hollow glass sphere mixture; polyurethane foam Installation positionany position Mass500 g Classifications SystemClasscode ECLASS 11.027272803 ECLASS 10.0.127272803 ECLASS 9.027272803 ECLASS 8.027272803 ECLASS 5.127272803 ETIM 8.0EC001849 ETIM 7.0EC001849 ETIM 6.0EC001849 ETIM 5.0EC001849 UNSPSC 12.141111960 Datasheet excerpt: Technical data of UC500-F65-E8R2-V15 General specifications Sensing range60 ... 500 mm Adjustment range60 ... 500 mm Dead band0 ... 60 mm Standard target plate10 mm x 10 mm Transducer frequency300 kHz Nominal ratings Time delay before availability250 ms Limit data Permissible cable lengthmax. 300 m Indicators/operating means LED greenPower on LED yellow 1solid: switching state switch output 1flashing: misadjustment LED yellow 2solid: switching state switch output 2flashing: misadjustment Electrical specifications Rated operating voltage24 V DC Operating voltage12 ... 30 V (including ripple) In supply voltage interval 12 ... 20 V sensitivity reduced to 20% ... 0% Ripple≤ 10 % No-load supply current≤ 60 mA Input Input type1 program input Teach-In of Smin Input voltage≤ Operating voltage Levellow level : 0 ... 3 V (Teach-In active) high level : ≥ 15 V (Teach-In inactive) Pulse length≥ 150 ms Output Output type2 switch outputs PNP, NO Rated operating current150 mA , short-circuit/overload protected Default settingSwitching distance "full", Smax: 80 mm Switching distance "empty", Smin: 450 mm Switching hysteresis "full", HSmax: 20 mm Switching hysteresis "empty", HSmin: 100 mm average value "full", MSmax: 20 average value "empty", MSmin: 110 Voltage drop≤ 3 V Switch-on delay80 ms Repeat accuracy± 0.45 mm Off-state current0.01 mA Temperature influence≤ ± 1.5 % Compliance with standards and directives Standard conformity StandardsEN 60947-5-2:2007+A1:2012 IEC 60947-5-2:2007 + A1:2012 Approvals and certificates UL approvalcULus Listed, General Purpose CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Shock resistance30 g , 11 ms period Vibration resistance10 ... 55 Hz , Amplitude ± 1 mm Mechanical specifications Connection typeConnector plug M12 x 1 , 5-pin Degree of protectionIP65 Material HousingPBT Transducerepoxy resin/hollow glass sphere mixture; polyurethane foam Installation positionany position Mass500 g Classifications SystemClasscode ECLASS 11.027272803 ECLASS 10.0.127272803 ECLASS 9.027272803 ECLASS 8.027272803 ECLASS 5.127272803 ETIM 8.0EC001849 ETIM 7.0EC001849 ETIM 6.0EC001849 ETIM 5.0EC001849 UNSPSC 12.141111960
