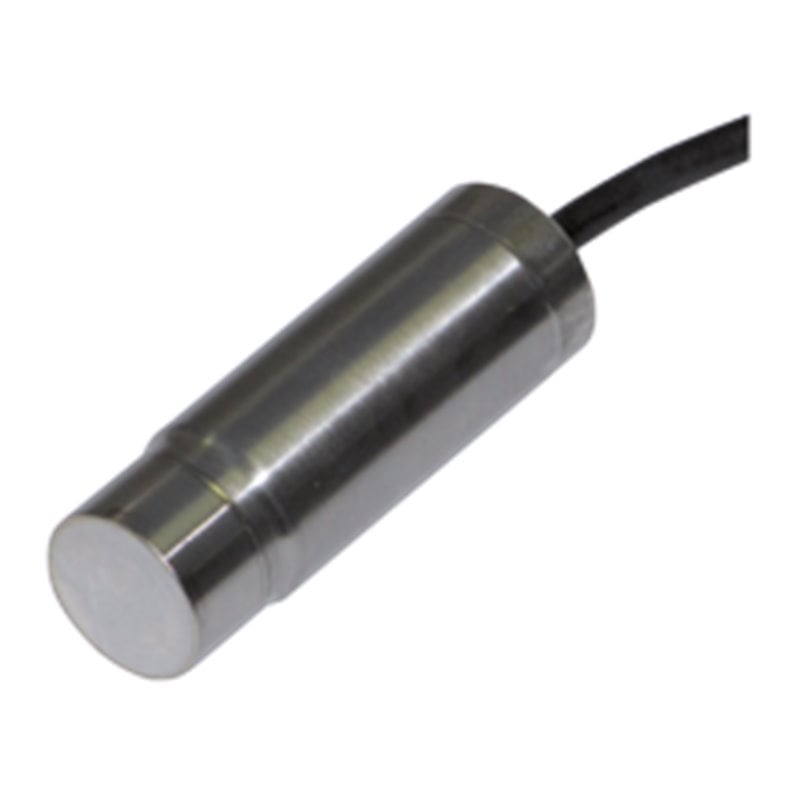

UMB800-18H40-U-2M PEPPERL+FUCHS - Part number: 70128223

Datasheet excerpt: Technical data of  UMB800-18H40-U-2M Product Description Single head system General specifications Sensing range70 ... 800 mm Adjustment range90 ... 800 mm Dead band0 ... 70 mm Standard target plate100 mm x 100 mm Transducer frequency170 kHz Response delay100 ms Electrical specifications Operating voltage15 ... 30 V DC No-load supply current≤ 15 mA Input Input type1 program inputoperating distance 1: -UB ... +1 V, operating distance 2: +6 V ... +UB input impedance: > 4,7 kΩ program pulse: ≥ 1 s Output Output type1 analog output 0 ... 10 V , short-circuit/overload protected Resolution0.4 mm at max. sensing range Deviation of the characteristic curve± 1 % of full-scale value Repeat accuracy± 0.5 % of full-scale value Load impedance> 1 kOhm Temperature influence± 1.5 % of full-scale value Compliance with standards and directives Standard conformity StandardsEN 60947-5-2:2007+A1:2012 IEC 60947-5-2:2007 + A1:2012 EN 60947-5-7:2003 IEC 60947-5-7:2003 Approvals and certificates CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 85 °C (-13 ... 185 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Connection typecable PUR , 2 m , Polyether based Core cross-section4 x 0.19 mm2 Degree of protectionIP68 / IP69K Material Housingstainless steel 1.4404 / AISI 316L TransducerStainless steel 1.4435 / AISI 316L SealCable seal : TPU , Elastollan 1185 A10 Mass90 g Factory settings Outputevaluation limit A1: 90 mm evaluation limit A2: 800 mm Output mode: rising ramp Classifications SystemClasscode ECLASS 11.027272803 ECLASS 10.0.127272803 ECLASS 9.027272803 ECLASS 8.027272803 ECLASS 5.127272803 ETIM 8.0EC001849 ETIM 7.0EC001849 ETIM 6.0EC001849 ETIM 5.0EC001849 UNSPSC 12.141111960 Datasheet excerpt: Technical data of  UMB800-18H40-U-2M Product Description Single head system General specifications Sensing range70 ... 800 mm Adjustment range90 ... 800 mm Dead band0 ... 70 mm Standard target plate100 mm x 100 mm Transducer frequency170 kHz Response delay100 ms Electrical specifications Operating voltage15 ... 30 V DC No-load supply current≤ 15 mA Input Input type1 program inputoperating distance 1: -UB ... +1 V, operating distance 2: +6 V ... +UB input impedance: > 4,7 kΩ program pulse: ≥ 1 s Output Output type1 analog output 0 ... 10 V , short-circuit/overload protected Resolution0.4 mm at max. sensing range Deviation of the characteristic curve± 1 % of full-scale value Repeat accuracy± 0.5 % of full-scale value Load impedance> 1 kOhm Temperature influence± 1.5 % of full-scale value Compliance with standards and directives Standard conformity StandardsEN 60947-5-2:2007+A1:2012 IEC 60947-5-2:2007 + A1:2012 EN 60947-5-7:2003 IEC 60947-5-7:2003 Approvals and certificates CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 85 °C (-13 ... 185 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Connection typecable PUR , 2 m , Polyether based Core cross-section4 x 0.19 mm2 Degree of protectionIP68 / IP69K Material Housingstainless steel 1.4404 / AISI 316L TransducerStainless steel 1.4435 / AISI 316L SealCable seal : TPU , Elastollan 1185 A10 Mass90 g Factory settings Outputevaluation limit A1: 90 mm evaluation limit A2: 800 mm Output mode: rising ramp Classifications SystemClasscode ECLASS 11.027272803 ECLASS 10.0.127272803 ECLASS 9.027272803 ECLASS 8.027272803 ECLASS 5.127272803 ETIM 8.0EC001849 ETIM 7.0EC001849 ETIM 6.0EC001849 ETIM 5.0EC001849 UNSPSC 12.141111960
