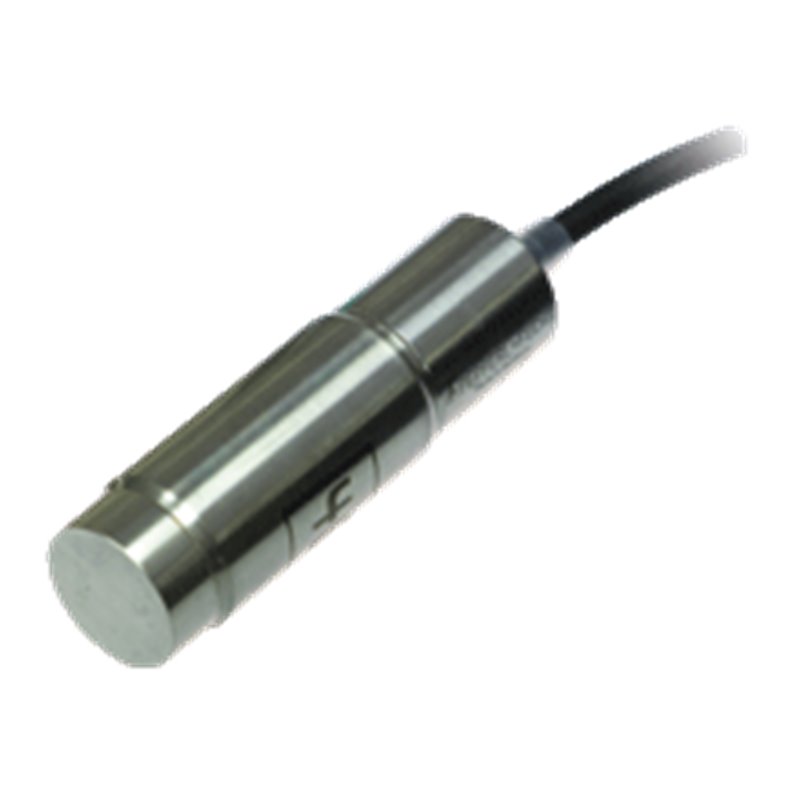

UMC3000-30H-E5-5M PEPPERL+FUCHS - Part number: 70128216

Datasheet excerpt: Technical data of  UMC3000-30H-E5-5M Product Description Single head system General specifications Sensing range200 ... 3000 mm Adjustment range240 ... 3000 mm Dead band0 ... 200 mm Standard target plate100 mm x 100 mm Transducer frequency100 kHz Response delay≤ 200 ms Indicators/operating means LED greenOperating display LED yellowswitching state LED rederror Electrical specifications Operating voltage10 ... 30 V DC No-load supply current≤ 50 mA Input/Output Input/output type1 synchronization connection, bidirectional 0 Level0 ... 1 V 1 Level4 V ... UB Input impedance> 12 kΩ Output rated operating current< 12 mA Pulse length≥ 200 µs Pulse interval≥ 2 ms Synchronization frequency Common mode operation≤ 20 Hz Multiplex operation≤ 20/n Hz, n = number of sensors n ≤ 10 (factory setting: 5 ) Input Input type1 program input Level (switch point 1)0 ... 1 V Level (switch point 2)4 V ... UB Input impedance> 10 kΩ Pulse length2 ... 5 s Output Output type1 switching output E5, PNP NO/NC, programmable Rated operating current200 mA , short-circuit/overload protected Voltage drop≤ 2 V Repeat accuracy≤ 0.1 % of full-scale value Switching frequency≤ 2.8 Hz Range hysteresisprogrammable , preset to 1 mm Temperature influence< 1.5 % of full-scale value Compliance with standards and directives Standard conformity StandardsEN 60947-5-2:2007+A1:2012 IEC 60947-5-2:2007 + A1:2012 Approvals and certificates CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 60 °C (-13 ... 140 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Connection typecable PUR , 5 m Core cross-section5 x 0.5 mm2 Degree of protectionIP68 / IP69K Material Housingstainless steel 1.4404 / AISI 316L LED window: VMQ Elastosil LR 3003/Shore 50 A TransducerStainless steel 1.4435 / AISI 316L Mass425 g Factory settings Outputnear switch point: 240 mm far switch point: 3000 mm output function: Window mode output behavior: NO contact General information Supplementary informationSwitch settings of the external programming adapter: "output load": pull-down "output logic": inv Classifications SystemClasscode ECLASS 11.027272803 ECLASS 10.0.127272803 ECLASS 9.027272803 ECLASS 8.027272803 ECLASS 5.127272803 ETIM 8.0EC001849 ETIM 7.0EC001849 ETIM 6.0EC001849 ETIM 5.0EC001849 UNSPSC 12.141111960 Datasheet excerpt: Technical data of  UMC3000-30H-E5-5M Product Description Single head system General specifications Sensing range200 ... 3000 mm Adjustment range240 ... 3000 mm Dead band0 ... 200 mm Standard target plate100 mm x 100 mm Transducer frequency100 kHz Response delay≤ 200 ms Indicators/operating means LED greenOperating display LED yellowswitching state LED rederror Electrical specifications Operating voltage10 ... 30 V DC No-load supply current≤ 50 mA Input/Output Input/output type1 synchronization connection, bidirectional 0 Level0 ... 1 V 1 Level4 V ... UB Input impedance> 12 kΩ Output rated operating current< 12 mA Pulse length≥ 200 µs Pulse interval≥ 2 ms Synchronization frequency Common mode operation≤ 20 Hz Multiplex operation≤ 20/n Hz, n = number of sensors n ≤ 10 (factory setting: 5 ) Input Input type1 program input Level (switch point 1)0 ... 1 V Level (switch point 2)4 V ... UB Input impedance> 10 kΩ Pulse length2 ... 5 s Output Output type1 switching output E5, PNP NO/NC, programmable Rated operating current200 mA , short-circuit/overload protected Voltage drop≤ 2 V Repeat accuracy≤ 0.1 % of full-scale value Switching frequency≤ 2.8 Hz Range hysteresisprogrammable , preset to 1 mm Temperature influence< 1.5 % of full-scale value Compliance with standards and directives Standard conformity StandardsEN 60947-5-2:2007+A1:2012 IEC 60947-5-2:2007 + A1:2012 Approvals and certificates CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature-25 ... 60 °C (-13 ... 140 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Connection typecable PUR , 5 m Core cross-section5 x 0.5 mm2 Degree of protectionIP68 / IP69K Material Housingstainless steel 1.4404 / AISI 316L LED window: VMQ Elastosil LR 3003/Shore 50 A TransducerStainless steel 1.4435 / AISI 316L Mass425 g Factory settings Outputnear switch point: 240 mm far switch point: 3000 mm output function: Window mode output behavior: NO contact General information Supplementary informationSwitch settings of the external programming adapter: "output load": pull-down "output logic": inv Classifications SystemClasscode ECLASS 11.027272803 ECLASS 10.0.127272803 ECLASS 9.027272803 ECLASS 8.027272803 ECLASS 5.127272803 ETIM 8.0EC001849 ETIM 7.0EC001849 ETIM 6.0EC001849 ETIM 5.0EC001849 UNSPSC 12.141111960
