WS-UCC4000-F406-B15-B41-01-02 PEPPERL+FUCHS - Part number: 70124843

PEPPERL+FUCHS

confronta

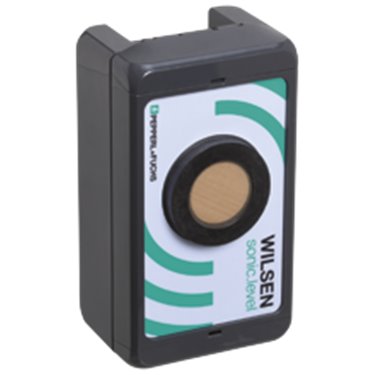

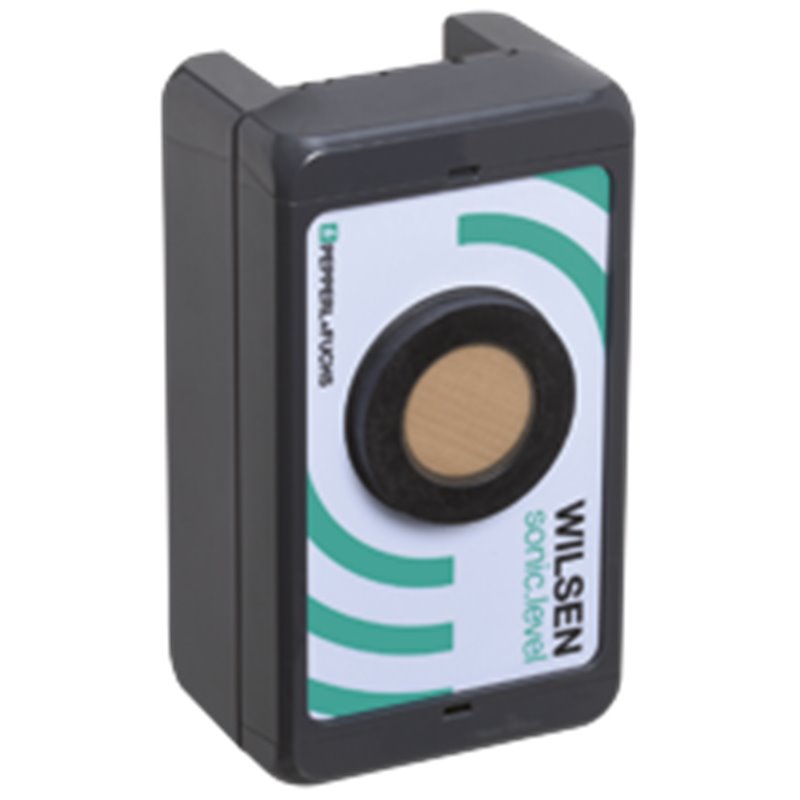

Wireless ultrasonic sensor WS-UCC4000-F406-B15-B41-01-02 WS-UCC4000-F406-B15-B41-01-02 Battery operated Data transfer via LoRaWAN Bluetooth interface for commissioning, parameterization and diagnostics

MPNs 70124843, PEP70124843, WS-UCC4000-F406-B15-B41-01-02

Codice HS 90318000

Peso 0.6 kg

L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.

Venduto da PLC-CITY® e spedito dall'Italia

Pagamenti sicuri

e molti altri

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

12 Mesi garanzia

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

Reso disponibile entro 30 giorni

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Disponibile su richiesta

Richiedi il tuo servizio tecnico personalizzato

Affidati al nostro team di tecnici esperti per una gamma di servizi personalizzati: riparazione, programmazione, manutenzione e molto altro.

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of WS-UCC4000-F406-B15-B41-01-02 Product Description Wireless ultrasonic sensor with LoRaWAN interface Main sensor Detection typeultrasonic Sensing range250 ... 4000 mm Dead band0 ... 250 mm Resolution16 mm Accuracy± 3 % of full-scale value over the entire temperature range Measurement frequency5 min ... 24 h Integrated sensor technology GPS sensorfor geo-positioning Acquisition interval30 min ... 24 h Temperature sensor Resolution0.5 °C Accuracy± 2 °C Electrical specifications Power supplyhigh capacity lithium battery 3.6 V , 13000 mAh battery lifetime 5 years under Central European environmental conditions (- 25 °C .... + 70 °C) 3 measurements/day, 1 geolocation/day with 1 wireless transmission/day with sufficient network coverage. Interface 1 Interface typeBluetooth 5.0 LE Transmitter radiated power+ 8 dBm Frequency range2402 ... 2480 MHz Interface 2 Interface typeLoRaWAN SpecificationLoRaWAN interface specification V1.0.3 Device typeLoRaWAN class A device Transmitter frequency868 MHz Transmitter radiated power+ 8 dBm Frequency range863 ... 870 MHz (Europe) Transfer frequency5 min ... 24 h Directive conformity Electromagnetic compatibility Directive 2014/30/EUEN 301 489-1 V2.2.0:2017 EN 301 489-3 V2.1.1:2019 EN 301 489-17 V3.2.0:2017 EN 301 489-19 V2.1.0:2017 Radio and telecommunication terminal equipment Directive 2014/53/EUEN 300 220-2 V3.1.1:2017 EN 300 328 V2.1.1:2016 EN 303 413 V1.1.1:2017 RoHS Directive 2011/65/EU (RoHS)EN 50581:2012-09 Conformity Mech. capacityEN 60947-5-2:2007 + A1:2012 IEC 60947-5-2:2007 + A1:2012 Shock resistanceEN 60947-5-2:2007 + A1:2012 IEC 60947-5-2:2007 + A1:2012 Vibration resistanceEN 60947-5-2:2007 + A1:2012 IEC 60947-5-2:2007 + A1:2012 Climatic conditionsEN 60947-5-2:2007 + A1:2012 IEC 60947-5-2:2007 + A1:2012 Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Degree of protectionIP66 / IP67 Material HousingPC (UL94-V0) TransducerPTFE coated housing: PBT Mass600 g Factory settings Beam widthwide Transfer frequency24 h Measurement frequency24 h Classifications SystemClasscode ECLASS 11.027272803 ECLASS 10.0.127272803 ECLASS 9.027272803 ECLASS 8.027272803 ECLASS 5.127272803 ETIM 8.0EC001849 ETIM 7.0EC001849 ETIM 6.0EC001849 ETIM 5.0EC001849 UNSPSC 12.141111960 Datasheet excerpt: Technical data of WS-UCC4000-F406-B15-B41-01-02 Product Description Wireless ultrasonic sensor with LoRaWAN interface Main sensor Detection typeultrasonic Sensing range250 ... 4000 mm Dead band0 ... 250 mm Resolution16 mm Accuracy± 3 % of full-scale value over the entire temperature range Measurement frequency5 min ... 24 h Integrated sensor technology GPS sensorfor geo-positioning Acquisition interval30 min ... 24 h Temperature sensor Resolution0.5 °C Accuracy± 2 °C Electrical specifications Power supplyhigh capacity lithium battery 3.6 V , 13000 mAh battery lifetime 5 years under Central European environmental conditions (- 25 °C .... + 70 °C) 3 measurements/day, 1 geolocation/day with 1 wireless transmission/day with sufficient network coverage. Interface 1 Interface typeBluetooth 5.0 LE Transmitter radiated power+ 8 dBm Frequency range2402 ... 2480 MHz Interface 2 Interface typeLoRaWAN SpecificationLoRaWAN interface specification V1.0.3 Device typeLoRaWAN class A device Transmitter frequency868 MHz Transmitter radiated power+ 8 dBm Frequency range863 ... 870 MHz (Europe) Transfer frequency5 min ... 24 h Directive conformity Electromagnetic compatibility Directive 2014/30/EUEN 301 489-1 V2.2.0:2017 EN 301 489-3 V2.1.1:2019 EN 301 489-17 V3.2.0:2017 EN 301 489-19 V2.1.0:2017 Radio and telecommunication terminal equipment Directive 2014/53/EUEN 300 220-2 V3.1.1:2017 EN 300 328 V2.1.1:2016 EN 303 413 V1.1.1:2017 RoHS Directive 2011/65/EU (RoHS)EN 50581:2012-09 Conformity Mech. capacityEN 60947-5-2:2007 + A1:2012 IEC 60947-5-2:2007 + A1:2012 Shock resistanceEN 60947-5-2:2007 + A1:2012 IEC 60947-5-2:2007 + A1:2012 Vibration resistanceEN 60947-5-2:2007 + A1:2012 IEC 60947-5-2:2007 + A1:2012 Climatic conditionsEN 60947-5-2:2007 + A1:2012 IEC 60947-5-2:2007 + A1:2012 Ambient conditions Ambient temperature-25 ... 70 °C (-13 ... 158 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Degree of protectionIP66 / IP67 Material HousingPC (UL94-V0) TransducerPTFE coated housing: PBT Mass600 g Factory settings Beam widthwide Transfer frequency24 h Measurement frequency24 h Classifications SystemClasscode ECLASS 11.027272803 ECLASS 10.0.127272803 ECLASS 9.027272803 ECLASS 8.027272803 ECLASS 5.127272803 ETIM 8.0EC001849 ETIM 7.0EC001849 ETIM 6.0EC001849 ETIM 5.0EC001849 UNSPSC 12.141111960
