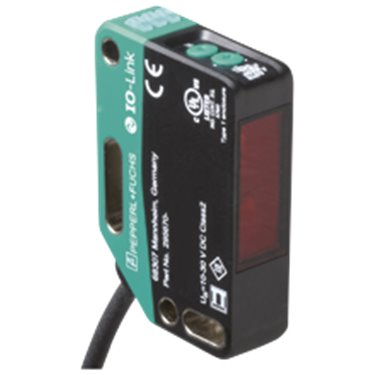

OMT300-R201-2EP-IO PEPPERL+FUCHS - Part number: 295670-100183

Datasheet excerpt: Technical data of  OMT300-R201-2EP-IO Product Description Distance sensor General specifications Measurement range100 ... 300 mm Reference targetstandard white, 100 mm x 100 mm Light sourceLED Light typemodulated visible red light LED risk group labellingexempt group Angle deviationmax. +/- 1.5 ° Diameter of the light spot8 mm at a distance of 300 mm Opening angle1.8 ° Ambient light limitEN 60947-5-2 : 45000 Lux Resolution0.1 mm Functional safety related parameters MTTFd600 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green:constantly on - power onflashing (4Hz) - short circuitflashing with short break (1 Hz) - IO-Link mode Function indicatorLED yellow:constantly on - switch output activeconstantly off - switch output inactive Control elementsTeach-In key Control elements5-step rotary switch for operating modes selection Electrical specifications Operating voltage10 ... 30 V DC Ripplemax. 10 % No-load supply current< 25 mA at 24 V supply voltage Protection classIII Interface Interface typeIO-Link ( via C/Q = pin 4 ) IO-Link revision1.1 Device profileIdentification and diagnosisSmart Sensor type 0/type 3.3 Device ID0x111914 (1120532) Transfer rateCOM2 (38.4 kBit/s) Min. cycle time3 ms Process data widthProcess data input 4 byteProcess data output 2 bits SIO mode supportyes Compatible master port typeA Output Switching typeThe default setting is: C/Q - BK: NPN normally open, PNP normally closed, IO-Link Q2 - WH: NPN normally open, PNP normally closed Signal output2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected Switching voltagemax. 30 V DC Switching currentmax. 100 mA , resistive load Usage categoryDC-12 and DC-13 Voltage drop≤ 1.5 V DC Response time2 ms , see table 1 Conformity Communication interfaceIEC 61131-9 Product standardEN 60947-5-2 Measurement accuracy Temperature drift0.05 %/K Warm up time5 min Repeat accuracy< 0.5 % , see table 1 Linearity error0.5 % Approvals and certificates EAC conformityTR CU 020/2011 UL approvalE87056 , cULus Listed , class 2 power supply , type rating 1 CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature10 ... 60 °C (50 ... 140 °F) Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Housing width15 mm Housing height61.7 mm Housing depth41.7 mm Degree of protectionIP67 / IP69 / IP69K Connection2 m fixed cable Material HousingPC (Polycarbonate) Optical facePMMA Mass73 g Cable length2 m Classifications SystemClasscode ECLASS 11.027270801 ECLASS 10.0.127270801 ECLASS 9.027270801 ECLASS 8.027270801 ECLASS 5.127270801 ETIM 8.0EC001825 ETIM 7.0EC001825 ETIM 6.0EC001825 ETIM 5.0EC001825 UNSPSC 12.141111613 Datasheet excerpt: Technical data of  OMT300-R201-2EP-IO Product Description Distance sensor General specifications Measurement range100 ... 300 mm Reference targetstandard white, 100 mm x 100 mm Light sourceLED Light typemodulated visible red light LED risk group labellingexempt group Angle deviationmax. +/- 1.5 ° Diameter of the light spot8 mm at a distance of 300 mm Opening angle1.8 ° Ambient light limitEN 60947-5-2 : 45000 Lux Resolution0.1 mm Functional safety related parameters MTTFd600 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green:constantly on - power onflashing (4Hz) - short circuitflashing with short break (1 Hz) - IO-Link mode Function indicatorLED yellow:constantly on - switch output activeconstantly off - switch output inactive Control elementsTeach-In key Control elements5-step rotary switch for operating modes selection Electrical specifications Operating voltage10 ... 30 V DC Ripplemax. 10 % No-load supply current< 25 mA at 24 V supply voltage Protection classIII Interface Interface typeIO-Link ( via C/Q = pin 4 ) IO-Link revision1.1 Device profileIdentification and diagnosisSmart Sensor type 0/type 3.3 Device ID0x111914 (1120532) Transfer rateCOM2 (38.4 kBit/s) Min. cycle time3 ms Process data widthProcess data input 4 byteProcess data output 2 bits SIO mode supportyes Compatible master port typeA Output Switching typeThe default setting is: C/Q - BK: NPN normally open, PNP normally closed, IO-Link Q2 - WH: NPN normally open, PNP normally closed Signal output2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected Switching voltagemax. 30 V DC Switching currentmax. 100 mA , resistive load Usage categoryDC-12 and DC-13 Voltage drop≤ 1.5 V DC Response time2 ms , see table 1 Conformity Communication interfaceIEC 61131-9 Product standardEN 60947-5-2 Measurement accuracy Temperature drift0.05 %/K Warm up time5 min Repeat accuracy< 0.5 % , see table 1 Linearity error0.5 % Approvals and certificates EAC conformityTR CU 020/2011 UL approvalE87056 , cULus Listed , class 2 power supply , type rating 1 CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Ambient temperature10 ... 60 °C (50 ... 140 °F) Storage temperature-40 ... 70 °C (-40 ... 158 °F) Mechanical specifications Housing width15 mm Housing height61.7 mm Housing depth41.7 mm Degree of protectionIP67 / IP69 / IP69K Connection2 m fixed cable Material HousingPC (Polycarbonate) Optical facePMMA Mass73 g Cable length2 m Classifications SystemClasscode ECLASS 11.027270801 ECLASS 10.0.127270801 ECLASS 9.027270801 ECLASS 8.027270801 ECLASS 5.127270801 ETIM 8.0EC001825 ETIM 7.0EC001825 ETIM 6.0EC001825 ETIM 5.0EC001825 UNSPSC 12.141111613
