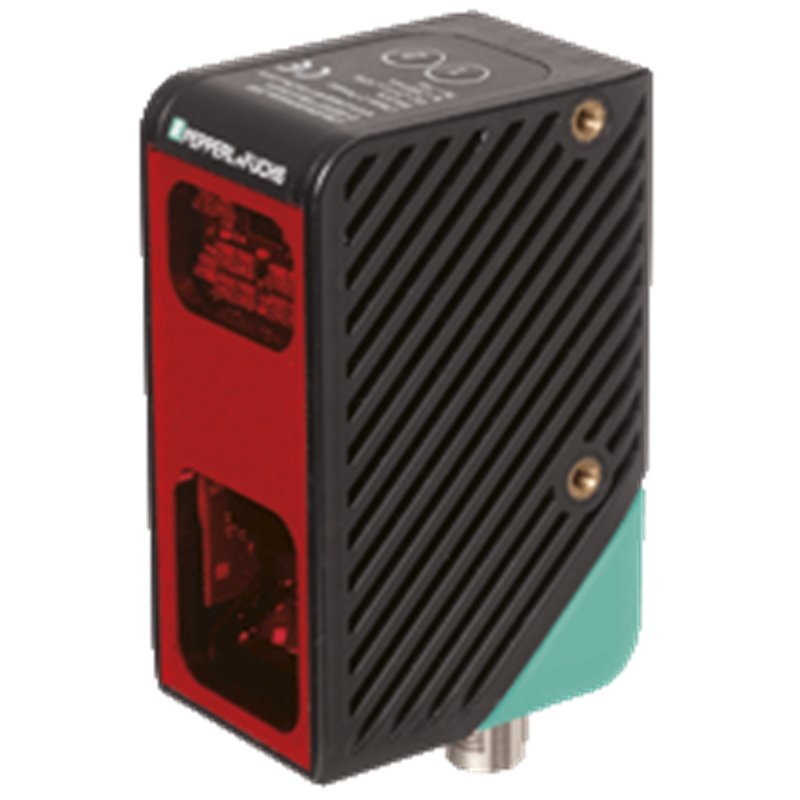

VLD700-F280-2E2-1000 PEPPERL+FUCHS - Part number: 284586-100002

Datasheet excerpt: Technical data of  VLD700-F280-2E2-1000 Product Description Laser light sensor for field monitoring; Resolution: 752 x 480 pixel; Measuring range: X = 40 ... 310 mm, Z = 60 ... 700 mm; Scan rate: 30 s-1; 2 digital outputs; RS-485 interface General specifications Measurement rangeX = 40 ... 310 mm ; Z = 60 ... 700 mm Light sourcelaser diode Light typered laser + Integrated LED lightning red 650 nm Laser nominal ratings NoteVISIBLE LASER RADIATION , DO NOT STARE INTO BEAM DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS Laser class1 Wave lengthMeasuring laser: 660 nm Pulse lengthMeasuring laser: 2 ms Maximum optical power outputMeasuring laser: 15 mW Laser monitoringThe safety system switches off the laser when the laser current is too high Object size> 0.1 mm at min. read distance Scan rate30 s-1 Functional safety related parameters MTTFd20 a Mission Time (TM)10 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green Diagnostics indicatorLED yellow / red Function indicatorTrigger: LED yellow ; object in evaluation range : LED red / green Control elements2 push-buttons Electrical specifications Operating voltage24 V ± 20 % , PELV No-load supply currentmax. 250 mA Power consumptionmax. 6 W , Outputs without load Interface Interface typeRS 485 interface Physical Switchable terminal resistor Protocolbinary code Transfer rate38400 ... 230400 Bit/s Input Input voltage24 V Number/TypeExternal triggering + 1 Input Switching thresholdlow: < 2.5 V, high: > 8 V Output Number/Type2 digital outputs Switching typePNP Switching voltage24 V Switching current150 mA each output Compliance with standards and directives Standard conformity Noise immunityEN 61000-6-2:2005 Emitted interferenceEN 61000-6-4:2007/A1:2011 Degree of protectionEN 60529 Shock and impact resistanceEN 60068-2-27:2009 Laser classIEC 60825-1:2007 Approvals and certificates CCC approvalCCC approval / marking not required for products rated ≤36 V ApprovalsCE Ambient conditions Operating temperature-20 ... 45 °C (-4 ... 113 °F) ,   (noncondensing; prevent icing on the lens!) Storage temperature-20 ... 70 °C (-4 ... 158 °F) Mechanical specifications Housing width38 mm Housing height85 mm Housing depth55 mm Degree of protectionIP67 Connection8-pin, M12 x 1 connector ( supply + RS485 + Inputs/Outputs ) ; can be rotated 90° ; Grounding : Grounding clip for PCV system Material HousingPC/ABS Optical facePlastic pane Mass125 g Tightening torque, fastening screwsmax. 2 Nm General information NoteSecurity Instructions: - Read the operating instructions before attempting commissioning - Installation, connection and adjustments should only be undertaken by specialist personnel - Not a safety component in accordance with the EU Machinery Directive Classifications SystemClasscode ECLASS 11.027270801 ECLASS 10.0.127270801 ECLASS 9.027270801 ECLASS 8.027270801 ECLASS 5.127270801 ETIM 8.0EC001825 ETIM 7.0EC001825 ETIM 6.0EC001825 ETIM 5.0EC001825 UNSPSC 12.141111613 Datasheet excerpt: Technical data of  VLD700-F280-2E2-1000 Product Description Laser light sensor for field monitoring; Resolution: 752 x 480 pixel; Measuring range: X = 40 ... 310 mm, Z = 60 ... 700 mm; Scan rate: 30 s-1; 2 digital outputs; RS-485 interface General specifications Measurement rangeX = 40 ... 310 mm ; Z = 60 ... 700 mm Light sourcelaser diode Light typered laser + Integrated LED lightning red 650 nm Laser nominal ratings NoteVISIBLE LASER RADIATION , DO NOT STARE INTO BEAM DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS Laser class1 Wave lengthMeasuring laser: 660 nm Pulse lengthMeasuring laser: 2 ms Maximum optical power outputMeasuring laser: 15 mW Laser monitoringThe safety system switches off the laser when the laser current is too high Object size> 0.1 mm at min. read distance Scan rate30 s-1 Functional safety related parameters MTTFd20 a Mission Time (TM)10 a Diagnostic Coverage (DC)0 % Indicators/operating means Operation indicatorLED green Diagnostics indicatorLED yellow / red Function indicatorTrigger: LED yellow ; object in evaluation range : LED red / green Control elements2 push-buttons Electrical specifications Operating voltage24 V ± 20 % , PELV No-load supply currentmax. 250 mA Power consumptionmax. 6 W , Outputs without load Interface Interface typeRS 485 interface Physical Switchable terminal resistor Protocolbinary code Transfer rate38400 ... 230400 Bit/s Input Input voltage24 V Number/TypeExternal triggering + 1 Input Switching thresholdlow: < 2.5 V, high: > 8 V Output Number/Type2 digital outputs Switching typePNP Switching voltage24 V Switching current150 mA each output Compliance with standards and directives Standard conformity Noise immunityEN 61000-6-2:2005 Emitted interferenceEN 61000-6-4:2007/A1:2011 Degree of protectionEN 60529 Shock and impact resistanceEN 60068-2-27:2009 Laser classIEC 60825-1:2007 Approvals and certificates CCC approvalCCC approval / marking not required for products rated ≤36 V ApprovalsCE Ambient conditions Operating temperature-20 ... 45 °C (-4 ... 113 °F) ,   (noncondensing; prevent icing on the lens!) Storage temperature-20 ... 70 °C (-4 ... 158 °F) Mechanical specifications Housing width38 mm Housing height85 mm Housing depth55 mm Degree of protectionIP67 Connection8-pin, M12 x 1 connector ( supply + RS485 + Inputs/Outputs ) ; can be rotated 90° ; Grounding : Grounding clip for PCV system Material HousingPC/ABS Optical facePlastic pane Mass125 g Tightening torque, fastening screwsmax. 2 Nm General information NoteSecurity Instructions: - Read the operating instructions before attempting commissioning - Installation, connection and adjustments should only be undertaken by specialist personnel - Not a safety component in accordance with the EU Machinery Directive Classifications SystemClasscode ECLASS 11.027270801 ECLASS 10.0.127270801 ECLASS 9.027270801 ECLASS 8.027270801 ECLASS 5.127270801 ETIM 8.0EC001825 ETIM 7.0EC001825 ETIM 6.0EC001825 ETIM 5.0EC001825 UNSPSC 12.141111613
