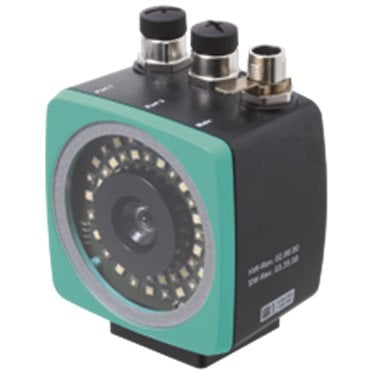

PGV100-F200A-B25-V1D PEPPERL+FUCHS - Part number: 285693-100006

Datasheet excerpt: Technical data of  PGV100-F200A-B25-V1D Product Description Read head for incident light positioning system General specifications Passage speed≤ 8 m/s Measuring rangemax. 10000 m Light typeIntegrated LED lightning (white/blue) Scan rate25 s-1 Latency60 ms Read distance100 mm Depth of focus± 20 mm Reading field120 mm x 80 mm Ambient light limit100000 Lux Accuracy± 0.2 mm Nominal ratings Camera TypeCMOS , Global shutter Processor Clock pulse frequency600 MHz Speed of computation4800 MIPS Functional safety related parameters MTTFd97 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means LED indication7 LEDs (communication, alignment aid, status information) Electrical specifications Operating voltage15 ... 30 V DC , PELV No-load supply currentmax. 400 mA Power consumption6 W Interface Interface type100 BASE-TX ProtocolEtherNet/IP     Transfer rate    100 MBit/s       Interface 2 Interface typeUSB Service Input Input type1 funtion input0-level: -UBor unwired1-level: +8 V ... +UB , programmable Input impedance≥ 27 kΩ Output Output type1 to 3 switch outputs , PNP , programmable , short-circuit protected Switching voltageOperating voltage Switching current150 mA each output Conformity Shock resistanceEN 60068-2-27:2009 Vibration resistanceEN 60068-2-6:2008 Emitted interferenceEN 61000-6-4:2007+A1:2011 Noise immunityEN 61000-6-2:2005 Photobiological safetyrisk group 1 according EN 62471:2008 Approvals and certificates CE conformityCE UL approvalcULus Listed, General Purpose, Class 2 Power Source, Type 1 enclosure CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Operating temperature0 ... 60 °C (32 ... 140 °F) ,   -20 ... 60 °C (-4 ... 140 °F) (noncondensing; prevent icing on the lens!) Storage temperature-20 ... 85 °C (-4 ... 185 °F) Relative humidity90 % , noncondensing Mechanical specifications Connection type8-pin, M12x1 connector, standard (supply+IO) 4-pin, M12x1 socket, D-coded (LAN) 4-pin, M12x1 socket, D-coded (LAN) Housing width70 mm Housing height70 mm Housing depth50 mm Degree of protectionIP67 Material HousingPC/ABS Mass200 g Factory settings X resolution (protocol)1 mm Y resolution (protocol)1 mm Angle resolution1 ° ExtrapolationOn Classifications SystemClasscode ECLASS 11.027310101 ECLASS 10.0.127310101 ECLASS 9.027310101 ECLASS 8.027310101 ECLASS 5.127310101 ETIM 8.0EC001852 ETIM 7.0EC001852 ETIM 6.0EC001852 ETIM 5.0EC001852 UNSPSC 12.143211711 Datasheet excerpt: Technical data of  PGV100-F200A-B25-V1D Product Description Read head for incident light positioning system General specifications Passage speed≤ 8 m/s Measuring rangemax. 10000 m Light typeIntegrated LED lightning (white/blue) Scan rate25 s-1 Latency60 ms Read distance100 mm Depth of focus± 20 mm Reading field120 mm x 80 mm Ambient light limit100000 Lux Accuracy± 0.2 mm Nominal ratings Camera TypeCMOS , Global shutter Processor Clock pulse frequency600 MHz Speed of computation4800 MIPS Functional safety related parameters MTTFd97 a Mission Time (TM)20 a Diagnostic Coverage (DC)0 % Indicators/operating means LED indication7 LEDs (communication, alignment aid, status information) Electrical specifications Operating voltage15 ... 30 V DC , PELV No-load supply currentmax. 400 mA Power consumption6 W Interface Interface type100 BASE-TX ProtocolEtherNet/IP     Transfer rate    100 MBit/s       Interface 2 Interface typeUSB Service Input Input type1 funtion input0-level: -UBor unwired1-level: +8 V ... +UB , programmable Input impedance≥ 27 kΩ Output Output type1 to 3 switch outputs , PNP , programmable , short-circuit protected Switching voltageOperating voltage Switching current150 mA each output Conformity Shock resistanceEN 60068-2-27:2009 Vibration resistanceEN 60068-2-6:2008 Emitted interferenceEN 61000-6-4:2007+A1:2011 Noise immunityEN 61000-6-2:2005 Photobiological safetyrisk group 1 according EN 62471:2008 Approvals and certificates CE conformityCE UL approvalcULus Listed, General Purpose, Class 2 Power Source, Type 1 enclosure CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Operating temperature0 ... 60 °C (32 ... 140 °F) ,   -20 ... 60 °C (-4 ... 140 °F) (noncondensing; prevent icing on the lens!) Storage temperature-20 ... 85 °C (-4 ... 185 °F) Relative humidity90 % , noncondensing Mechanical specifications Connection type8-pin, M12x1 connector, standard (supply+IO) 4-pin, M12x1 socket, D-coded (LAN) 4-pin, M12x1 socket, D-coded (LAN) Housing width70 mm Housing height70 mm Housing depth50 mm Degree of protectionIP67 Material HousingPC/ABS Mass200 g Factory settings X resolution (protocol)1 mm Y resolution (protocol)1 mm Angle resolution1 ° ExtrapolationOn Classifications SystemClasscode ECLASS 11.027310101 ECLASS 10.0.127310101 ECLASS 9.027310101 ECLASS 8.027310101 ECLASS 5.127310101 ETIM 8.0EC001852 ETIM 7.0EC001852 ETIM 6.0EC001852 ETIM 5.0EC001852 UNSPSC 12.143211711
