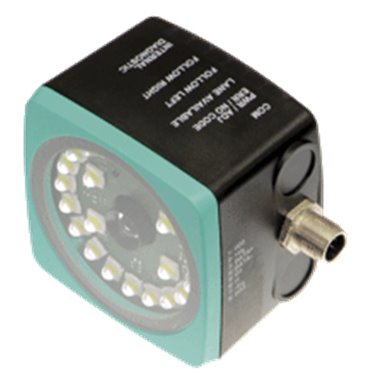

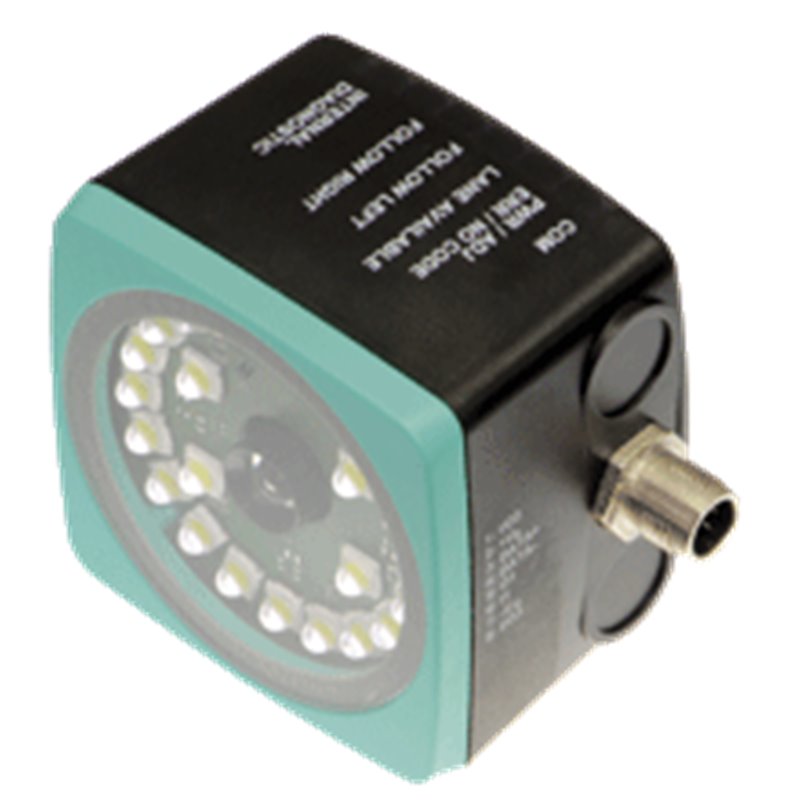

PGV150I-F200A-R4-V19 PEPPERL+FUCHS - Part number: 277208

Datasheet excerpt: Technical data of  PGV150I-F200A-R4-V19 Product Description Read head for incident light positioning system General specifications Passage speed≤ 8 m/s Measuring rangemax. 10000 m Light typeIntegrated LED lightning , infrared Read distance150 mm Reading field170 mm x 105 mm Resolution± 0.2 mm   Functional safety related parameters MTTFd86 a Mission Time (TM)43 a Diagnostic Coverage (DC)0 % Indicators/operating means LED indicator7 LEDs (communication, alignment aid, status information) Electrical specifications Operating voltage15 ... 30 V DC , PELV No-load supply currentmax. 200 mA Power consumption3 W Interface Interface typeRS 485 interface Data output codebinary code Transfer rate38400 ... 230400 Bit/s TerminationSwitchable terminal resistor Input Input type1 to 3 functional inputs , programmable Input impedance≥ 27 kΩ Output Output type1 to 3 switch outputs , PNP , programmable , short-circuit protected Switching voltageOperating voltage Switching current150 mA each output Standard conformity Emitted interferenceEN 61000-6-4:2007+A1:2011     Noise immunityEN 61000-6-2:2005     Shock resistanceEN 60068-2-27:2009 Vibration resistanceEN 60068-2-6:2008 Approvals and certificates UL approvalcULus Listed, General Purpose, Class 2 Power Source, Type 1 enclosure CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Operating temperature0 ... 60 °C (32 ... 140 °F) ,   -20 ... 60 °C (-4 ... 140 °F) (noncondensing; prevent icing on the lens!) Storage temperature-20 ... 85 °C (-4 ... 185 °F) Relative humidity90 % , noncondensing Mechanical specifications Connection type8-pin, M12 x 1 connector Housing width70 mm Housing height70 mm Degree of protectionIP67 Material HousingPC/ABS Mass160 g Classifications SystemClasscode ECLASS 11.027310101 ECLASS 10.0.127310101 ECLASS 9.027310101 ECLASS 8.027310101 ECLASS 5.127310101 ETIM 8.0EC001852 ETIM 7.0EC001852 ETIM 6.0EC001852 ETIM 5.0EC001852 UNSPSC 12.143211711 Datasheet excerpt: Technical data of  PGV150I-F200A-R4-V19 Product Description Read head for incident light positioning system General specifications Passage speed≤ 8 m/s Measuring rangemax. 10000 m Light typeIntegrated LED lightning , infrared Read distance150 mm Reading field170 mm x 105 mm Resolution± 0.2 mm   Functional safety related parameters MTTFd86 a Mission Time (TM)43 a Diagnostic Coverage (DC)0 % Indicators/operating means LED indicator7 LEDs (communication, alignment aid, status information) Electrical specifications Operating voltage15 ... 30 V DC , PELV No-load supply currentmax. 200 mA Power consumption3 W Interface Interface typeRS 485 interface Data output codebinary code Transfer rate38400 ... 230400 Bit/s TerminationSwitchable terminal resistor Input Input type1 to 3 functional inputs , programmable Input impedance≥ 27 kΩ Output Output type1 to 3 switch outputs , PNP , programmable , short-circuit protected Switching voltageOperating voltage Switching current150 mA each output Standard conformity Emitted interferenceEN 61000-6-4:2007+A1:2011     Noise immunityEN 61000-6-2:2005     Shock resistanceEN 60068-2-27:2009 Vibration resistanceEN 60068-2-6:2008 Approvals and certificates UL approvalcULus Listed, General Purpose, Class 2 Power Source, Type 1 enclosure CCC approvalCCC approval / marking not required for products rated ≤36 V Ambient conditions Operating temperature0 ... 60 °C (32 ... 140 °F) ,   -20 ... 60 °C (-4 ... 140 °F) (noncondensing; prevent icing on the lens!) Storage temperature-20 ... 85 °C (-4 ... 185 °F) Relative humidity90 % , noncondensing Mechanical specifications Connection type8-pin, M12 x 1 connector Housing width70 mm Housing height70 mm Degree of protectionIP67 Material HousingPC/ABS Mass160 g Classifications SystemClasscode ECLASS 11.027310101 ECLASS 10.0.127310101 ECLASS 9.027310101 ECLASS 8.027310101 ECLASS 5.127310101 ETIM 8.0EC001852 ETIM 7.0EC001852 ETIM 6.0EC001852 ETIM 5.0EC001852 UNSPSC 12.143211711
