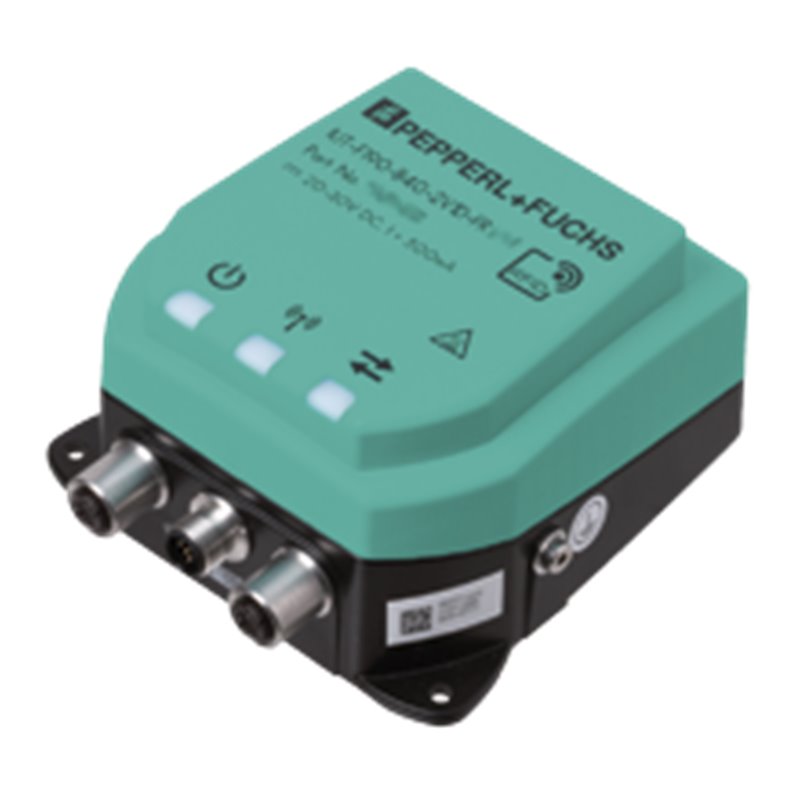

IUT-F190-B40-2V1D-FR2-02 PEPPERL+FUCHS - Part number: 325915

Datasheet excerpt: Technical data of  IUT-F190-B40-2V1D-FR2-02 Product Description UHF read/write station, USA and Canada General specifications Operating frequency902 … 928 MHz: USA, CanadaTransmission licenses for other countries on request Emitted power3 … 1250 mW EIRP adjustable Operating distancetyp. 2 m UL File NumberE468231 Functional safety related parameters MTTFd110 a Indicators/operating means LED greenPower on LED yellowRead/write operation successful LED blueTransmission mode LED Link/Trafficgreen: network connection yellow: flashes in rhythm with the transmitted data Electrical specifications Rated operating voltage20 ... 30 V DC , PELV Ripple≤ 10 % at 30 V DC Current consumption≤ 500 mA Power consumption≤ 10 W Surge protectioncategory 2 Interface 1 Physical Ethernet ProtocolHTTPEtherNet/IPPROFINET IO Transfer rate10 MBit/s or 100 MBit/s Interface 2 Physical Ethernet ProtocolHTTPEtherNet/IPPROFINET IO Transfer rate10 MBit/s or 100 MBit/s Standard conformity Electromagnetic compatibilityEN 301489-1 EN 301489-3 Degree of protectionEN 60529 SafetyEN 62368-1 RFIDISO/IEC 18000-63 Approvals and certificates FCC approvalThis device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.Caution:Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. IC approvalThis device complies with Industry Canada licence-exempt RSS standard(s) and with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause interference, and(2) this device must accept any interference, including interference that may cause undesired operation of the device.Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :(1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Radio approvalUSA: Contains FCC IREIURF190Canada: Contains 7037A-IURF190 Ambient conditions ClassificationEnvironmental condition A (controlled environment) Ambient temperature-20 ... 70 °C (-4 ... 158 °F) (Operation with nontransmission periods, adjustable) -20 ... 50 °C (-4 ... 122 °F) (Continuous transmission mode) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Pollution degree2 Mechanical specifications Housing length114 mm Housing width112 mm Housing height63 mm Degree of protectionIP67 ConnectionPower supply: M12 connector Protective earth: M4 earthing screw Ethernet: M12 plug connection Material HousingPA 6.6 Basediecast aluminum Mass820 g Classifications SystemClasscode ECLASS 11.027280401 ECLASS 10.0.127280401 ECLASS 9.027280401 ECLASS 8.027280401 ECLASS 5.127280401 ETIM 8.0EC002998 ETIM 7.0EC002998 ETIM 6.0EC002998 ETIM 5.0EC002998 UNSPSC 12.143211710 Datasheet excerpt: Technical data of  IUT-F190-B40-2V1D-FR2-02 Product Description UHF read/write station, USA and Canada General specifications Operating frequency902 … 928 MHz: USA, CanadaTransmission licenses for other countries on request Emitted power3 … 1250 mW EIRP adjustable Operating distancetyp. 2 m UL File NumberE468231 Functional safety related parameters MTTFd110 a Indicators/operating means LED greenPower on LED yellowRead/write operation successful LED blueTransmission mode LED Link/Trafficgreen: network connection yellow: flashes in rhythm with the transmitted data Electrical specifications Rated operating voltage20 ... 30 V DC , PELV Ripple≤ 10 % at 30 V DC Current consumption≤ 500 mA Power consumption≤ 10 W Surge protectioncategory 2 Interface 1 Physical Ethernet ProtocolHTTPEtherNet/IPPROFINET IO Transfer rate10 MBit/s or 100 MBit/s Interface 2 Physical Ethernet ProtocolHTTPEtherNet/IPPROFINET IO Transfer rate10 MBit/s or 100 MBit/s Standard conformity Electromagnetic compatibilityEN 301489-1 EN 301489-3 Degree of protectionEN 60529 SafetyEN 62368-1 RFIDISO/IEC 18000-63 Approvals and certificates FCC approvalThis device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.Caution:Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. IC approvalThis device complies with Industry Canada licence-exempt RSS standard(s) and with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause interference, and(2) this device must accept any interference, including interference that may cause undesired operation of the device.Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :(1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Radio approvalUSA: Contains FCC IREIURF190Canada: Contains 7037A-IURF190 Ambient conditions ClassificationEnvironmental condition A (controlled environment) Ambient temperature-20 ... 70 °C (-4 ... 158 °F) (Operation with nontransmission periods, adjustable) -20 ... 50 °C (-4 ... 122 °F) (Continuous transmission mode) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Pollution degree2 Mechanical specifications Housing length114 mm Housing width112 mm Housing height63 mm Degree of protectionIP67 ConnectionPower supply: M12 connector Protective earth: M4 earthing screw Ethernet: M12 plug connection Material HousingPA 6.6 Basediecast aluminum Mass820 g Classifications SystemClasscode ECLASS 11.027280401 ECLASS 10.0.127280401 ECLASS 9.027280401 ECLASS 8.027280401 ECLASS 5.127280401 ETIM 8.0EC002998 ETIM 7.0EC002998 ETIM 6.0EC002998 ETIM 5.0EC002998 UNSPSC 12.143211710
