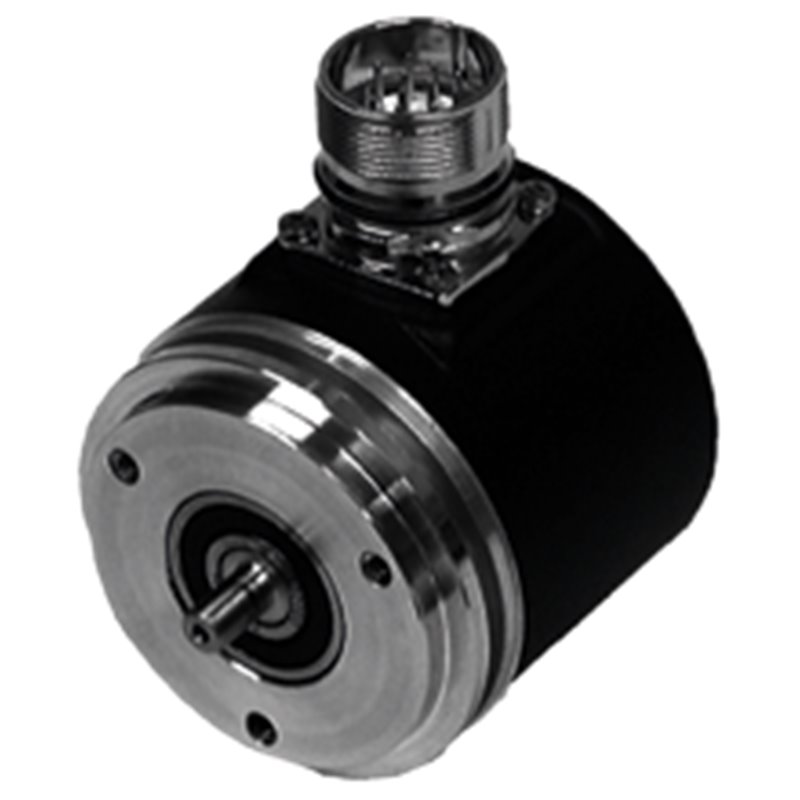

AVS58N-032KCA0G6-0016 PEPPERL+FUCHS - Part number: 268148

Datasheet excerpt: Technical data of AVS58-0 General specifications Detection type photoelectric sampling Device type Singleturn absolute encoder Functional safety related parameters MTTFd 170 a Mission Time (TM) 20 a L10h 1.9 E+11 at 6000 rpm and 20/40 N axial/radial shaft load Diagnostic Coverage (DC) 0 % Electrical specifications Operating voltage 4.5 ... 30 V DC No-load supply current max. 180 mA Time delay before availability < 250 ms Linearity ± 2 LSB at 16 Bit, ± 1 LSB at 13 Bit, ± 0,5 LSB at 12 Bit Output code Gray code, binary code Code course (counting direction) cw descending (clockwise rotation, code course descending) Interface Interface type SSI Monoflop time 20 ± 10 µs Resolution Single turn up to 16 Bit Overall resolution up to 16 Bit Transfer rate 0.1 ... 2 MBit/s Voltage drop UB - 2.5 V Standard conformity RS 422 Input 1 Input type Selection of counting direction (cw/ccw) Signal voltage High 4.5 ... 30 V Low 0 ... 2 V Input current < 6 mA Switch-on delay < 10 ms Input 2 Input type zero-set (PRESET 1) Signal voltage High 4.5 ... 30 V Low 0 ... 2 V Input current < 6 mA Switch-on delay < 10 ms Connection Connector type 9416 (M23), 12-pin, type 9416L (M23), 12-pin Cable ∅7 mm, 6 x 2 x 0.14 mm2, 1 m Standard conformity Degree of protection DIN EN 60529, IP65 (without shaft seal) ; DIN EN 60529, IP66/IP67 (with shaft seal) Climatic testing DIN EN 60068-2-3, no moisture condensation Emitted interference DIN EN 61000-6-4 Noise immunity DIN EN 61000-6-2 Shock resistance DIN EN 60068-2-27, 100 g, 6 ms Vibration resistance DIN EN 60068-2-6, 20 g, 10 ... 2000 Hz Approvals and certificates UL approval cULus Listed, General Purpose, Class 2 Power Source Ambient conditions Operating temperature -40 ... 85 °C (-40 ... 185 °F) Storage temperature -40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Material Combination 1 housing: powder coated aluminum flange: aluminum shaft: stainless steel Combination 2 (Inox) housing: stainless steel flange: stainless steel shaft: stainless steel Mass approx. 460 g (combination 1) approx. 800 g (combination 2) Rotational speed max. 12000 min -1 Moment of inertia 50 gcm2 Starting torque < 5 Ncm Shaft load Axial 40 N Radial 110 N Classifications System Classcode ECLASS 11.0 27270502 ECLASS 10.0.1 27270502 ECLASS 9.0 27270502 ECLASS 8.0 27270502 ECLASS 5.1 27270502 ETIM 8.0 EC001486 ETIM 7.0 EC001486 ETIM 6.0 EC001486 ETIM 5.0 EC001486 UNSPSC 12.1 39121527 Datasheet excerpt: Technical data of AVS58-0 General specifications Detection type photoelectric sampling Device type Singleturn absolute encoder Functional safety related parameters MTTFd 170 a Mission Time (TM) 20 a L10h 1.9 E+11 at 6000 rpm and 20/40 N axial/radial shaft load Diagnostic Coverage (DC) 0 % Electrical specifications Operating voltage 4.5 ... 30 V DC No-load supply current max. 180 mA Time delay before availability < 250 ms Linearity ± 2 LSB at 16 Bit, ± 1 LSB at 13 Bit, ± 0,5 LSB at 12 Bit Output code Gray code, binary code Code course (counting direction) cw descending (clockwise rotation, code course descending) Interface Interface type SSI Monoflop time 20 ± 10 µs Resolution Single turn up to 16 Bit Overall resolution up to 16 Bit Transfer rate 0.1 ... 2 MBit/s Voltage drop UB - 2.5 V Standard conformity RS 422 Input 1 Input type Selection of counting direction (cw/ccw) Signal voltage High 4.5 ... 30 V Low 0 ... 2 V Input current < 6 mA Switch-on delay < 10 ms Input 2 Input type zero-set (PRESET 1) Signal voltage High 4.5 ... 30 V Low 0 ... 2 V Input current < 6 mA Switch-on delay < 10 ms Connection Connector type 9416 (M23), 12-pin, type 9416L (M23), 12-pin Cable ∅7 mm, 6 x 2 x 0.14 mm2, 1 m Standard conformity Degree of protection DIN EN 60529, IP65 (without shaft seal) ; DIN EN 60529, IP66/IP67 (with shaft seal) Climatic testing DIN EN 60068-2-3, no moisture condensation Emitted interference DIN EN 61000-6-4 Noise immunity DIN EN 61000-6-2 Shock resistance DIN EN 60068-2-27, 100 g, 6 ms Vibration resistance DIN EN 60068-2-6, 20 g, 10 ... 2000 Hz Approvals and certificates UL approval cULus Listed, General Purpose, Class 2 Power Source Ambient conditions Operating temperature -40 ... 85 °C (-40 ... 185 °F) Storage temperature -40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Material Combination 1 housing: powder coated aluminum flange: aluminum shaft: stainless steel Combination 2 (Inox) housing: stainless steel flange: stainless steel shaft: stainless steel Mass approx. 460 g (combination 1) approx. 800 g (combination 2) Rotational speed max. 12000 min -1 Moment of inertia 50 gcm2 Starting torque < 5 Ncm Shaft load Axial 40 N Radial 110 N Classifications System Classcode ECLASS 11.0 27270502 ECLASS 10.0.1 27270502 ECLASS 9.0 27270502 ECLASS 8.0 27270502 ECLASS 5.1 27270502 ETIM 8.0 EC001486 ETIM 7.0 EC001486 ETIM 6.0 EC001486 ETIM 5.0 EC001486 UNSPSC 12.1 39121527
