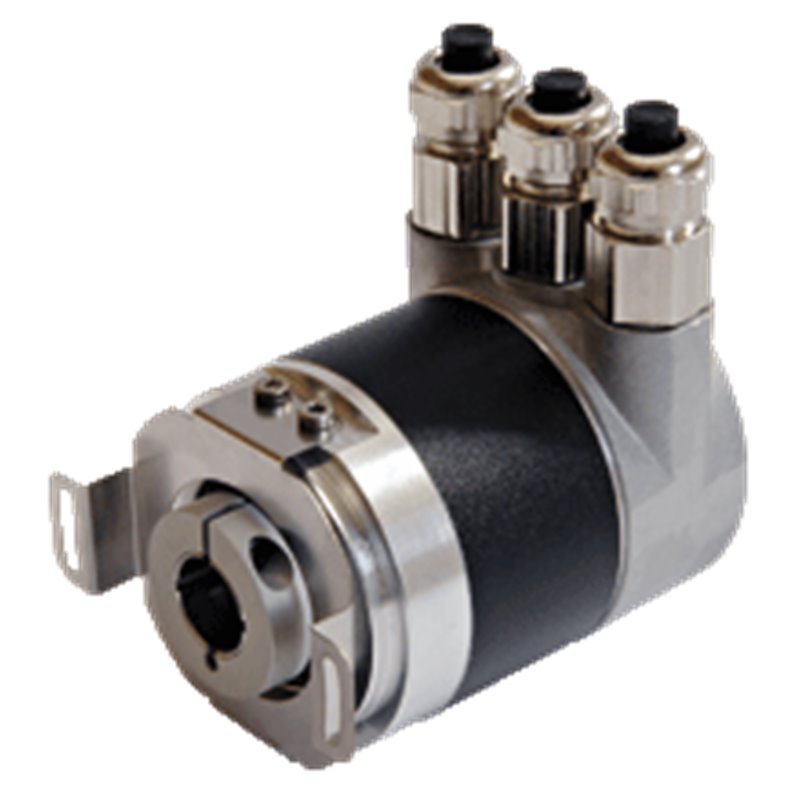

CSS58I-F3AAGR0BN-0013 PEPPERL+FUCHS - Part number: 263839

Datasheet excerpt: Technical data of  CSS58 General specifications Detection typephotoelectric sampling Device typeSingleturn absolute encoder Functional safety related parameters MTTFd80 a Mission Time (TM)20 a L101.9 E+11 at 6000 rpm and 20/40 N axial/radial shaft load Diagnostic Coverage (DC)0 % Electrical specifications Operating voltage10 ... 30 V DC No-load supply currentmax. 230 mA at 10 V DC max. 100 mA at 24 V DC Time delay before availability< 250 ms Linearity± 2 LSB at 16 Bit, ± 1 LSB at 13 Bit, ± 0,5 LSB at 12 Bit Output codebinary code Code course (counting direction)cw ascending (clockwise rotation, code course ascending)cw descending (clockwise rotation, code course descending) Interface Interface typeCANopen Resolution Single turnup to 16 Bit Overall resolutionup to 16 Bit Transfer ratemax. 1 MBit/s Standard conformitycommunication profile: DS 301 Device profiles: DS 406 and DS 417 , programmable according to class 2 Connection Terminal compartmentin removable housing cover Standard conformity Degree of protectionDIN EN 60529, IP65 IP66 (with shaft seal) Climatic testingDIN EN 60068-2-30 , no moisture condensation Emitted interferenceEN 61000-6-4:2007 Noise immunityEN 61000-6-2:2005 Shock resistanceDIN EN 60068-2-27, 100 g, 6 ms Vibration resistanceDIN EN 60068-2-6, 20 g, 10 ... 2000 Hz Approvals and certificates UL approvalcULus Listed, General Purpose, Class 2 Power Source Ambient conditions Operating temperature-40 ... 85 °C (-40 ... 185 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Material Combination 1housing: powder coated aluminumflange: aluminumshaft: stainless steel Combination 2 (Inox)housing: stainless steelflange: stainless steelshaft: stainless steel Mass550 g (combination 1) 1100 g (combination 2) Rotational speedmax. 12000 min -1 Moment of inertia30 gcm2 Starting torque≤ 3 Ncm (version without shaft seal) Tightening torque, fastening screwsmax. 1.8 Nm Shaft load Angle offset± 0.9 ° Axial offsetstatic: ± 0.3 mm, dynamic: ± 0.1 mm Radial offsetstatic: ± 0.5 mm, dynamic: ± 0.2 mm Classifications SystemClasscode ECLASS 11.027270502 ECLASS 10.0.127270502 ECLASS 9.027270502 ECLASS 8.027270502 ECLASS 5.127270502 ETIM 8.0EC001486 ETIM 7.0EC001486 ETIM 6.0EC001486 ETIM 5.0EC001486 UNSPSC 12.139121527 Datasheet excerpt: Technical data of  CSS58 General specifications Detection typephotoelectric sampling Device typeSingleturn absolute encoder Functional safety related parameters MTTFd80 a Mission Time (TM)20 a L101.9 E+11 at 6000 rpm and 20/40 N axial/radial shaft load Diagnostic Coverage (DC)0 % Electrical specifications Operating voltage10 ... 30 V DC No-load supply currentmax. 230 mA at 10 V DC max. 100 mA at 24 V DC Time delay before availability< 250 ms Linearity± 2 LSB at 16 Bit, ± 1 LSB at 13 Bit, ± 0,5 LSB at 12 Bit Output codebinary code Code course (counting direction)cw ascending (clockwise rotation, code course ascending)cw descending (clockwise rotation, code course descending) Interface Interface typeCANopen Resolution Single turnup to 16 Bit Overall resolutionup to 16 Bit Transfer ratemax. 1 MBit/s Standard conformitycommunication profile: DS 301 Device profiles: DS 406 and DS 417 , programmable according to class 2 Connection Terminal compartmentin removable housing cover Standard conformity Degree of protectionDIN EN 60529, IP65 IP66 (with shaft seal) Climatic testingDIN EN 60068-2-30 , no moisture condensation Emitted interferenceEN 61000-6-4:2007 Noise immunityEN 61000-6-2:2005 Shock resistanceDIN EN 60068-2-27, 100 g, 6 ms Vibration resistanceDIN EN 60068-2-6, 20 g, 10 ... 2000 Hz Approvals and certificates UL approvalcULus Listed, General Purpose, Class 2 Power Source Ambient conditions Operating temperature-40 ... 85 °C (-40 ... 185 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Material Combination 1housing: powder coated aluminumflange: aluminumshaft: stainless steel Combination 2 (Inox)housing: stainless steelflange: stainless steelshaft: stainless steel Mass550 g (combination 1) 1100 g (combination 2) Rotational speedmax. 12000 min -1 Moment of inertia30 gcm2 Starting torque≤ 3 Ncm (version without shaft seal) Tightening torque, fastening screwsmax. 1.8 Nm Shaft load Angle offset± 0.9 ° Axial offsetstatic: ± 0.3 mm, dynamic: ± 0.1 mm Radial offsetstatic: ± 0.5 mm, dynamic: ± 0.2 mm Classifications SystemClasscode ECLASS 11.027270502 ECLASS 10.0.127270502 ECLASS 9.027270502 ECLASS 8.027270502 ECLASS 5.127270502 ETIM 8.0EC001486 ETIM 7.0EC001486 ETIM 6.0EC001486 ETIM 5.0EC001486 UNSPSC 12.139121527
