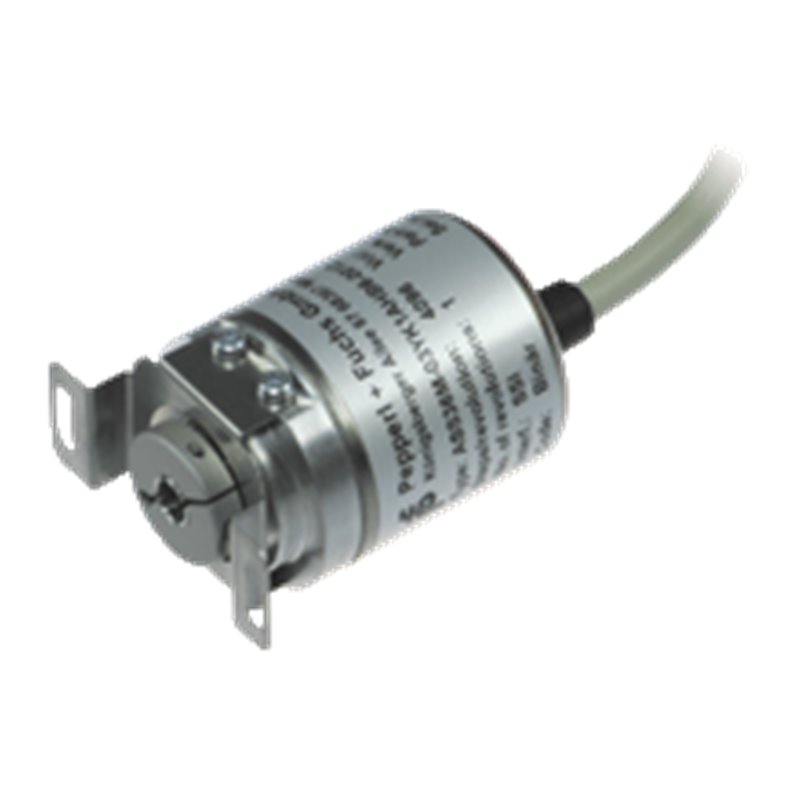

ENA36IL-R06DA4-1213SB1-ACA PEPPERL+FUCHS - Part number: 274866-100138

Datasheet excerpt: Technical data of  ENA36IL-R***-SSI General specifications Detection typemagnetic sampling Device typeAbsolute encoders Linearity error≤ ± 0.1 ° UL File NumberE223176 "For use in NFPA 79 Applications only" , if UL marking is marked on the product. Functional safety related parameters MTTFd700 a at 40 °C Mission Time (TM)20 a L101035 E+8 revolutions at 19/44 N axial/radial shaft load Diagnostic Coverage (DC)0 % Electrical specifications Operating voltage4.75 ... 30 V DC Power consumption≤ 1 W Time delay before availability< 450 ms Output codeGray code, binary code Code course (counting direction)adjustable Interface Interface typeSSI Resolution Single turnup to 16 Bit Multiturnup to 16 Bit Overall resolutionup to 32 Bit Transfer rate0.1 ... 2 MBit/s Cycle time< 100 µs Standard conformityRS 422 Input 1 Input typeSelection of counting direction (cw/ccw) Signal voltage High4.75 V ... UB (cw descending) Low0 ... 2 V or unconnected (cw ascending) Input current< 6 mA Switch-on delay< 250 ms Input 2 Input typezero-set (PRESET 1) with falling edge Signal voltage High4.75 V ... UB Low0 ... 2 V Input current< 6 mA Signal durationmin. 1.1 s Connection ConnectorM12 connector, 8-pin Cable∅6 mm, 4 x 2 x 0.14 mm2 Standard conformity Degree of protectionDIN EN 60529, IP65 or IP54 Climatic testingDIN EN 60068-2-3, no moisture condensation Emitted interferenceEN 61000-6-4:2007 Noise immunityEN 61000-6-2:2005 Shock resistanceDIN EN 60068-2-27, 200 g, 6 ms Vibration resistanceDIN EN 60068-2-6, 20 g, 10 ... 1000 Hz Approvals and certificates UL approvalcULus Listed, General Purpose, Class 2 Power Source , if UL marking is marked on the product. Ambient conditions Operating temperaturecable, flexing: -5 ... 70 °C (23 ... 158 °F),cable, fixed: -30 ... 70 °C (-22 ... 158 °F) connector models: -40 ... 85 °C (-40 ... 185 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Relative humidity98 % , no moisture condensation Mechanical specifications Material Housingnickel-plated steel FlangeAluminum ShaftStainless steel Mass150 g Rotational speedmax. 12000 min -1 Moment of inertia30 gcm2 Starting torque< 3 Ncm Shaft load Axial19 N Radial44 N Axial offset± 0.3 mm static Radial offset± 0.5 mm static Classifications SystemClasscode ECLASS 11.027270502 ECLASS 10.0.127270502 ECLASS 9.027270502 ECLASS 8.027270502 ECLASS 5.127270502 ETIM 8.0EC001486 ETIM 7.0EC001486 ETIM 6.0EC001486 ETIM 5.0EC001486 UNSPSC 12.139121527 Datasheet excerpt: Technical data of  ENA36IL-R***-SSI General specifications Detection typemagnetic sampling Device typeAbsolute encoders Linearity error≤ ± 0.1 ° UL File NumberE223176 "For use in NFPA 79 Applications only" , if UL marking is marked on the product. Functional safety related parameters MTTFd700 a at 40 °C Mission Time (TM)20 a L101035 E+8 revolutions at 19/44 N axial/radial shaft load Diagnostic Coverage (DC)0 % Electrical specifications Operating voltage4.75 ... 30 V DC Power consumption≤ 1 W Time delay before availability< 450 ms Output codeGray code, binary code Code course (counting direction)adjustable Interface Interface typeSSI Resolution Single turnup to 16 Bit Multiturnup to 16 Bit Overall resolutionup to 32 Bit Transfer rate0.1 ... 2 MBit/s Cycle time< 100 µs Standard conformityRS 422 Input 1 Input typeSelection of counting direction (cw/ccw) Signal voltage High4.75 V ... UB (cw descending) Low0 ... 2 V or unconnected (cw ascending) Input current< 6 mA Switch-on delay< 250 ms Input 2 Input typezero-set (PRESET 1) with falling edge Signal voltage High4.75 V ... UB Low0 ... 2 V Input current< 6 mA Signal durationmin. 1.1 s Connection ConnectorM12 connector, 8-pin Cable∅6 mm, 4 x 2 x 0.14 mm2 Standard conformity Degree of protectionDIN EN 60529, IP65 or IP54 Climatic testingDIN EN 60068-2-3, no moisture condensation Emitted interferenceEN 61000-6-4:2007 Noise immunityEN 61000-6-2:2005 Shock resistanceDIN EN 60068-2-27, 200 g, 6 ms Vibration resistanceDIN EN 60068-2-6, 20 g, 10 ... 1000 Hz Approvals and certificates UL approvalcULus Listed, General Purpose, Class 2 Power Source , if UL marking is marked on the product. Ambient conditions Operating temperaturecable, flexing: -5 ... 70 °C (23 ... 158 °F),cable, fixed: -30 ... 70 °C (-22 ... 158 °F) connector models: -40 ... 85 °C (-40 ... 185 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Relative humidity98 % , no moisture condensation Mechanical specifications Material Housingnickel-plated steel FlangeAluminum ShaftStainless steel Mass150 g Rotational speedmax. 12000 min -1 Moment of inertia30 gcm2 Starting torque< 3 Ncm Shaft load Axial19 N Radial44 N Axial offset± 0.3 mm static Radial offset± 0.5 mm static Classifications SystemClasscode ECLASS 11.027270502 ECLASS 10.0.127270502 ECLASS 9.027270502 ECLASS 8.027270502 ECLASS 5.127270502 ETIM 8.0EC001486 ETIM 7.0EC001486 ETIM 6.0EC001486 ETIM 5.0EC001486 UNSPSC 12.139121527
