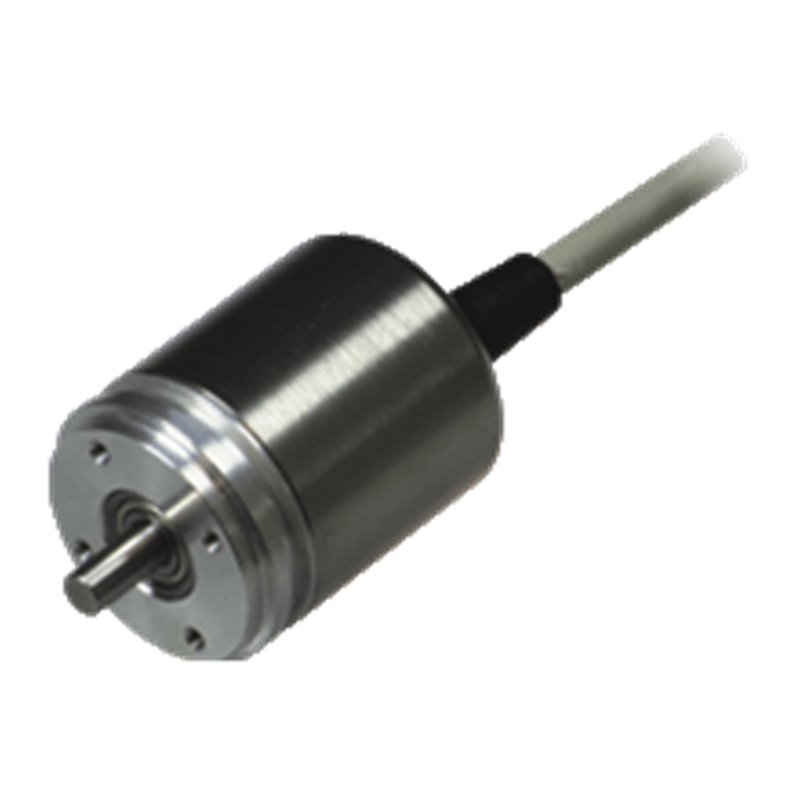

ENA36IL-S06SA4-0413IP4-RC2 PEPPERL+FUCHS - Part number: 274866-100157

Datasheet excerpt: Technical data of  ENA36IL-S***-Analog General specifications Detection typemagnetic sampling Device typeAbsolute encoders Measurement rangemin. 0 ... 22.5 ° max. 65566 x 360 ° factory setting: 16 x 360" Resolution17 Bit (13 bits/revolution) UL File NumberE223176 "For use in NFPA 79 Applications only" , if UL marking is marked on the product. Electrical specifications Operating voltage8 ... 32 V DC Current consumptiontyp. 15 mA (with voltage output) typ. 20 mA (with current output) Input 1 Input typelower limit of measurement range Signal voltage High8 ... 32 V DC Signal durationmin. 1 s Input 2 Input typeupper limit of measurement range Signal voltage High8 ... 32 V DC Signal durationmin. 1 s Analog output Output typeanalog voltage output or analog current output (see type code) Default settingrising ramp at ccw rotation Linearity error≤ 0.15 % Load resistormin. 5000 Ω (with voltage output) , min. 500 Ω (with current output) ; Max. value for supply voltage 8 V. For higher supply voltage lower load resistance can be used. Connection ConnectorM12 connector, 5 pin Cable∅6 mm, 4 x 2 x 0.14 mm2, 1 m Standard conformity Degree of protectionacc. DIN EN 60529 Connection sidecable models: IP54 connector models: IP65 Shaft sideIP65 Climatic testingDIN EN 60068-2-3, no moisture condensation Emitted interferenceEN 61000-6-4:2007 Noise immunityEN 61000-6-2:2005 Shock resistanceDIN EN 60068-2-27, 100 g, 6 ms Vibration resistanceDIN EN 60068-2-6, 10 g, 10 ... 1000 Hz Approvals and certificates UL approvalcULus Listed, General Purpose, Class 2 Power Source , if UL marking is marked on the product. Ambient conditions Operating temperaturecable, flexing: -5 ... 70 °C (23 ... 158 °F)cable, fixed: -30 ... 70 °C (-22 ... 158 °F) connector models: -40 ... 85 °C (-40 ... 185 °F) Storage temperaturecable models: -30 ... 70 °C (-22 ... 158 °F) connector models: -30 ... 85 °C (-22 ... 185 °F) Relative humidity98 % , no moisture condensation Mechanical specifications Material Housingnickel-plated steel FlangeAluminum ShaftStainless steel Mass150 g , with cable Rotational speedmax. 12000 min -1 Moment of inertia30 gcm2 Starting torque< 3 Ncm Shaft load Axial20 N Radial40 N Classifications SystemClasscode ECLASS 11.027270502 ECLASS 10.0.127270502 ECLASS 9.027270502 ECLASS 8.027270502 ECLASS 5.127270502 ETIM 8.0EC001486 ETIM 7.0EC001486 ETIM 6.0EC001486 ETIM 5.0EC001486 UNSPSC 12.139121527 Datasheet excerpt: Technical data of  ENA36IL-S***-Analog General specifications Detection typemagnetic sampling Device typeAbsolute encoders Measurement rangemin. 0 ... 22.5 ° max. 65566 x 360 ° factory setting: 16 x 360" Resolution17 Bit (13 bits/revolution) UL File NumberE223176 "For use in NFPA 79 Applications only" , if UL marking is marked on the product. Electrical specifications Operating voltage8 ... 32 V DC Current consumptiontyp. 15 mA (with voltage output) typ. 20 mA (with current output) Input 1 Input typelower limit of measurement range Signal voltage High8 ... 32 V DC Signal durationmin. 1 s Input 2 Input typeupper limit of measurement range Signal voltage High8 ... 32 V DC Signal durationmin. 1 s Analog output Output typeanalog voltage output or analog current output (see type code) Default settingrising ramp at ccw rotation Linearity error≤ 0.15 % Load resistormin. 5000 Ω (with voltage output) , min. 500 Ω (with current output) ; Max. value for supply voltage 8 V. For higher supply voltage lower load resistance can be used. Connection ConnectorM12 connector, 5 pin Cable∅6 mm, 4 x 2 x 0.14 mm2, 1 m Standard conformity Degree of protectionacc. DIN EN 60529 Connection sidecable models: IP54 connector models: IP65 Shaft sideIP65 Climatic testingDIN EN 60068-2-3, no moisture condensation Emitted interferenceEN 61000-6-4:2007 Noise immunityEN 61000-6-2:2005 Shock resistanceDIN EN 60068-2-27, 100 g, 6 ms Vibration resistanceDIN EN 60068-2-6, 10 g, 10 ... 1000 Hz Approvals and certificates UL approvalcULus Listed, General Purpose, Class 2 Power Source , if UL marking is marked on the product. Ambient conditions Operating temperaturecable, flexing: -5 ... 70 °C (23 ... 158 °F)cable, fixed: -30 ... 70 °C (-22 ... 158 °F) connector models: -40 ... 85 °C (-40 ... 185 °F) Storage temperaturecable models: -30 ... 70 °C (-22 ... 158 °F) connector models: -30 ... 85 °C (-22 ... 185 °F) Relative humidity98 % , no moisture condensation Mechanical specifications Material Housingnickel-plated steel FlangeAluminum ShaftStainless steel Mass150 g , with cable Rotational speedmax. 12000 min -1 Moment of inertia30 gcm2 Starting torque< 3 Ncm Shaft load Axial20 N Radial40 N Classifications SystemClasscode ECLASS 11.027270502 ECLASS 10.0.127270502 ECLASS 9.027270502 ECLASS 8.027270502 ECLASS 5.127270502 ETIM 8.0EC001486 ETIM 7.0EC001486 ETIM 6.0EC001486 ETIM 5.0EC001486 UNSPSC 12.139121527
