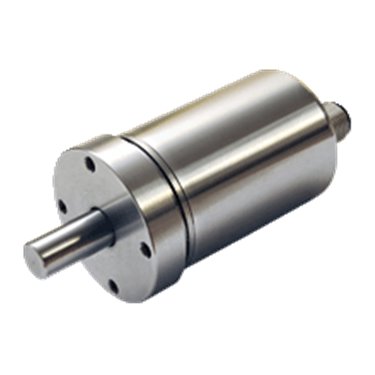

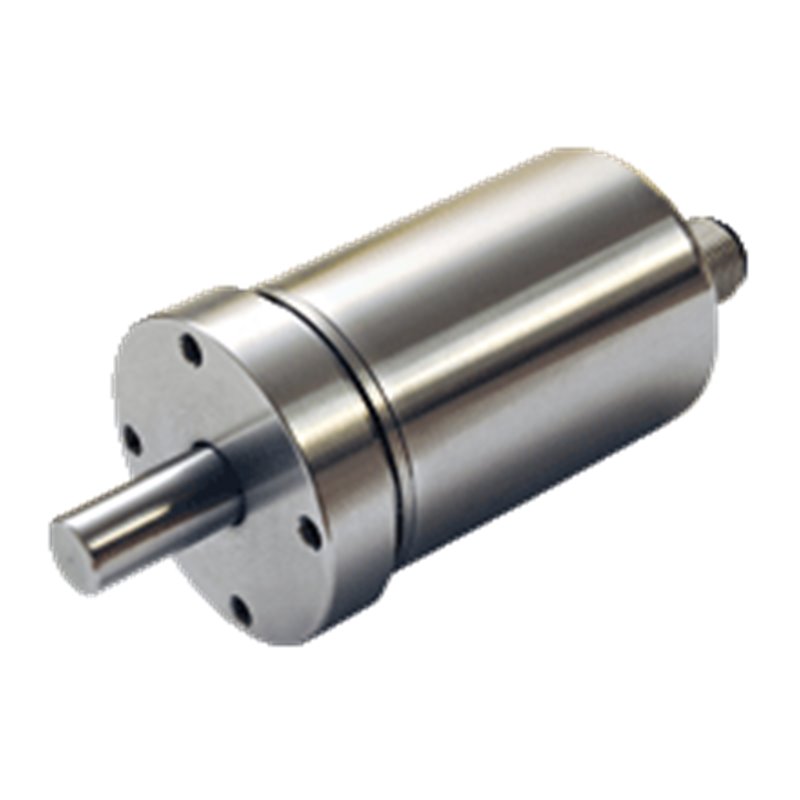

ENA42HD-S10S49-1212SG1-ABE PEPPERL+FUCHS - Part number: 288621-100001

Datasheet excerpt: Technical data of  ENA42HD-S***-SSI General specifications Detection typemagnetic sampling Device typeAbsolute encoders Linearity error≤ ± 0.1 ° UL File NumberE223176 "For use in NFPA 79 Applications only" , if UL marking is marked on the product. Functional safety related parameters MTTFd700 a at 40 °C Mission Time (TM)20 a L1010 E+8 revolutions Diagnostic Coverage (DC)0 % Electrical specifications Operating voltage4.75 ... 30 V DC Power consumption≤ 1 W Time delay before availability< 450 ms Output codeGray code, binary code Code course (counting direction)adjustable Interface Interface typeSSI Resolution Single turnup to 16 Bit Multiturnup to 16 Bit Overall resolutionup to 32 Bit Transfer rate0.1 ... 2 MBit/s Cycle time< 100 µs Standard conformityRS 422 Input 1 Input typeSelection of counting direction (cw/ccw) Signal voltage High4.75 V ... UB (cw descending) Low0 ... 2 V or unconnected (cw ascending) Input current< 6 mA Switch-on delay< 250 ms Input 2 Input typezero-set (PRESET 1) with falling edge Signal voltage High4.75 V ... UB Low0 ... 2 V Input current< 6 mA Signal durationmin. 1.1 s Connection ConnectorM12 connector, 8-pin Cable∅7 mm, 6 x 2 x 0.14 mm2, 1 m (cable length, see order code) Standard conformity Degree of protectionDIN EN 60529 , IP66 / IP68 / IP69K Climatic testingDIN EN 60068-2-3, no moisture condensation Emitted interferenceEN 61000-6-4:2007 Noise immunityEN 61000-6-2:2005 Shock resistanceDIN EN 60068-2-27, 300 g, 6 ms Vibration resistanceDIN EN 60068-2-6, 30 g, 10 ... 1000 Hz Approvals and certificates UL approvalcULus Listed, General Purpose, Class 2 Power Source , if UL marking is marked on the product. Ambient conditions Operating temperature-40 ... 85 °C (-40 ... 185 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Relative humidity98 % , no moisture condensation Mechanical specifications Material Housingstainless steel 1.4404 / AISI 316L Flangestainless steel 1.4404 / AISI 316L ShaftStainless steel 1.4412 / AISI 440B Mass350 g Rotational speedmax. 6000 min -1 Moment of inertia30 gcm2 Starting torque< 5 Ncm Shaft load Axial270 N Radial270 N Classifications SystemClasscode ECLASS 11.027270502 ECLASS 10.0.127270502 ECLASS 9.027270502 ECLASS 8.027270502 ECLASS 5.127270502 ETIM 8.0EC001486 ETIM 7.0EC001486 ETIM 6.0EC001486 ETIM 5.0EC001486 UNSPSC 12.139121527 Datasheet excerpt: Technical data of  ENA42HD-S***-SSI General specifications Detection typemagnetic sampling Device typeAbsolute encoders Linearity error≤ ± 0.1 ° UL File NumberE223176 "For use in NFPA 79 Applications only" , if UL marking is marked on the product. Functional safety related parameters MTTFd700 a at 40 °C Mission Time (TM)20 a L1010 E+8 revolutions Diagnostic Coverage (DC)0 % Electrical specifications Operating voltage4.75 ... 30 V DC Power consumption≤ 1 W Time delay before availability< 450 ms Output codeGray code, binary code Code course (counting direction)adjustable Interface Interface typeSSI Resolution Single turnup to 16 Bit Multiturnup to 16 Bit Overall resolutionup to 32 Bit Transfer rate0.1 ... 2 MBit/s Cycle time< 100 µs Standard conformityRS 422 Input 1 Input typeSelection of counting direction (cw/ccw) Signal voltage High4.75 V ... UB (cw descending) Low0 ... 2 V or unconnected (cw ascending) Input current< 6 mA Switch-on delay< 250 ms Input 2 Input typezero-set (PRESET 1) with falling edge Signal voltage High4.75 V ... UB Low0 ... 2 V Input current< 6 mA Signal durationmin. 1.1 s Connection ConnectorM12 connector, 8-pin Cable∅7 mm, 6 x 2 x 0.14 mm2, 1 m (cable length, see order code) Standard conformity Degree of protectionDIN EN 60529 , IP66 / IP68 / IP69K Climatic testingDIN EN 60068-2-3, no moisture condensation Emitted interferenceEN 61000-6-4:2007 Noise immunityEN 61000-6-2:2005 Shock resistanceDIN EN 60068-2-27, 300 g, 6 ms Vibration resistanceDIN EN 60068-2-6, 30 g, 10 ... 1000 Hz Approvals and certificates UL approvalcULus Listed, General Purpose, Class 2 Power Source , if UL marking is marked on the product. Ambient conditions Operating temperature-40 ... 85 °C (-40 ... 185 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Relative humidity98 % , no moisture condensation Mechanical specifications Material Housingstainless steel 1.4404 / AISI 316L Flangestainless steel 1.4404 / AISI 316L ShaftStainless steel 1.4412 / AISI 440B Mass350 g Rotational speedmax. 6000 min -1 Moment of inertia30 gcm2 Starting torque< 5 Ncm Shaft load Axial270 N Radial270 N Classifications SystemClasscode ECLASS 11.027270502 ECLASS 10.0.127270502 ECLASS 9.027270502 ECLASS 8.027270502 ECLASS 5.127270502 ETIM 8.0EC001486 ETIM 7.0EC001486 ETIM 6.0EC001486 ETIM 5.0EC001486 UNSPSC 12.139121527
