ENA58IL-S06CA7-0013B17-RH2 PEPPERL+FUCHS - Part number: 269813-100189

PEPPERL+FUCHS

confronta

Absolute encoders ENA58IL-S-ProfiNET ENA58IL-S-ProfiNET Solid shaft 30 Bit multiturn Free of wear magnetic sampling High resolution and accuracy Mechanical compatibility with all major encoders with fieldbus interface Status LEDs

MPNs 269813-100189, PEP269813-100189, ENA58IL-S06CA7-0013B17-RH2

Codice HS 84861000

Peso 0.3 kg

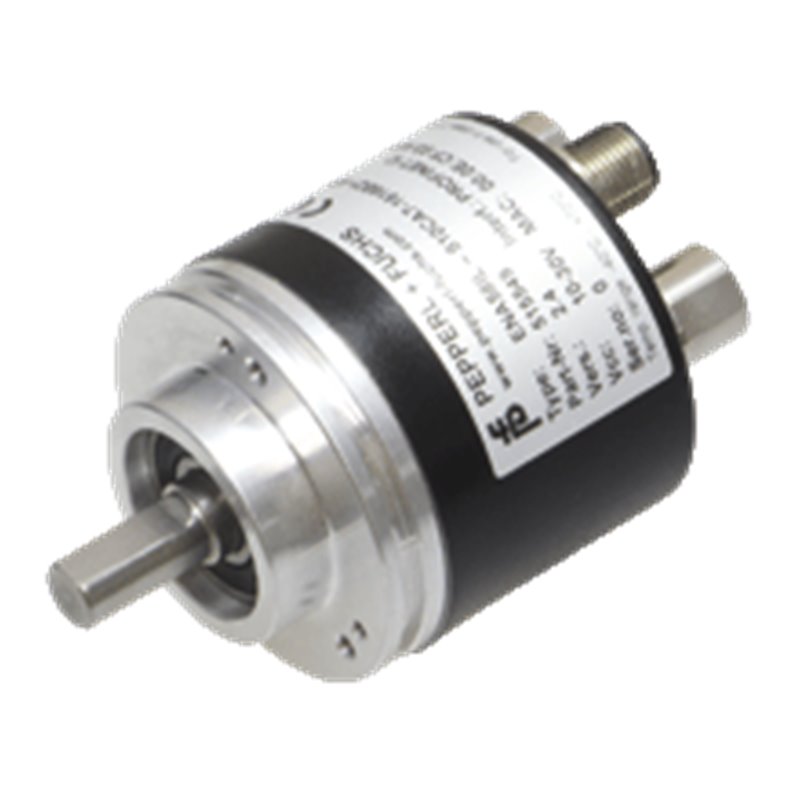

L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.

Venduto da PLC-CITY® e spedito dall'Italia

Pagamenti sicuri

e molti altri

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

12 Mesi garanzia

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

Reso disponibile entro 30 giorni

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Disponibile su richiesta

Richiedi il tuo servizio tecnico personalizzato

Affidati al nostro team di tecnici esperti per una gamma di servizi personalizzati: riparazione, programmazione, manutenzione e molto altro.

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of ENA58IL-S***-ProfiNET General specifications Detection typemagnetic sampling Device typeAbsolute encoders Linearity error≤ ± 0.1 ° UL File NumberE223176 "For use in NFPA 79 Applications only" , if UL marking is marked on the product. Functional safety related parameters MTTFd130 a at 40 °C Mission Time (TM)12 a L1055 E+8 revolutions at 40/110 N axial/radial shaft load Diagnostic Coverage (DC)0 % Electrical specifications Operating voltage10 ... 30 V DC Power consumption4 W Time delay before availability< 250 ms Output codebinary code Code course (counting direction)programmable,cw ascending (clockwise rotation, code course ascending)cw descending (clockwise rotation, code course descending) Interface Interface typePROFINET IO Resolution Single turnup to 16 Bit Multiturnup to 14 Bit Overall resolutionup to 30 Bit Transfer rate100 MBit/s Cycle time≥ 1 ms Connection ConnectorEthernet: 2 sockets M12 x 1, 4-pin, D-codedSupply: 1 plug M12 x 1, 4-pin, A-coded Standard conformity Degree of protectionDIN EN 60529, IP65, IP66, IP67 Climatic testingDIN EN 60068-2-3, no moisture condensation Emitted interferenceEN 61000-6-4:2007 Noise immunityEN 61000-6-2:2005 Shock resistanceDIN EN 60068-2-27, 100 g, 6 ms Vibration resistanceDIN EN 60068-2-6, 10 g, 10 ... 1000 Hz Approvals and certificates UL approvalcULus Listed, General Purpose, Class 2 Power Source , if UL marking is marked on the product. Ambient conditions Operating temperature-40 ... 70 °C (-40 ... 158 °F) for model without connection cover -40 ... 85 °C (-40 ... 185 °F) for model with connection cover Storage temperature-40 ... 85 °C (-40 ... 185 °F) Relative humidity98 % , no moisture condensation Mechanical specifications Material HousingZinc plated steel, painted FlangeAluminum ShaftStainless steel Mass300 g Rotational speedmax. 12000 min -1 for IP65 max. 3000 min -1 for IP66/IP67 Moment of inertia50 gcm2 Starting torque< 5 Ncm Shaft load Axial40 N Radial110 N Classifications SystemClasscode ECLASS 11.027270502 ECLASS 10.0.127270502 ECLASS 9.027270502 ECLASS 8.027270502 ECLASS 5.127270502 ETIM 8.0EC001486 ETIM 7.0EC001486 ETIM 6.0EC001486 ETIM 5.0EC001486 UNSPSC 12.139121527 Datasheet excerpt: Technical data of ENA58IL-S***-ProfiNET General specifications Detection typemagnetic sampling Device typeAbsolute encoders Linearity error≤ ± 0.1 ° UL File NumberE223176 "For use in NFPA 79 Applications only" , if UL marking is marked on the product. Functional safety related parameters MTTFd130 a at 40 °C Mission Time (TM)12 a L1055 E+8 revolutions at 40/110 N axial/radial shaft load Diagnostic Coverage (DC)0 % Electrical specifications Operating voltage10 ... 30 V DC Power consumption4 W Time delay before availability< 250 ms Output codebinary code Code course (counting direction)programmable,cw ascending (clockwise rotation, code course ascending)cw descending (clockwise rotation, code course descending) Interface Interface typePROFINET IO Resolution Single turnup to 16 Bit Multiturnup to 14 Bit Overall resolutionup to 30 Bit Transfer rate100 MBit/s Cycle time≥ 1 ms Connection ConnectorEthernet: 2 sockets M12 x 1, 4-pin, D-codedSupply: 1 plug M12 x 1, 4-pin, A-coded Standard conformity Degree of protectionDIN EN 60529, IP65, IP66, IP67 Climatic testingDIN EN 60068-2-3, no moisture condensation Emitted interferenceEN 61000-6-4:2007 Noise immunityEN 61000-6-2:2005 Shock resistanceDIN EN 60068-2-27, 100 g, 6 ms Vibration resistanceDIN EN 60068-2-6, 10 g, 10 ... 1000 Hz Approvals and certificates UL approvalcULus Listed, General Purpose, Class 2 Power Source , if UL marking is marked on the product. Ambient conditions Operating temperature-40 ... 70 °C (-40 ... 158 °F) for model without connection cover -40 ... 85 °C (-40 ... 185 °F) for model with connection cover Storage temperature-40 ... 85 °C (-40 ... 185 °F) Relative humidity98 % , no moisture condensation Mechanical specifications Material HousingZinc plated steel, painted FlangeAluminum ShaftStainless steel Mass300 g Rotational speedmax. 12000 min -1 for IP65 max. 3000 min -1 for IP66/IP67 Moment of inertia50 gcm2 Starting torque< 5 Ncm Shaft load Axial40 N Radial110 N Classifications SystemClasscode ECLASS 11.027270502 ECLASS 10.0.127270502 ECLASS 9.027270502 ECLASS 8.027270502 ECLASS 5.127270502 ETIM 8.0EC001486 ETIM 7.0EC001486 ETIM 6.0EC001486 ETIM 5.0EC001486 UNSPSC 12.139121527
