ENA58PL-H12DS5-0013SS2-RAA PEPPERL+FUCHS - Part number: 291655

PEPPERL+FUCHS

confronta

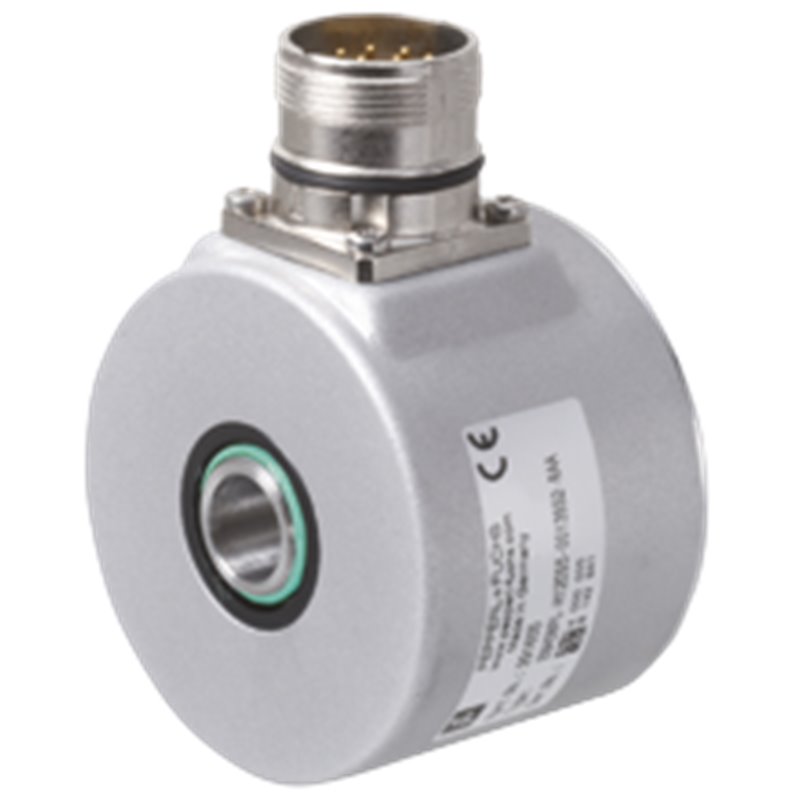

Singleturn sin/cos rotary encoder ENA58PL-H12DS5-0013SS2-RAA ENA58PL-H12DS5-0013SS2-RAA Industrial standard housing ∅58 mm Suitable for SIL2/Pld applications Absolute value data from SSI interface 13 Bit singleturn Incremental signals from sin/cos output

MPNs 291655, PEP291655, ENA58PL-H12DS5-0013SS2-RAA

Codice HS 84861000

Peso 0.22 kg

L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.

Venduto da PLC-CITY® e spedito dall'Italia

Pagamenti sicuri

e molti altri

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

12 Mesi garanzia

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

Reso disponibile entro 30 giorni

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Disponibile su richiesta

Richiedi il tuo servizio tecnico personalizzato

Affidati al nostro team di tecnici esperti per una gamma di servizi personalizzati: riparazione, programmazione, manutenzione e molto altro.

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of ENA58PL-H12DS5-0013SS2-RAA General specifications Detection typephotoelectric sampling Device typeSingleturn absolute rotary encoder with incremental output (sin/cos) Functional safety related parameters Safety Integrity Level (SIL)SIL 2 Performance level (PL)PL d MTTFd1000 a Mission Time (TM)20 a PFHd4.6 E-10 L1070 E+9 at 1.5 rpm Diagnostic Coverage (DC)99.7 % Electrical specifications Operating voltage24 V DC ± 25 % No-load supply currentmax. 100 mA Time delay before availability< 250 ms Output codeGray code Code course (counting direction)cw ascending (clockwise rotation, code course ascending) Interface Interface typeSSI + incremental track (sin/cos) Monoflop time≤ 15 µs Resolution Single turn13 Bit Overall resolution13 Bit Transfer ratemax. 500 kBit/s Standard conformityRS 422 Input 1 Input typeSelection of counting direction (cw/ccw) Signal voltage High4.5 ... 24 V Low0 ... 2 V Input current< 6 mA Switch-on delay< 20 ms Input 2 Input typezero-set (PRESET 1) Signal voltage High4.5 ... 24 V Low0 ... 2 V Input current< 6 mA Signal durationmin. 10 ms Switch-on delay< 20 ms Output Output typesine / cosine Pulses2048 Amplitude1 Vss ± 10 % Load currentmax. per channel 10 mA , conditionally short-circuit proof (not with Ub), reverse polarity protected Output frequencymax. 200 kHz (3 dB limit) Connection Connectortype 9416L (M23), 12-pin Standard conformity Degree of protectionDIN EN 60529, IP65 Climatic testingDIN EN 60068-2-3, no moisture condensation Salt spray testDIN EN 60068-2-52 , 672 h Emitted interferenceDIN EN 61000-6-4 Noise immunityDIN EN 61000-6-2 Shock resistanceDIN EN 60068-2-27, 100 g, 6 ms Vibration resistanceDIN EN 60068-2-6, 10 g, 10 ... 2000 Hz Functional safetyIEC/EN 61508:2010 EN 62061/A2:2015 EN 61326-3-1:2008 EN 61800-5-2:2016 Suitable up to SIL 2, PL d, see leaflet. Approvals and certificates EAC conformityTR CU 020/2011 TÜV approvalCert. no. Z10 17 03 68273 002 Ambient conditions Operating temperature-40 ... 85 °C (-40 ... 185 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Material Housing3.2315 aluminum Flange3.2315 aluminum Shaftstainless steel 1.4404 / AISI 316L Mass220 g Rotational speedmax. 10 min -1 Moment of inertia≤ 80 gcm2 Starting torque< 10 Ncm Shaft load Radial offsetmax. 0.04 mm Classifications SystemClasscode ECLASS 11.027270502 ECLASS 10.0.127270502 ECLASS 9.027270502 ECLASS 8.027270502 ECLASS 5.127270502 ETIM 8.0EC001486 ETIM 7.0EC001486 ETIM 6.0EC001486 ETIM 5.0EC001486 UNSPSC 12.139121527 Datasheet excerpt: Technical data of ENA58PL-H12DS5-0013SS2-RAA General specifications Detection typephotoelectric sampling Device typeSingleturn absolute rotary encoder with incremental output (sin/cos) Functional safety related parameters Safety Integrity Level (SIL)SIL 2 Performance level (PL)PL d MTTFd1000 a Mission Time (TM)20 a PFHd4.6 E-10 L1070 E+9 at 1.5 rpm Diagnostic Coverage (DC)99.7 % Electrical specifications Operating voltage24 V DC ± 25 % No-load supply currentmax. 100 mA Time delay before availability< 250 ms Output codeGray code Code course (counting direction)cw ascending (clockwise rotation, code course ascending) Interface Interface typeSSI + incremental track (sin/cos) Monoflop time≤ 15 µs Resolution Single turn13 Bit Overall resolution13 Bit Transfer ratemax. 500 kBit/s Standard conformityRS 422 Input 1 Input typeSelection of counting direction (cw/ccw) Signal voltage High4.5 ... 24 V Low0 ... 2 V Input current< 6 mA Switch-on delay< 20 ms Input 2 Input typezero-set (PRESET 1) Signal voltage High4.5 ... 24 V Low0 ... 2 V Input current< 6 mA Signal durationmin. 10 ms Switch-on delay< 20 ms Output Output typesine / cosine Pulses2048 Amplitude1 Vss ± 10 % Load currentmax. per channel 10 mA , conditionally short-circuit proof (not with Ub), reverse polarity protected Output frequencymax. 200 kHz (3 dB limit) Connection Connectortype 9416L (M23), 12-pin Standard conformity Degree of protectionDIN EN 60529, IP65 Climatic testingDIN EN 60068-2-3, no moisture condensation Salt spray testDIN EN 60068-2-52 , 672 h Emitted interferenceDIN EN 61000-6-4 Noise immunityDIN EN 61000-6-2 Shock resistanceDIN EN 60068-2-27, 100 g, 6 ms Vibration resistanceDIN EN 60068-2-6, 10 g, 10 ... 2000 Hz Functional safetyIEC/EN 61508:2010 EN 62061/A2:2015 EN 61326-3-1:2008 EN 61800-5-2:2016 Suitable up to SIL 2, PL d, see leaflet. Approvals and certificates EAC conformityTR CU 020/2011 TÜV approvalCert. no. Z10 17 03 68273 002 Ambient conditions Operating temperature-40 ... 85 °C (-40 ... 185 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Material Housing3.2315 aluminum Flange3.2315 aluminum Shaftstainless steel 1.4404 / AISI 316L Mass220 g Rotational speedmax. 10 min -1 Moment of inertia≤ 80 gcm2 Starting torque< 10 Ncm Shaft load Radial offsetmax. 0.04 mm Classifications SystemClasscode ECLASS 11.027270502 ECLASS 10.0.127270502 ECLASS 9.027270502 ECLASS 8.027270502 ECLASS 5.127270502 ETIM 8.0EC001486 ETIM 7.0EC001486 ETIM 6.0EC001486 ETIM 5.0EC001486 UNSPSC 12.139121527
