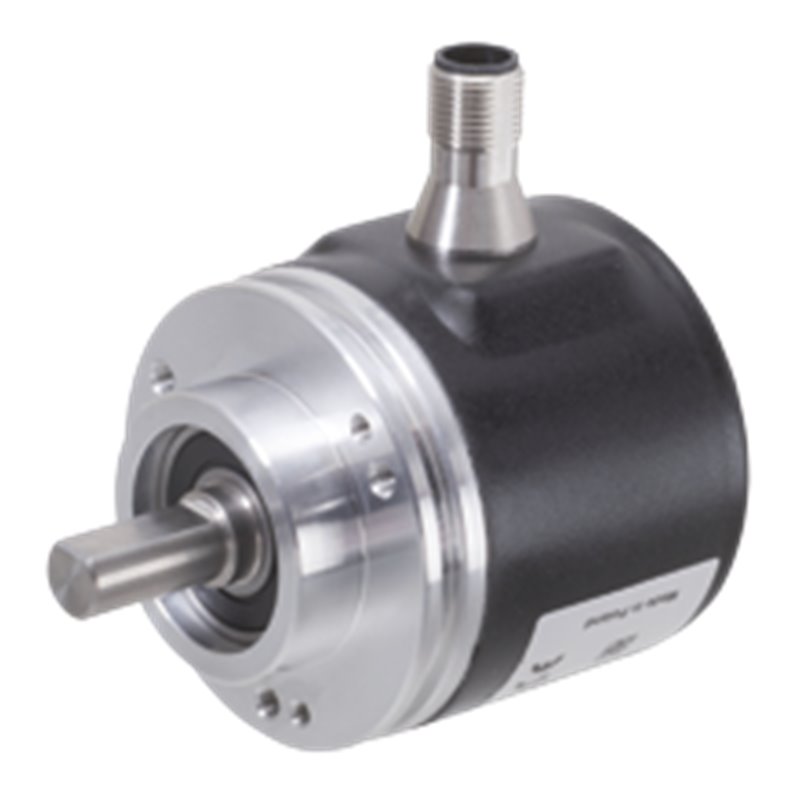

ENA58TL-S06CA7-1516-IO-ABD01 PEPPERL+FUCHS - Part number: 70119037-100032

Datasheet excerpt: Technical data of  ENA58TL-S***-IO-Link General specifications Detection typemagnetic sampling Device typeAbsolut rotary encoder as Pure Line Linearity error≤ ± 0.1 ° UL File NumberE223176 "For use in NFPA 79 Applications only" , if UL marking is marked on the product. Functional safety related parameters MTTFd566 a at 40 °C Mission Time (TM)20 a L10420 E+8 revolutions at 40/110 N axial/radial shaft load Diagnostic Coverage (DC)0 % Indicators/operating means LED STATUSLED green flashing with short break (1 Hz) - IO-Link mode Electrical specifications Operating voltage18 ... 30 V DC No-load supply currentmax. 50 mA Power consumption1.5 W Time delay before availability< 1 s Interface Interface typeIO-Link IO-Link Revision1.1 Device profileIdentification & Diagnosis - I&D Resolution Single turnup to 16 Bit programmable Multiturnup to 15 Bit programmable Overall resolutionup to 31 Bit programmable Process dataInput 12 Byte - measurement value 4 Byte - resolution 16 Bit - auxiliary mesurement value 4 Byte - switching signals 2 Bit - diagnosis signals 2 Bit - status data Vendor ID1 (0x0001) Device ID5243907 (0x500403), 5243908 (0x500404), 5243911 (0x500407), 5243912 (0x500408) Transfer rateCOM3 (230.4 kbits/s) Min. cycle time1.5 ms SIO mode supportno Compatible master port typeClass A Class B (use 3-pole adapter or 3-wire cable) Connection ConnectorM12 connector, 5 pin , A-coded Standard conformity Degree of protectionDIN EN 60529, IP65, IP67 Communication interfaceIEC 61131-9 / IO-Link V1.1.2 Climatic testingDIN EN 60068-2-78, no moisture condensation Emitted interferenceEN 61000-6-4:2007 Noise immunityEN 61000-6-2:2005 Shock resistanceDIN EN 60068-2-27, 100 g, 6 ms Vibration resistanceDIN EN 60068-2-6, 10 g, 10 ... 1000 Hz Approvals and certificates UL approvalcULus Listed, General Purpose, Class 2 Power Source , if UL marking is marked on the product. Ambient conditions Operating temperature-40 ... 85 °C (-40 ... 185 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Relative humidity98 % , no moisture condensation Mechanical specifications Material HousingZinc plated steel, painted FlangeAluminum ShaftStainless steel Mass350 g Rotational speedmax. 12000 min -1 Moment of inertia< 30 gcm2 Starting torque< 3 Ncm Shaft load Axial40 N Radial110 N Classifications SystemClasscode ECLASS 11.027270502 ECLASS 10.0.127270502 ECLASS 9.027270502 ECLASS 8.027270502 ECLASS 5.127270502 ETIM 8.0EC001486 ETIM 7.0EC001486 ETIM 6.0EC001486 ETIM 5.0EC001486 UNSPSC 12.139121527 Datasheet excerpt: Technical data of  ENA58TL-S***-IO-Link General specifications Detection typemagnetic sampling Device typeAbsolut rotary encoder as Pure Line Linearity error≤ ± 0.1 ° UL File NumberE223176 "For use in NFPA 79 Applications only" , if UL marking is marked on the product. Functional safety related parameters MTTFd566 a at 40 °C Mission Time (TM)20 a L10420 E+8 revolutions at 40/110 N axial/radial shaft load Diagnostic Coverage (DC)0 % Indicators/operating means LED STATUSLED green flashing with short break (1 Hz) - IO-Link mode Electrical specifications Operating voltage18 ... 30 V DC No-load supply currentmax. 50 mA Power consumption1.5 W Time delay before availability< 1 s Interface Interface typeIO-Link IO-Link Revision1.1 Device profileIdentification & Diagnosis - I&D Resolution Single turnup to 16 Bit programmable Multiturnup to 15 Bit programmable Overall resolutionup to 31 Bit programmable Process dataInput 12 Byte - measurement value 4 Byte - resolution 16 Bit - auxiliary mesurement value 4 Byte - switching signals 2 Bit - diagnosis signals 2 Bit - status data Vendor ID1 (0x0001) Device ID5243907 (0x500403), 5243908 (0x500404), 5243911 (0x500407), 5243912 (0x500408) Transfer rateCOM3 (230.4 kbits/s) Min. cycle time1.5 ms SIO mode supportno Compatible master port typeClass A Class B (use 3-pole adapter or 3-wire cable) Connection ConnectorM12 connector, 5 pin , A-coded Standard conformity Degree of protectionDIN EN 60529, IP65, IP67 Communication interfaceIEC 61131-9 / IO-Link V1.1.2 Climatic testingDIN EN 60068-2-78, no moisture condensation Emitted interferenceEN 61000-6-4:2007 Noise immunityEN 61000-6-2:2005 Shock resistanceDIN EN 60068-2-27, 100 g, 6 ms Vibration resistanceDIN EN 60068-2-6, 10 g, 10 ... 1000 Hz Approvals and certificates UL approvalcULus Listed, General Purpose, Class 2 Power Source , if UL marking is marked on the product. Ambient conditions Operating temperature-40 ... 85 °C (-40 ... 185 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Relative humidity98 % , no moisture condensation Mechanical specifications Material HousingZinc plated steel, painted FlangeAluminum ShaftStainless steel Mass350 g Rotational speedmax. 12000 min -1 Moment of inertia< 30 gcm2 Starting torque< 3 Ncm Shaft load Axial40 N Radial110 N Classifications SystemClasscode ECLASS 11.027270502 ECLASS 10.0.127270502 ECLASS 9.027270502 ECLASS 8.027270502 ECLASS 5.127270502 ETIM 8.0EC001486 ETIM 7.0EC001486 ETIM 6.0EC001486 ETIM 5.0EC001486 UNSPSC 12.139121527
