ENI58IL-S10QA7-4096UD1-ACA PEPPERL+FUCHS - Part number: 283627-100664

PEPPERL+FUCHS

confronta

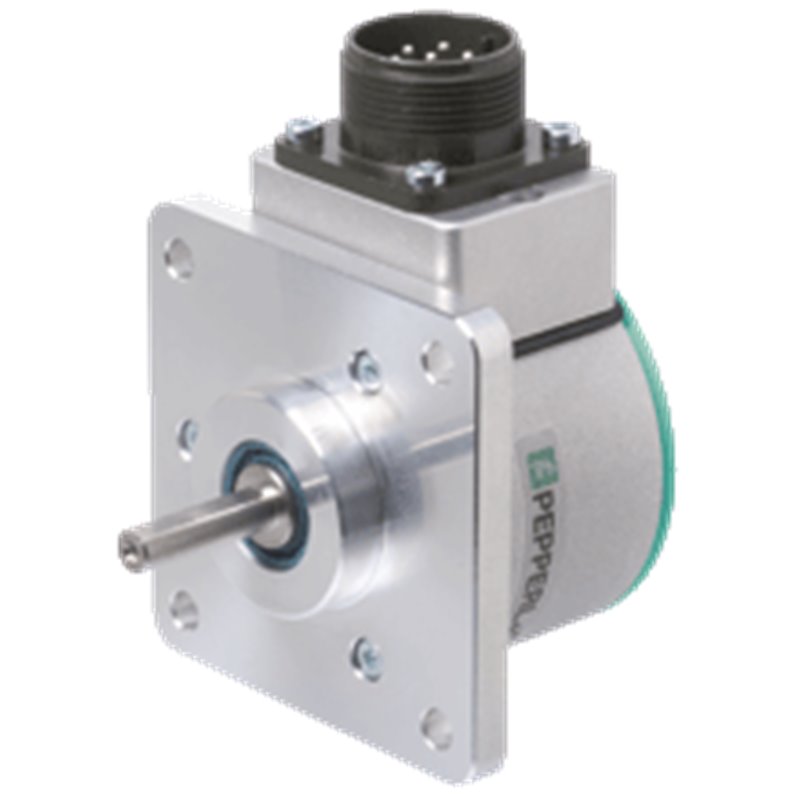

Incremental rotary encoder ENI58IL-SQ ENI58IL-SQ Housing ∅ 58 mm Solid shaft Square flange Up to 5000 ppr Universal output driver BlueBeam technology for ultimate precision

MPNs 283627-100664, PEP283627-100664, ENI58IL-S10QA7-4096UD1-ACA

Codice HS 84861000

Peso 0.4 kg

L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.

Venduto da PLC-CITY® e spedito dall'Italia

Pagamenti sicuri

e molti altri

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

12 Mesi garanzia

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

Reso disponibile entro 30 giorni

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Disponibile su richiesta

Richiedi il tuo servizio tecnico personalizzato

Affidati al nostro team di tecnici esperti per una gamma di servizi personalizzati: riparazione, programmazione, manutenzione e molto altro.

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of ENI58IL-S**Q General specifications Detection typephotoelectric sampling Linearity error± 0.025 ° Pulse countmax. 5000 Functional safety related parameters MTTFd140 a Mission Time (TM)20 a L1070 E+9 at 6000 rpm Diagnostic Coverage (DC)0 % Electrical specifications Operating voltage4.75 ... 30 V DC No-load supply currentmax. 50 mA Output Output typepush-pull or RS422 (universal output driver, output level depending on input voltage) Load currentmax. per channel 40 mA , short-circuit protected, reverse polarity protected Output frequencymax. 400 kHz Rise time300 ns Phase position A to B Pulse counts < 360090 ° ± 9 ° electrical Pulse counts ≥ 360090 ° ± 15 ° electrical Duty cycle1/2 ± 10 % Connection ConnectorM12 connector, 8-pin M12 connector, 5 pin M23 connector, 12-pin 10-pin MIL connector 7-pin MIL connector Cable∅6 mm, 4 x 2 x 0.14 mm2 Fixed cable with M12 plug. 5-pin Fixed cable with M12 plug. 8-pin Standard conformity Degree of protectionDIN EN 60529, IP65, IP67 Climatic testingDIN EN 60068-2-78 , no moisture condensation Emitted interferenceEN 61000-6-4:2007/A1:2011 Noise immunityEN 61000-6-2:2005 Shock resistanceDIN EN 60068-2-27, 300 g, 6 ms Vibration resistanceDIN EN 60068-2-6, 30 g, 10 ... 2000 Hz Approvals and certificates UL approvalE223176 , cULus Listed, General Purpose, Class 2 Power Source, Type 1 enclosure , if UL marking is marked on the product. For use in NFPA 79 Applications only. adapters providing field wiring on request Maximum permissible ambient temperaturemax. 80 °C (max. 176 °F) Ambient conditions Operating temperature-40 ... 85 °C (-40 ... 185 °F) , fixed cable-5 ... 85 °C (23 ... 185 °F) , movable cable Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Material Housing3.2315 aluminum (AlMgSi1, saltwater-proof) Flange3.2315 aluminum (AlMgSi1, saltwater-proof) ShaftSolid shaft Stainless steel Mass< 400 g without cable Rotational speedmax. 12000 min -1 for IP65 , max. 6000 min -1 for IP67 Moment of inertia≤ 35 gcm2 Starting torque≤ 1.5 Ncm Shaft load Axial40 N at max. 6000 min-110 N at max. 12000 min-1 Radial80 N at max. 6000 min-120 N at max. 12000 min-1 Classifications SystemClasscode ECLASS 11.027270501 ECLASS 10.0.127270501 ECLASS 9.027270501 ECLASS 8.027270501 ECLASS 5.127270501 ETIM 8.0EC001486 ETIM 7.0EC001486 ETIM 6.0EC001486 ETIM 5.0EC001486 UNSPSC 12.139121527 Datasheet excerpt: Technical data of ENI58IL-S**Q General specifications Detection typephotoelectric sampling Linearity error± 0.025 ° Pulse countmax. 5000 Functional safety related parameters MTTFd140 a Mission Time (TM)20 a L1070 E+9 at 6000 rpm Diagnostic Coverage (DC)0 % Electrical specifications Operating voltage4.75 ... 30 V DC No-load supply currentmax. 50 mA Output Output typepush-pull or RS422 (universal output driver, output level depending on input voltage) Load currentmax. per channel 40 mA , short-circuit protected, reverse polarity protected Output frequencymax. 400 kHz Rise time300 ns Phase position A to B Pulse counts < 360090 ° ± 9 ° electrical Pulse counts ≥ 360090 ° ± 15 ° electrical Duty cycle1/2 ± 10 % Connection ConnectorM12 connector, 8-pin M12 connector, 5 pin M23 connector, 12-pin 10-pin MIL connector 7-pin MIL connector Cable∅6 mm, 4 x 2 x 0.14 mm2 Fixed cable with M12 plug. 5-pin Fixed cable with M12 plug. 8-pin Standard conformity Degree of protectionDIN EN 60529, IP65, IP67 Climatic testingDIN EN 60068-2-78 , no moisture condensation Emitted interferenceEN 61000-6-4:2007/A1:2011 Noise immunityEN 61000-6-2:2005 Shock resistanceDIN EN 60068-2-27, 300 g, 6 ms Vibration resistanceDIN EN 60068-2-6, 30 g, 10 ... 2000 Hz Approvals and certificates UL approvalE223176 , cULus Listed, General Purpose, Class 2 Power Source, Type 1 enclosure , if UL marking is marked on the product. For use in NFPA 79 Applications only. adapters providing field wiring on request Maximum permissible ambient temperaturemax. 80 °C (max. 176 °F) Ambient conditions Operating temperature-40 ... 85 °C (-40 ... 185 °F) , fixed cable-5 ... 85 °C (23 ... 185 °F) , movable cable Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Material Housing3.2315 aluminum (AlMgSi1, saltwater-proof) Flange3.2315 aluminum (AlMgSi1, saltwater-proof) ShaftSolid shaft Stainless steel Mass< 400 g without cable Rotational speedmax. 12000 min -1 for IP65 , max. 6000 min -1 for IP67 Moment of inertia≤ 35 gcm2 Starting torque≤ 1.5 Ncm Shaft load Axial40 N at max. 6000 min-110 N at max. 12000 min-1 Radial80 N at max. 6000 min-120 N at max. 12000 min-1 Classifications SystemClasscode ECLASS 11.027270501 ECLASS 10.0.127270501 ECLASS 9.027270501 ECLASS 8.027270501 ECLASS 5.127270501 ETIM 8.0EC001486 ETIM 7.0EC001486 ETIM 6.0EC001486 ETIM 5.0EC001486 UNSPSC 12.139121527
