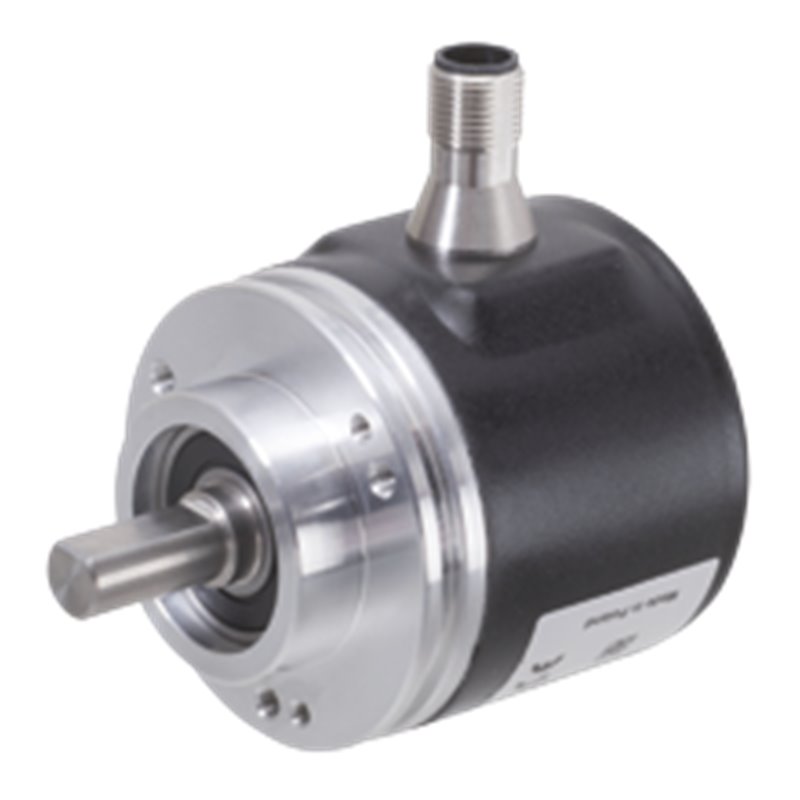

ENI58PL-S06SA5-1024CGR-RC5 PEPPERL+FUCHS - Part number: 305469-100039

Datasheet excerpt: Technical data of  ENI58PL-S*** General specifications Detection typemagnetic sampling Linearity error± 0.1 ° Pulse countconfigurable from 1 ... 16384 Functional safety related parameters MTTFd140 a Mission Time (TM)20 a L1070 E+9 at 6000 rpm Diagnostic Coverage (DC)0 % Electrical specifications Operating voltage4.75 ... 30 V DC No-load supply currentmax. 50 mA Output Output typeHTL/TTL configurable Load currentmax. per channel 50 mA , short-circuit protected, reverse polarity protected Output frequencymax. 1000 kHz Rise time300 ns Phase position A to B90 ° ± 14 ° for speed > 100 min-1 Duty cycle1/2 ± 15 % for speed > 100 min-1 Connection ConnectorM12 connector, 8-pin M12 connector, 5 pin M23 connector, 12-pin Cable∅6 mm, 4 x 2 x 0.14 mm2 Standard conformity Degree of protectionDIN EN 60529, IP65, IP67 Climatic testingDIN EN 60068-2-78 , no moisture condensation Emitted interferenceEN 61000-6-4:2007/A1:2011 Noise immunityEN 61000-6-2:2005 Shock resistanceDIN EN 60068-2-27, 100 g, 6 ms Vibration resistanceDIN EN 60068-2-6, 10 g, 10 ... 1000 Hz Ambient conditions Operating temperaturecable, flexing: -5 ... 70 °C (23 ... 158 °F)cable, fixed: -30 ... 70 °C (-22 ... 158 °F) connector models: -40 ... 85 °C (-40 ... 185 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Material Housingnickel-plated steel , painted FlangeAluminum ShaftStainless steel Massca 300 g Rotational speedmax. 12000 min -1 Moment of inertia≤ 30 gcm2 Starting torque≤ 3 Ncm for IP65 , ≤ 5 Ncm for IP67 Shaft load Axialmax. 40 N Radialmax. 110 N Factory settings Default settingoutput type HTL , pulse count 1024 , direction of rotation A before B (clockwise) Classifications SystemClasscode ECLASS 11.027270501 ECLASS 10.0.127270501 ECLASS 9.027270501 ECLASS 8.027270501 ECLASS 5.127270501 ETIM 8.0EC001486 ETIM 7.0EC001486 ETIM 6.0EC001486 ETIM 5.0EC001486 UNSPSC 12.139121527 Datasheet excerpt: Technical data of  ENI58PL-S*** General specifications Detection typemagnetic sampling Linearity error± 0.1 ° Pulse countconfigurable from 1 ... 16384 Functional safety related parameters MTTFd140 a Mission Time (TM)20 a L1070 E+9 at 6000 rpm Diagnostic Coverage (DC)0 % Electrical specifications Operating voltage4.75 ... 30 V DC No-load supply currentmax. 50 mA Output Output typeHTL/TTL configurable Load currentmax. per channel 50 mA , short-circuit protected, reverse polarity protected Output frequencymax. 1000 kHz Rise time300 ns Phase position A to B90 ° ± 14 ° for speed > 100 min-1 Duty cycle1/2 ± 15 % for speed > 100 min-1 Connection ConnectorM12 connector, 8-pin M12 connector, 5 pin M23 connector, 12-pin Cable∅6 mm, 4 x 2 x 0.14 mm2 Standard conformity Degree of protectionDIN EN 60529, IP65, IP67 Climatic testingDIN EN 60068-2-78 , no moisture condensation Emitted interferenceEN 61000-6-4:2007/A1:2011 Noise immunityEN 61000-6-2:2005 Shock resistanceDIN EN 60068-2-27, 100 g, 6 ms Vibration resistanceDIN EN 60068-2-6, 10 g, 10 ... 1000 Hz Ambient conditions Operating temperaturecable, flexing: -5 ... 70 °C (23 ... 158 °F)cable, fixed: -30 ... 70 °C (-22 ... 158 °F) connector models: -40 ... 85 °C (-40 ... 185 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Material Housingnickel-plated steel , painted FlangeAluminum ShaftStainless steel Massca 300 g Rotational speedmax. 12000 min -1 Moment of inertia≤ 30 gcm2 Starting torque≤ 3 Ncm for IP65 , ≤ 5 Ncm for IP67 Shaft load Axialmax. 40 N Radialmax. 110 N Factory settings Default settingoutput type HTL , pulse count 1024 , direction of rotation A before B (clockwise) Classifications SystemClasscode ECLASS 11.027270501 ECLASS 10.0.127270501 ECLASS 9.027270501 ECLASS 8.027270501 ECLASS 5.127270501 ETIM 8.0EC001486 ETIM 7.0EC001486 ETIM 6.0EC001486 ETIM 5.0EC001486 UNSPSC 12.139121527
