ESM58N-FAAPNR0BN-1213 PEPPERL+FUCHS - Part number: 70144265
Disponibile su richiesta

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

ESM58N-FAAPNR0BN-1213 PEPPERL+FUCHS - Part number: 70144265

PEPPERL+FUCHS

confronta
ESM58N-FAAPNR0BN-1213 PEPPERL+FUCHS - Part number: 70144265

Singleturn absolute encoder ESS58-PN ESS58-PN Industrial standard housing ∅58 mm PROFINET IRT 16 Bit singleturn Recessed hollow shaft Network loop through by means of integrated 2 port switch (IRT capable) IP address resettable No DIP switches for address setting Mechanical compatibility with all major encoders with fieldbus interface Status LEDs Singleturn absolute encoder ESS58-PN ESS58-PN Industrial standard housing ∅58 mm PROFINET IRT 16 Bit singleturn Recessed hollow shaft Network loop through by means of integrated 2 port switch (IRT capable) IP address resettable No DIP switches for address setting Mechanical compatibility with all major encoders with fieldbus interface Status LEDs

MPNs 70144265, PEP70144265, ESM58N-FAAPNR0BN-1213
Codice HS 84861000
Peso 0.36 kg

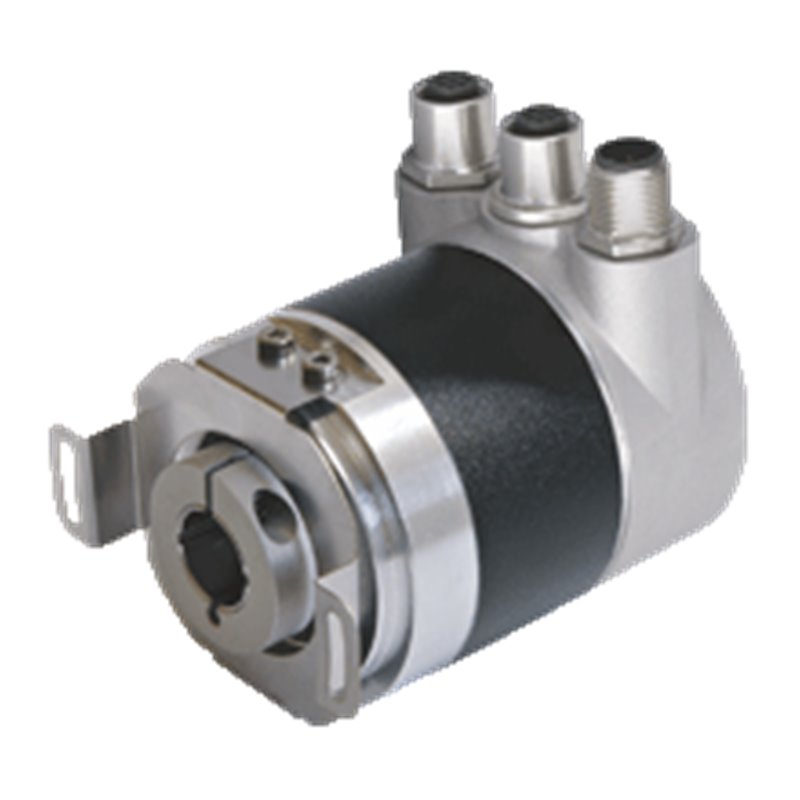

L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.
Venduto da PLC-CITY® e spedito dall'Italia

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Disponibile su richiesta

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

Richiedi il tuo servizio tecnico personalizzato

Affidati al nostro team di tecnici esperti per una gamma di servizi personalizzati: riparazione, programmazione, manutenzione e molto altro.

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of  ESS58-PN General specifications Detection typephotoelectric sampling Device typeSingleturn absolute encoder UL File NumberE223176 "For use in NFPA 79 Applications only" , if UL marking is marked on the product. Functional safety related parameters MTTFd130 a Mission Time (TM)20 a L101.9 E+11 at 6000 rpm and 20/40 N axial/radial shaft load Diagnostic Coverage (DC)0 % Electrical specifications Operating voltage10 ... 30 V DC Power consumptionmax. 4 W Linearity± 0.5 LSB (12 Bit) , Output codebinary code Code course (counting direction)programmable,cw ascending (clockwise rotation, code course ascending)cw descending (clockwise rotation, code course descending) Interface Interface typePROFINET IO Resolution Single turnup to 16 Bit Overall resolutionup to 16 Bit Physical Ethernet Transfer rate100 MBit/s Cycle time≤ 1 ms (IRT) ; ≤ 10 ms (RT) Connection ConnectorEthernet: 2 sockets M12 x 1, 4-pin, D-codedSupply: 1 plug M12 x 1, 4-pin, A-coded Standard conformity Degree of protectionDIN EN 60529,shaft side: IP64 (without shaft seal)/IP66 (with shaft seal)housing side: IP65 Stainless steel version (INOX): completely IP67 Climatic testingDIN EN 60068-2-3, no moisture condensation Emitted interferenceEN 61000-6-4:2007 Noise immunityEN 61000-6-2:2005 Shock resistanceDIN EN 60068-2-27, 100 g, 6 ms Vibration resistanceDIN EN 60068-2-6, 10 g, 10 ... 2000 Hz Approvals and certificates UL approvalcULus Listed, General Purpose, Class 2 Power Source , if UL marking is marked on the product. Ambient conditions Operating temperature-40 ... 85 °C (-40 ... 185 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Materialhousing: powder coated aluminumflange: aluminumshaft: stainless steel Combination 1housing: powder coated aluminumflange: aluminumshaft: stainless steel Combination 2 (Inox)housing: stainless steel 1.4305 / AISI 303flange: stainless steel 1.4301 / AISI 304shaft: stainless steel 1.4305 / AISI 303 Mass360 g (combination 1) 910 g (combination 2) Rotational speedmax. 12000 min -1 Moment of inertia30 gcm2 Starting torque≤ 3 Ncm (version without shaft seal) Tightening torque, fastening screwsmax. 1.8 Nm Shaft load Angle offset± 0.9 ° Axial offsetstatic: ± 0.3 mm, dynamic: ± 0.1 mm Radial offsetstatic: ± 0.5 mm, dynamic: ± 0.2 mm Classifications SystemClasscode ECLASS 11.027270502 ECLASS 10.0.127270502 ECLASS 9.027270502 ECLASS 8.027270502 ECLASS 5.127270502 ETIM 8.0EC001486 ETIM 7.0EC001486 ETIM 6.0EC001486 ETIM 5.0EC001486 UNSPSC 12.139121527 Datasheet excerpt: Technical data of  ESS58-PN General specifications Detection typephotoelectric sampling Device typeSingleturn absolute encoder UL File NumberE223176 "For use in NFPA 79 Applications only" , if UL marking is marked on the product. Functional safety related parameters MTTFd130 a Mission Time (TM)20 a L101.9 E+11 at 6000 rpm and 20/40 N axial/radial shaft load Diagnostic Coverage (DC)0 % Electrical specifications Operating voltage10 ... 30 V DC Power consumptionmax. 4 W Linearity± 0.5 LSB (12 Bit) , Output codebinary code Code course (counting direction)programmable,cw ascending (clockwise rotation, code course ascending)cw descending (clockwise rotation, code course descending) Interface Interface typePROFINET IO Resolution Single turnup to 16 Bit Overall resolutionup to 16 Bit Physical Ethernet Transfer rate100 MBit/s Cycle time≤ 1 ms (IRT) ; ≤ 10 ms (RT) Connection ConnectorEthernet: 2 sockets M12 x 1, 4-pin, D-codedSupply: 1 plug M12 x 1, 4-pin, A-coded Standard conformity Degree of protectionDIN EN 60529,shaft side: IP64 (without shaft seal)/IP66 (with shaft seal)housing side: IP65 Stainless steel version (INOX): completely IP67 Climatic testingDIN EN 60068-2-3, no moisture condensation Emitted interferenceEN 61000-6-4:2007 Noise immunityEN 61000-6-2:2005 Shock resistanceDIN EN 60068-2-27, 100 g, 6 ms Vibration resistanceDIN EN 60068-2-6, 10 g, 10 ... 2000 Hz Approvals and certificates UL approvalcULus Listed, General Purpose, Class 2 Power Source , if UL marking is marked on the product. Ambient conditions Operating temperature-40 ... 85 °C (-40 ... 185 °F) Storage temperature-40 ... 85 °C (-40 ... 185 °F) Mechanical specifications Materialhousing: powder coated aluminumflange: aluminumshaft: stainless steel Combination 1housing: powder coated aluminumflange: aluminumshaft: stainless steel Combination 2 (Inox)housing: stainless steel 1.4305 / AISI 303flange: stainless steel 1.4301 / AISI 304shaft: stainless steel 1.4305 / AISI 303 Mass360 g (combination 1) 910 g (combination 2) Rotational speedmax. 12000 min -1 Moment of inertia30 gcm2 Starting torque≤ 3 Ncm (version without shaft seal) Tightening torque, fastening screwsmax. 1.8 Nm Shaft load Angle offset± 0.9 ° Axial offsetstatic: ± 0.3 mm, dynamic: ± 0.1 mm Radial offsetstatic: ± 0.5 mm, dynamic: ± 0.2 mm Classifications SystemClasscode ECLASS 11.027270502 ECLASS 10.0.127270502 ECLASS 9.027270502 ECLASS 8.027270502 ECLASS 5.127270502 ETIM 8.0EC001486 ETIM 7.0EC001486 ETIM 6.0EC001486 ETIM 5.0EC001486 UNSPSC 12.139121527
