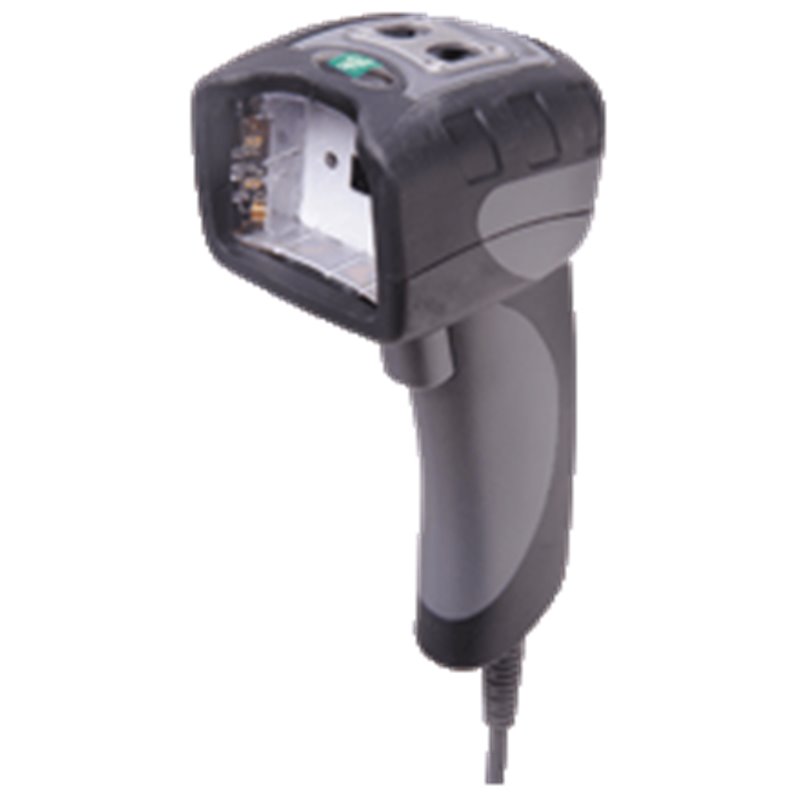

OHV1000-F223-R2 PEPPERL+FUCHS - Part number: 272204

Datasheet excerpt: Technical data of  OHV1000-F223-R2 Product Description Handheld reader for reading lasered, punched or printed 1-D and 2-D codes General specifications Light typeIntegrated LED lightning (red) Readable codes1-D Codes: Codabar, Code 11, Code 32, Code 39, Code 93, Code 128, IATA 2 of 5, Interleaved 2 of 5, GS1 DataBar, Hong Kong 2 of 5, Matrix 2 of 5, MSI Plessey, NEC 2 of 5, Pharmacode, Plessey, Straight 2 of 5, Telepen, Trioptic, UPC/EAN/JAN Stacked 1-D Codes: GS1 Composite, MicroPDF, PDF417 2-D Codes: Aztec Code, Code 49, Codablock F, Data Matrix, Han Xin, MaxiCode, Micro QR, QR Code Postal Codes: Australian Post, Intelligent Mail, Japan Post, KIX Code, Korea Post, Planet, Postnet, UK Royal Mail, UPU ID-tags Read distance0 ... 200 mm depending on the code type and reading mode Modul sizemin. 0.1 mm Ambient light limit96890 Lux Target velocityStop Nominal ratings Camera TypeCMOS Number of pixels1280 x 960 Image recordingreal-time , manually triggered Indicators/operating means Function indicatorLED green: Data carrier read Electrical specifications Supplyvia cable Interface Physical USB 2.0 , RS-232     Ambient conditions Ambient temperature-20 ... 55 °C (-4 ... 131 °F) Storage temperature-30 ... 65 °C (-22 ... 149 °F) Relative humidity5 ... 95 % non-condensing Shock and impact resistanceWithstands multible drops from 1.8 m / 6 ft onto a concrete surface Mechanical specifications Degree of protectionIP54 ConnectionSystem connector for connecting cable Material Housingplastic Mass130 g Dimensions93 mm x 53 mm x 151 mm (l x w x h) General information Scope of deliveryHandheld reader Classifications SystemClasscode ECLASS 11.027280101 ECLASS 10.0.127280101 ECLASS 9.027280101 ECLASS 8.027280101 ECLASS 5.127280101 ETIM 8.0EC002999 ETIM 7.0EC002999 ETIM 6.0EC002999 ETIM 5.0EC002999 UNSPSC 12.143211701 Datasheet excerpt: Technical data of  OHV1000-F223-R2 Product Description Handheld reader for reading lasered, punched or printed 1-D and 2-D codes General specifications Light typeIntegrated LED lightning (red) Readable codes1-D Codes: Codabar, Code 11, Code 32, Code 39, Code 93, Code 128, IATA 2 of 5, Interleaved 2 of 5, GS1 DataBar, Hong Kong 2 of 5, Matrix 2 of 5, MSI Plessey, NEC 2 of 5, Pharmacode, Plessey, Straight 2 of 5, Telepen, Trioptic, UPC/EAN/JAN Stacked 1-D Codes: GS1 Composite, MicroPDF, PDF417 2-D Codes: Aztec Code, Code 49, Codablock F, Data Matrix, Han Xin, MaxiCode, Micro QR, QR Code Postal Codes: Australian Post, Intelligent Mail, Japan Post, KIX Code, Korea Post, Planet, Postnet, UK Royal Mail, UPU ID-tags Read distance0 ... 200 mm depending on the code type and reading mode Modul sizemin. 0.1 mm Ambient light limit96890 Lux Target velocityStop Nominal ratings Camera TypeCMOS Number of pixels1280 x 960 Image recordingreal-time , manually triggered Indicators/operating means Function indicatorLED green: Data carrier read Electrical specifications Supplyvia cable Interface Physical USB 2.0 , RS-232     Ambient conditions Ambient temperature-20 ... 55 °C (-4 ... 131 °F) Storage temperature-30 ... 65 °C (-22 ... 149 °F) Relative humidity5 ... 95 % non-condensing Shock and impact resistanceWithstands multible drops from 1.8 m / 6 ft onto a concrete surface Mechanical specifications Degree of protectionIP54 ConnectionSystem connector for connecting cable Material Housingplastic Mass130 g Dimensions93 mm x 53 mm x 151 mm (l x w x h) General information Scope of deliveryHandheld reader Classifications SystemClasscode ECLASS 11.027280101 ECLASS 10.0.127280101 ECLASS 9.027280101 ECLASS 8.027280101 ECLASS 5.127280101 ETIM 8.0EC002999 ETIM 7.0EC002999 ETIM 6.0EC002999 ETIM 5.0EC002999 UNSPSC 12.143211701
