OHV200-F221-B15 PEPPERL+FUCHS - Part number: 252718

PEPPERL+FUCHS

confronta
OHV200-F221-B15 PEPPERL+FUCHS - Part number: 252718

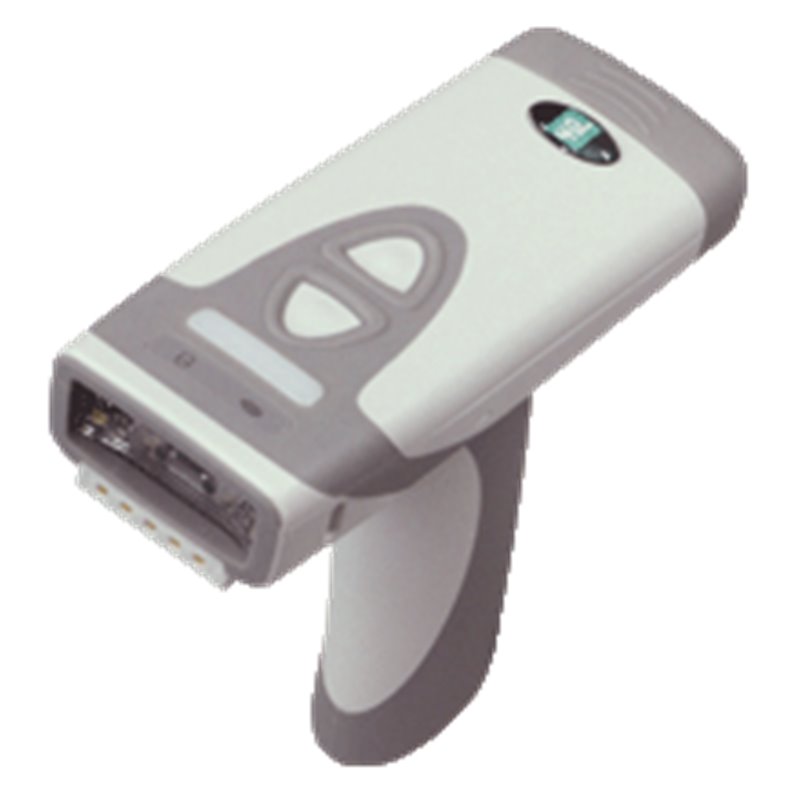

Handheld reader OHV200-F221-B15 OHV200-F221-B15 All common 1-D or 2-D codes can be read Wireless Bluetooth connection Dual lens for large read range Reads from reflective surfaces Programmable with JavaScript Batch mode for collecting data on the handheld Audible, tactile, and visual user feedback Replaceable battery with status indicator Degree of protection IP65 Handheld reader OHV200-F221-B15 OHV200-F221-B15 All common 1-D or 2-D codes can be read Wireless Bluetooth connection Dual lens for large read range Reads from reflective surfaces Programmable with JavaScript Batch mode for collecting data on the handheld Audible, tactile, and visual user feedback Replaceable battery with status indicator Degree of protection IP65

MPNs 252718, PEP252718, OHV200-F221-B15
Codice HS 84718000
Peso 0.22 kg
L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.
Venduto da PLC-CITY® e spedito dall'Italia

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Disponibile su richiesta

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

Richiedi il tuo servizio tecnico personalizzato

Affidati al nostro team di tecnici esperti per una gamma di servizi personalizzati: riparazione, programmazione, manutenzione e molto altro.

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of  OHV200-F221-B15 Product Description Handheld reader with Bluetooth for all common 1-D and 2-D codes General specifications Light typeIntegrated LED lightning (red) Readable codes1-D Codes: Codabar, Code 11, Code 32, Code 39, Code 93, Code 128, IATA 2 of 5, Interleaved 2 of 5, GS1 DataBar, Hong Kong 2 of 5, Matrix 2 of 5, MSI Plessey, NEC 2 of 5, Pharmacode, Plessey, Straight 2 of 5, Telepen, Trioptic, UPC/EAN/JAN Stacked 1-D Codes: GS1 Composite, MicroPDF, PDF417 2-D Codes: Aztec Code, Code 49, Codablock F, Data Matrix, Han Xin, MaxiCode, Micro QR, QR Code Postal Codes: Australian Post, Intelligent Mail, Japan Post, KIX Code, Korea Post, Planet, Postnet, UK Royal Mail, UPU ID-tags Read distance40 ... 310 mm depending on the code type Reading fieldmax. 190 mm x 290 mm Modul sizemin. 0.1 mm Ambient light limit96890 Lux Target velocityStop Nominal ratings Camera TypeCMOS Number of pixels1280 x 960 Image recordingreal-time , manually triggered Indicators/operating means Function indicator3 LEDs Key3 programmable function keys Electrical specifications Supplyfrom Li-Ion battery Interface Physical Bluetooth (Class II) , USB 2.0         Transmitter frequency2402 ... 2480 MHz (Bluetooth) Transmitter radiated power0.002 W Compliance with standards and directives Standard conformity Electromagnetic compatibilityETSI EN 301489-1:V1.9.2ETSI EN 301489-17:V2.2.1 EN 61000-6-1:2007EN 61000-6-2:2005/AC:2005EN 61000-6-3:2007/A1:2011/AC:2012EN 61000-6-4:2007/A1:2011 SafetyEN 60950-1:2006/A11:2009/A1:2010/A12:2011/AC:2011EN 62311:2008 Radio spectrumETSI EN 300328:V1.8.1 StandardsEN 50581:2012 Approvals and certificates FCC approvalFCC ID: QQ6-BTR11 Ambient conditions Ambient temperature-20 ... 55 °C (-4 ... 131 °F) Storage temperature-30 ... 65 °C (-22 ... 149 °F) Relative humidity5 ... 95 % non-condensing Shock and impact resistanceWithstands multible drops from 1.8 m / 6 ft onto a concrete surface Mechanical specifications Degree of protectionIP65 Material Housingplastic Mass219 g (incl. battery) Dimensions130 mm x 51 mm x 135 mm (l x w x h) General information Scope of deliveryHandheld reader + Lithium ion battery, 1300 mAh Classifications SystemClasscode ECLASS 11.027280101 ECLASS 10.0.127280101 ECLASS 9.027280101 ECLASS 8.027280101 ECLASS 5.127280101 ETIM 8.0EC002999 ETIM 7.0EC002999 ETIM 6.0EC002999 ETIM 5.0EC002999 UNSPSC 12.143211701 Datasheet excerpt: Technical data of  OHV200-F221-B15 Product Description Handheld reader with Bluetooth for all common 1-D and 2-D codes General specifications Light typeIntegrated LED lightning (red) Readable codes1-D Codes: Codabar, Code 11, Code 32, Code 39, Code 93, Code 128, IATA 2 of 5, Interleaved 2 of 5, GS1 DataBar, Hong Kong 2 of 5, Matrix 2 of 5, MSI Plessey, NEC 2 of 5, Pharmacode, Plessey, Straight 2 of 5, Telepen, Trioptic, UPC/EAN/JAN Stacked 1-D Codes: GS1 Composite, MicroPDF, PDF417 2-D Codes: Aztec Code, Code 49, Codablock F, Data Matrix, Han Xin, MaxiCode, Micro QR, QR Code Postal Codes: Australian Post, Intelligent Mail, Japan Post, KIX Code, Korea Post, Planet, Postnet, UK Royal Mail, UPU ID-tags Read distance40 ... 310 mm depending on the code type Reading fieldmax. 190 mm x 290 mm Modul sizemin. 0.1 mm Ambient light limit96890 Lux Target velocityStop Nominal ratings Camera TypeCMOS Number of pixels1280 x 960 Image recordingreal-time , manually triggered Indicators/operating means Function indicator3 LEDs Key3 programmable function keys Electrical specifications Supplyfrom Li-Ion battery Interface Physical Bluetooth (Class II) , USB 2.0         Transmitter frequency2402 ... 2480 MHz (Bluetooth) Transmitter radiated power0.002 W Compliance with standards and directives Standard conformity Electromagnetic compatibilityETSI EN 301489-1:V1.9.2ETSI EN 301489-17:V2.2.1 EN 61000-6-1:2007EN 61000-6-2:2005/AC:2005EN 61000-6-3:2007/A1:2011/AC:2012EN 61000-6-4:2007/A1:2011 SafetyEN 60950-1:2006/A11:2009/A1:2010/A12:2011/AC:2011EN 62311:2008 Radio spectrumETSI EN 300328:V1.8.1 StandardsEN 50581:2012 Approvals and certificates FCC approvalFCC ID: QQ6-BTR11 Ambient conditions Ambient temperature-20 ... 55 °C (-4 ... 131 °F) Storage temperature-30 ... 65 °C (-22 ... 149 °F) Relative humidity5 ... 95 % non-condensing Shock and impact resistanceWithstands multible drops from 1.8 m / 6 ft onto a concrete surface Mechanical specifications Degree of protectionIP65 Material Housingplastic Mass219 g (incl. battery) Dimensions130 mm x 51 mm x 135 mm (l x w x h) General information Scope of deliveryHandheld reader + Lithium ion battery, 1300 mAh Classifications SystemClasscode ECLASS 11.027280101 ECLASS 10.0.127280101 ECLASS 9.027280101 ECLASS 8.027280101 ECLASS 5.127280101 ETIM 8.0EC002999 ETIM 7.0EC002999 ETIM 6.0EC002999 ETIM 5.0EC002999 UNSPSC 12.143211701
