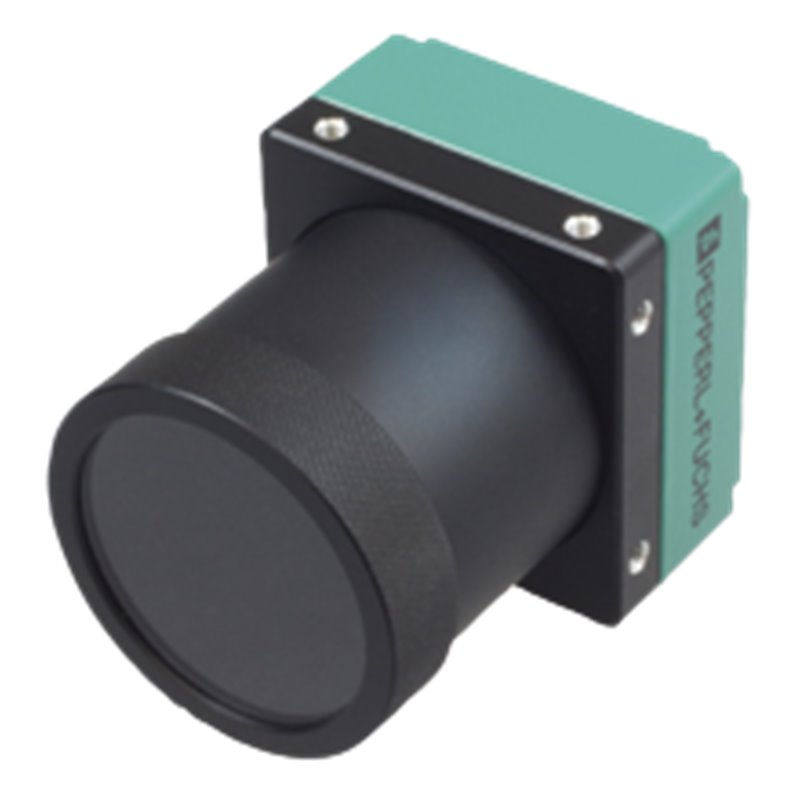

VOS2000-F226-C-S PEPPERL+FUCHS - Part number: 70114982
NFS
Non disponibile - Backorder
Da ordinare dal produttore
4.775,01 USD

Tasse di importazione escluse

Devi essere autenticato

VOS2000-F226-C-S PEPPERL+FUCHS - Part number: 70114982

PEPPERL+FUCHS

confronta
VOS2000-F226-C-S PEPPERL+FUCHS - Part number: 70114982

Vision Sensor VOS2000-F226-C-S VOS2000-F226-C-S Wide range of detection tools for flexible inspection tasks Combinable vision tools for feature detection, completeness checking, code reading, text recognition and object position checking 32 Jobs on-board can be saved Exchangeable lens (C-Mount) Easy integration with flexible programmable data output Vision Sensor VOS2000-F226-C-S VOS2000-F226-C-S Wide range of detection tools for flexible inspection tasks Combinable vision tools for feature detection, completeness checking, code reading, text recognition and object position checking 32 Jobs on-board can be saved Exchangeable lens (C-Mount) Easy integration with flexible programmable data output

MPNs 70114982, PEP70114982, VOS2000-F226-C-S
Codice HS 84718000
Peso 0.2 kg
L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.
Venduto da PLC-CITY® e spedito dall'Italia

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

NFS Condition NFS
Nuovo in Scatola Sigillata - Originale
Non disponibile - Backorder
Da ordinare dal produttore
4.775,01 USD

Tasse di importazione escluse

Devi essere autenticato
Venduto da PLC-CITY® e spedito dall'Italia
Siamo Partner Specialista di PEPPERL+FUCHS
Spedizione espressa gratuita verso Stati Uniti
Loader...
Vedi tutti i servizi di spedizione
Richiedi un preventivo per conoscere la data di consegna

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

Richiedi il tuo servizio tecnico personalizzato

Affidati al nostro team di tecnici esperti per una gamma di servizi personalizzati: riparazione, programmazione, manutenzione e molto altro.

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of  VOS2000-F226-C-S Product Description Vision sensor for advanced object detection; Resolution: 1280 x 960 pixels; Light source: external illumination; Lens: C-mount connection General specifications Light sourceExternal lighting Picture detaildependant of operating distance (see manual) Trigger modeFree-running or triggered externally Depth of focus± 5 % of the operating distance Resolution1280 x 960 pixels Image sensor1/3" CMOS monochromGlobal Shutter3.75 µm pixel size Parameterization/software Parameter assignmentParameterization via PC user interface VCT Tool Evaluation procedure Positioning and GuidanceBased on Parts or product marks, up to four Locators to detect X,Y shift and rotation Identification and VerificationOCR, 1-D and 2-D codes Detection & Pattern MatchingPixel-, contour- or edge count MeasuringDistance, angle, circle size (after calibration) Indicators/operating means LED 1Steady blue: sensor started, not set upSteady green: job loaded, ready for executionFlashing green: job loaded and being executed, capture in progressSteady red: sensor fault LED 2Flashing blue: starting (duration 20 seconds)Steady green: measurement successful (Pass)Steady blue: measurement borderline (Recycle)Steady red: measurement unsuccessful (Fail) LED 3Steady blue: warm reset or restartSteady red/green/yellow: network activity Electrical specifications Operating voltage12 ... 30 V DC No-load supply current300 mA Interface Interface typeEthernet 100 Mbit/s , RS 232 , PROFINET , Ethernet TCP/IP , EtherNet/IP , MODBUS Input Input typeoptically decoupled Inputs Input voltageLogic low (OFF): 0 ... 3 VLogic high (ON): 11 ... 30 VSwitching threshold: 12 V Control inputImage capture trigger + 2 general purpose inputs2 inputs can be used for job switching Input current8 mA ( typical ) Internal protection circuit3 kΩ / 4000 V ( rms ) Switching delaySwitch-on time (ON): 20 µsSwitch-off time (OFF): 10 µsImage capture trigger: 62 µs (until image capture is triggered) Output Output type3 general purpose outputs , freely programmable , optically decoupled Switching voltagemax. 30 V Switching currentmax. 100 mA each output Switching delaySwitch-on time (ON): 150 µsSwitch-off time (OFF): 50 µs Standard conformity Emitted interferenceEN 61000-6-4:2007+A1:2011     Noise immunityEN 61000-6-2:2005     Approvals and certificates ApprovalsCE Ambient conditions Ambient temperature0 ... 50 °C (32 ... 122 °F) Storage temperature-20 ... 60 °C (-4 ... 140 °F) Mechanical specifications Housing length61 mm Housing width58 mm Housing height57 mm Degree of protectionIP67 (with mounted lens protection cover) Connection8-pin M12 socket A-coded ; 12-pin M12 socket Material Housinganodized aluminum InstallationMounting bracket Mass200 g Objective connectionC-mount connection for external lens with different focal lengths Classifications SystemClasscode ECLASS 11.027310101 ECLASS 10.0.127310101 ECLASS 9.027310101 ECLASS 8.027310101 ECLASS 5.127310101 ETIM 8.0EC002999 ETIM 7.0EC002999 ETIM 6.0EC002999 ETIM 5.0EC002999 UNSPSC 12.143211711 Datasheet excerpt: Technical data of  VOS2000-F226-C-S Product Description Vision sensor for advanced object detection; Resolution: 1280 x 960 pixels; Light source: external illumination; Lens: C-mount connection General specifications Light sourceExternal lighting Picture detaildependant of operating distance (see manual) Trigger modeFree-running or triggered externally Depth of focus± 5 % of the operating distance Resolution1280 x 960 pixels Image sensor1/3" CMOS monochromGlobal Shutter3.75 µm pixel size Parameterization/software Parameter assignmentParameterization via PC user interface VCT Tool Evaluation procedure Positioning and GuidanceBased on Parts or product marks, up to four Locators to detect X,Y shift and rotation Identification and VerificationOCR, 1-D and 2-D codes Detection & Pattern MatchingPixel-, contour- or edge count MeasuringDistance, angle, circle size (after calibration) Indicators/operating means LED 1Steady blue: sensor started, not set upSteady green: job loaded, ready for executionFlashing green: job loaded and being executed, capture in progressSteady red: sensor fault LED 2Flashing blue: starting (duration 20 seconds)Steady green: measurement successful (Pass)Steady blue: measurement borderline (Recycle)Steady red: measurement unsuccessful (Fail) LED 3Steady blue: warm reset or restartSteady red/green/yellow: network activity Electrical specifications Operating voltage12 ... 30 V DC No-load supply current300 mA Interface Interface typeEthernet 100 Mbit/s , RS 232 , PROFINET , Ethernet TCP/IP , EtherNet/IP , MODBUS Input Input typeoptically decoupled Inputs Input voltageLogic low (OFF): 0 ... 3 VLogic high (ON): 11 ... 30 VSwitching threshold: 12 V Control inputImage capture trigger + 2 general purpose inputs2 inputs can be used for job switching Input current8 mA ( typical ) Internal protection circuit3 kΩ / 4000 V ( rms ) Switching delaySwitch-on time (ON): 20 µsSwitch-off time (OFF): 10 µsImage capture trigger: 62 µs (until image capture is triggered) Output Output type3 general purpose outputs , freely programmable , optically decoupled Switching voltagemax. 30 V Switching currentmax. 100 mA each output Switching delaySwitch-on time (ON): 150 µsSwitch-off time (OFF): 50 µs Standard conformity Emitted interferenceEN 61000-6-4:2007+A1:2011     Noise immunityEN 61000-6-2:2005     Approvals and certificates ApprovalsCE Ambient conditions Ambient temperature0 ... 50 °C (32 ... 122 °F) Storage temperature-20 ... 60 °C (-4 ... 140 °F) Mechanical specifications Housing length61 mm Housing width58 mm Housing height57 mm Degree of protectionIP67 (with mounted lens protection cover) Connection8-pin M12 socket A-coded ; 12-pin M12 socket Material Housinganodized aluminum InstallationMounting bracket Mass200 g Objective connectionC-mount connection for external lens with different focal lengths Classifications SystemClasscode ECLASS 11.027310101 ECLASS 10.0.127310101 ECLASS 9.027310101 ECLASS 8.027310101 ECLASS 5.127310101 ETIM 8.0EC002999 ETIM 7.0EC002999 ETIM 6.0EC002999 ETIM 5.0EC002999 UNSPSC 12.143211711
