DT4S-G-BK3M-PUR-O1 PEPPERL+FUCHS - Part number: 305290

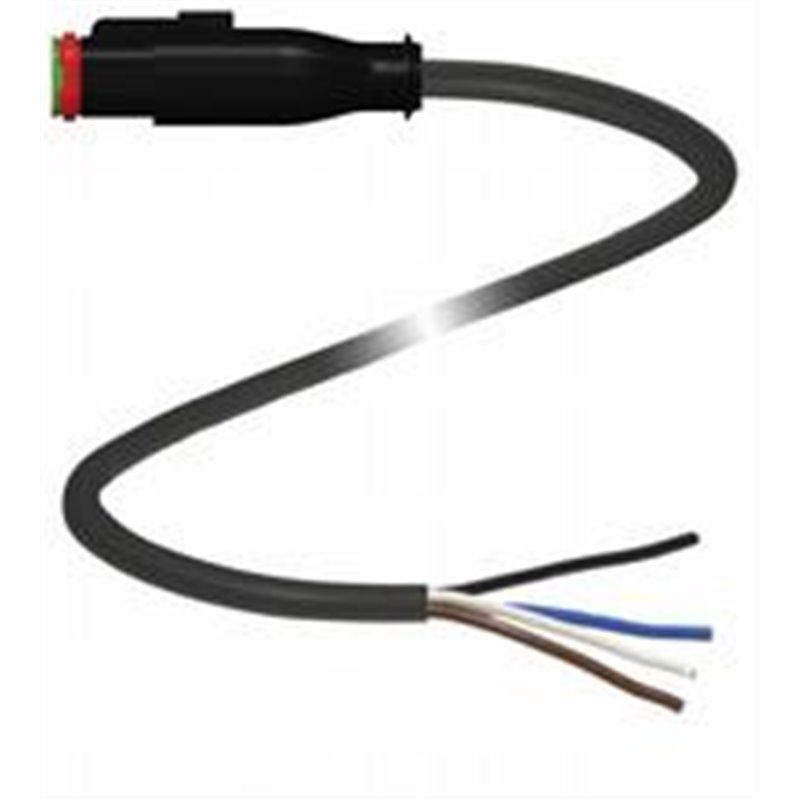

Datasheet excerpt: Technical data of  DT4S-G-BK3M-PUR-O1 Product Description Female cordset single-ended Deutsch socket straight, 4-pin, PUR cable black, drag chain suitable, outdoor General specifications Connector 1 Connectionsocket Construction typeDeutsch connectors Stylestraight LockingSnap locking Number of pins4 Connector 2 Connectioncable end Electrical specifications Operating voltagemax. 48 V AC / 60 V DC Operating currentmax. 8 A Per contact Conformity Degree of protectionEN 60529 FlammabilityUL 1581; DIN EN 60332-2-2 Halogen-freeDIN VDE 0472-815 / DIN EN 50267-2-1 Oil resistanceDIN EN 60811-2-1 Ambient conditions Ambient temperature Plug connector-40 ... 125 °C (-40 ... 257 °F) Cable, fixed-50 ... 105 °C (-58 ... 221 °F) Cable, flexing-30 ... 105 °C (-22 ... 221 °F) Pollution degree3 Mechanical specifications Plug connector Loosening protectionavailable Degree of protectionIP68 Cableaccording to IEC/EN 60228 (DIN VDE 0295) class 6 Sheath diameter4.8 mm Bending radius> 10 x cable diameter, moving > 5 x cable diameter, fixed Sheath stripping forcemax. 50 N / 300 mm Sheath colorblack (similar to RAL 7021) Number of cores4 Core cross-section0.5 mm2 Cores colorCore 1: brown Core 2: white Core 3: blue Core 4: black Core construction28 x 0.15 mm ∅ 1 x symmetrically twisted Length3 m Cable codeLi 9Y 11Y 4 x 0,50 Drag chain suitability Drag chain cyclesmin. 2000000 Motion velocitymax. 3 m/s Traverse distance10 m Accelerationmax. 10 m/s2 Material Halogen-freeyes Plug connector BodyPA, black Contact surfaceNi FlammabilityV-0 Cable SheathingPUR based on polyether Core insulationPP Salt water resistanceyes UV resistanceyes Chemical resistancegood Oil resistanceyes Cooling lubricant resistanceyes Microbial resistanceyes Hydrolysis resistanceyes FlammabilityFT2 Classifications SystemClasscode ECLASS 11.027060311 ECLASS 10.0.127060311 ECLASS 9.027060311 ECLASS 8.027279218 ECLASS 5.127279201 ETIM 8.0EC001855 ETIM 7.0EC001855 ETIM 6.0EC001855 ETIM 5.0EC002585 UNSPSC 12.131251501 Datasheet excerpt: Technical data of  DT4S-G-BK3M-PUR-O1 Product Description Female cordset single-ended Deutsch socket straight, 4-pin, PUR cable black, drag chain suitable, outdoor General specifications Connector 1 Connectionsocket Construction typeDeutsch connectors Stylestraight LockingSnap locking Number of pins4 Connector 2 Connectioncable end Electrical specifications Operating voltagemax. 48 V AC / 60 V DC Operating currentmax. 8 A Per contact Conformity Degree of protectionEN 60529 FlammabilityUL 1581; DIN EN 60332-2-2 Halogen-freeDIN VDE 0472-815 / DIN EN 50267-2-1 Oil resistanceDIN EN 60811-2-1 Ambient conditions Ambient temperature Plug connector-40 ... 125 °C (-40 ... 257 °F) Cable, fixed-50 ... 105 °C (-58 ... 221 °F) Cable, flexing-30 ... 105 °C (-22 ... 221 °F) Pollution degree3 Mechanical specifications Plug connector Loosening protectionavailable Degree of protectionIP68 Cableaccording to IEC/EN 60228 (DIN VDE 0295) class 6 Sheath diameter4.8 mm Bending radius> 10 x cable diameter, moving > 5 x cable diameter, fixed Sheath stripping forcemax. 50 N / 300 mm Sheath colorblack (similar to RAL 7021) Number of cores4 Core cross-section0.5 mm2 Cores colorCore 1: brown Core 2: white Core 3: blue Core 4: black Core construction28 x 0.15 mm ∅ 1 x symmetrically twisted Length3 m Cable codeLi 9Y 11Y 4 x 0,50 Drag chain suitability Drag chain cyclesmin. 2000000 Motion velocitymax. 3 m/s Traverse distance10 m Accelerationmax. 10 m/s2 Material Halogen-freeyes Plug connector BodyPA, black Contact surfaceNi FlammabilityV-0 Cable SheathingPUR based on polyether Core insulationPP Salt water resistanceyes UV resistanceyes Chemical resistancegood Oil resistanceyes Cooling lubricant resistanceyes Microbial resistanceyes Hydrolysis resistanceyes FlammabilityFT2 Classifications SystemClasscode ECLASS 11.027060311 ECLASS 10.0.127060311 ECLASS 9.027060311 ECLASS 8.027279218 ECLASS 5.127279201 ETIM 8.0EC001855 ETIM 7.0EC001855 ETIM 6.0EC001855 ETIM 5.0EC002585 UNSPSC 12.131251501
