V1-G-3M-PVC PEPPERL+FUCHS - Part number: 188005

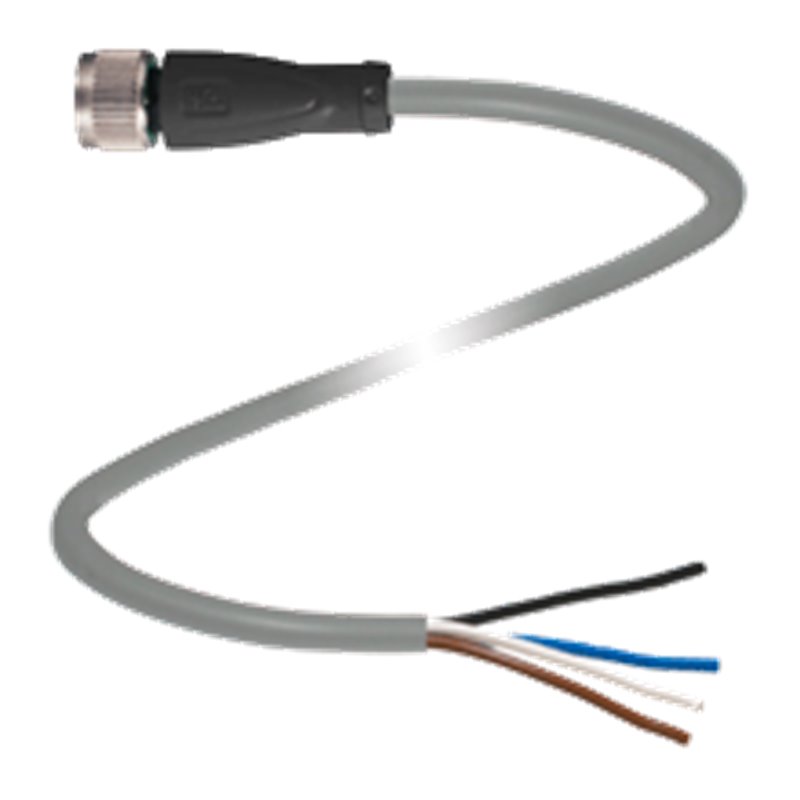

Datasheet excerpt: Technical data of  V1-G-3M-PVC Product Description Female cordset single-ended M12 straight A-coded, 4-pin, PVC cable grey General specifications Connector 1 Connectionsocket Construction typeM12 Stylestraight Lockingscrew connection Number of pins4 CodingA-coded Connector 2 Connectioncable end Electrical specifications Operating voltagemax. 250 V AC/DC Operating currentmax. 4 A Conformity Degree of protectionEN 60529 Plug connectionconnector M12 x 1 : IEC 61076-2-101 FlammabilityIEC 60332-2-2 Ambient conditions Ambient temperature Plug connector-40 ... 90 °C (-40 ... 194 °F) Cable, fixed-25 ... 70 °C (-13 ... 158 °F) Cable, flexing-5 ... 70 °C (23 ... 158 °F) Pollution degree3 Mechanical specifications Plug connector Tightening torque0.6 Nm Loosening protectionavailable Tool installationstraight knurling and hexagon nut SW = 14 mm Mating cyclesmin. 100 Degree of protectionIP68 / IP69 Cableaccording to IEC/EN 60228 (DIN VDE 0295) class 5 Sheath diameter4.8 mm Bending radius> 10 x cable diameter, moving Sheath stripping forcemax. 80 N / 300 mm Sheath colorgrey (similar to RAL 7001) Number of cores4 Core cross section0.34 mm2 Cores colorCore 1: brown Core 2: white Core 3: blue Core 4: black Core construction19 x 0.15 mm ∅ Length3 m Cable codeLi Y YM 4 x 0,34 Material Plug connector Screw connectionZinc diecast, nickel-plated BodyTPU, black SealFKM Contact surfaceAu FlammabilityV-2 Cable SheathingPVC Core insulationPVC Flammabilityflame-resistant Classifications SystemClasscode ECLASS 11.027060311 ECLASS 10.0.127060311 ECLASS 9.027060311 ECLASS 8.027279218 ECLASS 5.127279201 ETIM 8.0EC001855 ETIM 7.0EC001855 ETIM 6.0EC001855 ETIM 5.0EC002585 UNSPSC 12.131251501 Datasheet excerpt: Technical data of  V1-G-3M-PVC Product Description Female cordset single-ended M12 straight A-coded, 4-pin, PVC cable grey General specifications Connector 1 Connectionsocket Construction typeM12 Stylestraight Lockingscrew connection Number of pins4 CodingA-coded Connector 2 Connectioncable end Electrical specifications Operating voltagemax. 250 V AC/DC Operating currentmax. 4 A Conformity Degree of protectionEN 60529 Plug connectionconnector M12 x 1 : IEC 61076-2-101 FlammabilityIEC 60332-2-2 Ambient conditions Ambient temperature Plug connector-40 ... 90 °C (-40 ... 194 °F) Cable, fixed-25 ... 70 °C (-13 ... 158 °F) Cable, flexing-5 ... 70 °C (23 ... 158 °F) Pollution degree3 Mechanical specifications Plug connector Tightening torque0.6 Nm Loosening protectionavailable Tool installationstraight knurling and hexagon nut SW = 14 mm Mating cyclesmin. 100 Degree of protectionIP68 / IP69 Cableaccording to IEC/EN 60228 (DIN VDE 0295) class 5 Sheath diameter4.8 mm Bending radius> 10 x cable diameter, moving Sheath stripping forcemax. 80 N / 300 mm Sheath colorgrey (similar to RAL 7001) Number of cores4 Core cross section0.34 mm2 Cores colorCore 1: brown Core 2: white Core 3: blue Core 4: black Core construction19 x 0.15 mm ∅ Length3 m Cable codeLi Y YM 4 x 0,34 Material Plug connector Screw connectionZinc diecast, nickel-plated BodyTPU, black SealFKM Contact surfaceAu FlammabilityV-2 Cable SheathingPVC Core insulationPVC Flammabilityflame-resistant Classifications SystemClasscode ECLASS 11.027060311 ECLASS 10.0.127060311 ECLASS 9.027060311 ECLASS 8.027279218 ECLASS 5.127279201 ETIM 8.0EC001855 ETIM 7.0EC001855 ETIM 6.0EC001855 ETIM 5.0EC002585 UNSPSC 12.131251501
