V1-G-N-5M-PUR PEPPERL+FUCHS - Part number: 034536

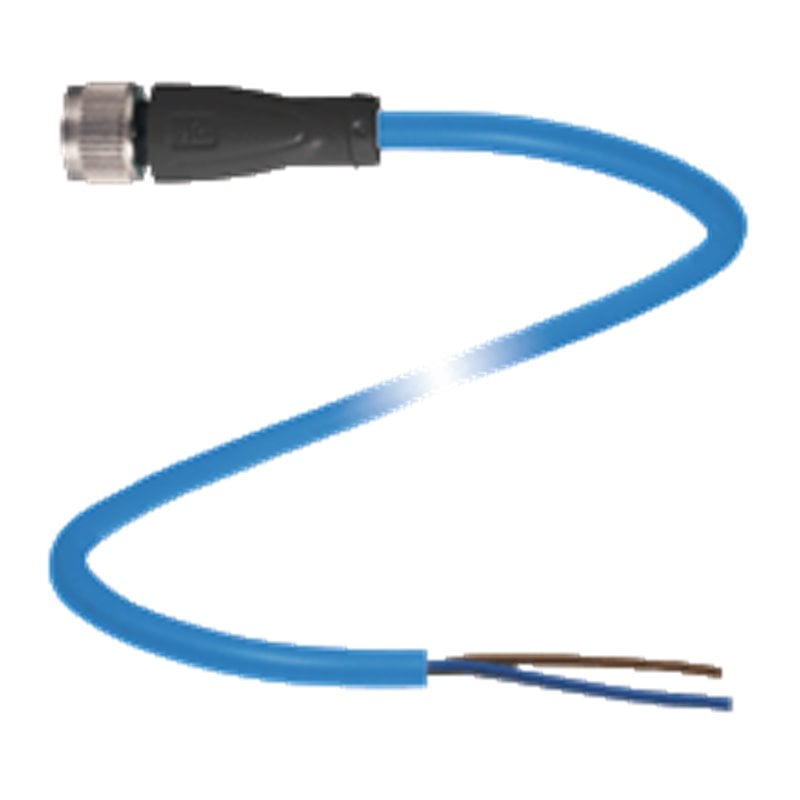

Datasheet excerpt: Technical data of  V1-G-N-5M-PUR Product Description Female cordset single-ended M12 straight A-coded, 2-pin, PUR cable blue, NAMUR General specifications Connector 1 Connectionsocket Construction typeM12 Stylestraight Lockingscrew connection Number of pins2 CodingA-coded Connector 2 Connectioncable end Electrical specifications Operating voltagemax. 250 V AC/DC Operating current4 A Inductance per unit lengthmax. 0.057 Ω/m Capacitance per unit length102.4 nF/km Inductance per unit length0.49 mH/km Conformity Degree of protectionEN 60529 Plug connectionconnector M12 x 1 : IEC 61076-2-101 Ambient conditions Ambient temperature Plug connector-40 ... 90 °C (-40 ... 194 °F) Cable, fixed-40 ... 80 °C (-40 ... 176 °F) Cable, flexing-20 ... 80 °C (-4 ... 176 °F) Pollution degree3 Mechanical specifications Plug connector Tightening torque0.6 Nm Loosening protectionavailable Tool installationstraight knurling and hexagon nut SW = 14 mm Mating cyclesmin. 100 Degree of protectionIP68 / IP69 Cableaccording to IEC/EN 60228 (DIN VDE 0295) class 6 Sheath diameter4.8 mm Bending radius> 15 x cable diameter, moving > 10 x cable diameter, fixed Sheath colorblue (similar to RAL 5015) Number of cores2 Core cross section0.34 mm2 Cores colorCore 1: brown Core 2: blue Core construction42 x 0.1 mm ∅ Length5 m Cable codeLi FY 11Y 2 x 0.34 Material Plug connector Screw connectionZinc diecast, nickel-plated BodyTPU, black SealFKM Contact surfaceAu FlammabilityV-2 Cable SheathingPUR based on polyether Core insulationPVC FlammabilityHB Classifications SystemClasscode ECLASS 11.027060311 ECLASS 10.0.127060311 ECLASS 9.027060311 ECLASS 8.027279218 ECLASS 5.127279201 ETIM 8.0EC001855 ETIM 7.0EC001855 ETIM 6.0EC001855 ETIM 5.0EC002585 UNSPSC 12.131251501 Datasheet excerpt: Technical data of  V1-G-N-5M-PUR Product Description Female cordset single-ended M12 straight A-coded, 2-pin, PUR cable blue, NAMUR General specifications Connector 1 Connectionsocket Construction typeM12 Stylestraight Lockingscrew connection Number of pins2 CodingA-coded Connector 2 Connectioncable end Electrical specifications Operating voltagemax. 250 V AC/DC Operating current4 A Inductance per unit lengthmax. 0.057 Ω/m Capacitance per unit length102.4 nF/km Inductance per unit length0.49 mH/km Conformity Degree of protectionEN 60529 Plug connectionconnector M12 x 1 : IEC 61076-2-101 Ambient conditions Ambient temperature Plug connector-40 ... 90 °C (-40 ... 194 °F) Cable, fixed-40 ... 80 °C (-40 ... 176 °F) Cable, flexing-20 ... 80 °C (-4 ... 176 °F) Pollution degree3 Mechanical specifications Plug connector Tightening torque0.6 Nm Loosening protectionavailable Tool installationstraight knurling and hexagon nut SW = 14 mm Mating cyclesmin. 100 Degree of protectionIP68 / IP69 Cableaccording to IEC/EN 60228 (DIN VDE 0295) class 6 Sheath diameter4.8 mm Bending radius> 15 x cable diameter, moving > 10 x cable diameter, fixed Sheath colorblue (similar to RAL 5015) Number of cores2 Core cross section0.34 mm2 Cores colorCore 1: brown Core 2: blue Core construction42 x 0.1 mm ∅ Length5 m Cable codeLi FY 11Y 2 x 0.34 Material Plug connector Screw connectionZinc diecast, nickel-plated BodyTPU, black SealFKM Contact surfaceAu FlammabilityV-2 Cable SheathingPUR based on polyether Core insulationPVC FlammabilityHB Classifications SystemClasscode ECLASS 11.027060311 ECLASS 10.0.127060311 ECLASS 9.027060311 ECLASS 8.027279218 ECLASS 5.127279201 ETIM 8.0EC001855 ETIM 7.0EC001855 ETIM 6.0EC001855 ETIM 5.0EC002585 UNSPSC 12.131251501
