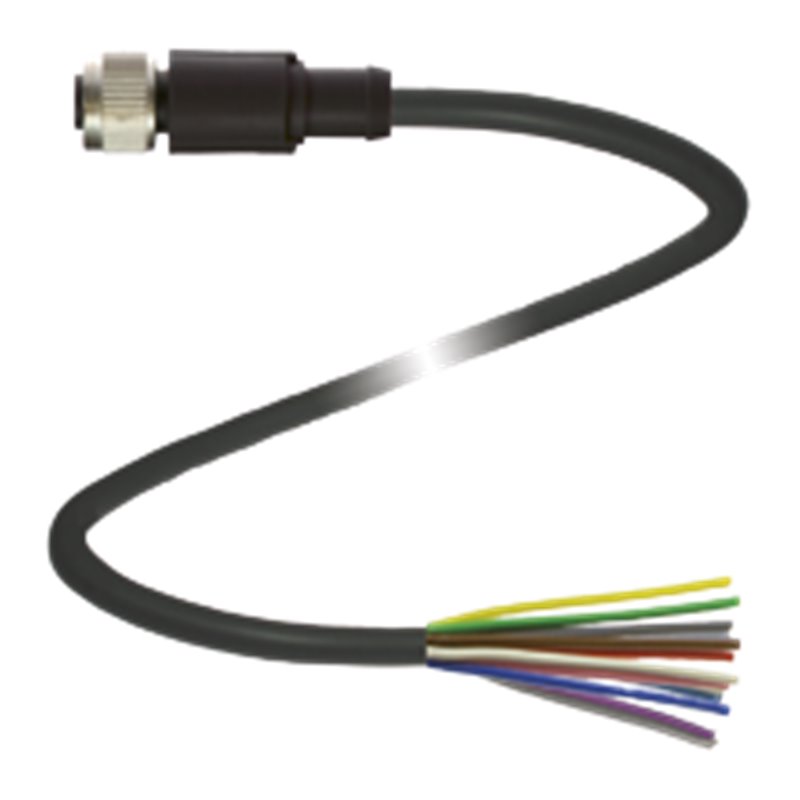

V112-G-BK10M-PUR PEPPERL+FUCHS - Part number: 299856

Datasheet excerpt: Technical data of  V112-G-BK10M-PUR Product Description Female cordset single-ended M12 straight A-coded, 12-pin, PUR cable black General specifications Connector 1 Connectionsocket Construction typeM12 Stylestraight Lockingscrew connection Number of pins12 CodingA-coded Connector 2 Connectioncable end Electrical specifications Operating voltage30 V Operating current1.5 A Surge protectioncategory II Conformity Degree of protectionEN 60529 Plug connectionconnector M12 x 1 : IEC 61076-2-101 Microbial resistanceEN 50396 / DIN VDE 0282-10 Hydrolysis resistanceEN 50396 / DIN VDE 0282-10 Oil resistanceDIN EN 60811-2-1 / DIN VDE 0472 T.803, test type B Ambient conditions Ambient temperature Plug connector-25 ... 85 °C (-13 ... 185 °F) Cable, fixed-40 ... 80 °C (-40 ... 176 °F) Cable, flexing-5 ... 80 °C (23 ... 176 °F) Pollution degree3 Mechanical specifications Plug connector Tightening torque0.4 Nm Tool installationstraight knurling Mating cyclesmin. 100 Degree of protectionIP65/IP67/IP68 Cableaccording to IEC/EN 60228 (DIN VDE 0295) class 5 Sheath diameter7.2 mm Bending radius54 mm Sheath colorblack (similar to RAL 9005) Number of cores12 Core cross-section0.14 mm2 Cores colorCore 1: brown Core 2: blue Core 3: white Core 4: green Core 5: pink Core 6: yellow Core 7: black Core 8: greyCore 9: redCore 10: violetCore 11: grey/pinkCore 12: red/blue Core construction18 x 0.1 mm Length10 m Drag chain suitability Drag chain cyclesmin. 4000000 Motion velocitymax. 3 m/s Traverse distance10 m Accelerationmax. 10 m/s2 Material Halogen-freeyes Plug connector Screw connectionZinc diecast, nickel-plated BodyTPU, black SealNBR Contact surfaceNi/Au FlammabilityV-0 Cable SheathingPUR Core insulationPP Classifications SystemClasscode ECLASS 11.027060311 ECLASS 10.0.127060311 ECLASS 9.027060311 ECLASS 8.027279218 ECLASS 5.127279201 ETIM 8.0EC001855 ETIM 7.0EC001855 ETIM 6.0EC001855 ETIM 5.0EC002585 UNSPSC 12.131251501 Datasheet excerpt: Technical data of  V112-G-BK10M-PUR Product Description Female cordset single-ended M12 straight A-coded, 12-pin, PUR cable black General specifications Connector 1 Connectionsocket Construction typeM12 Stylestraight Lockingscrew connection Number of pins12 CodingA-coded Connector 2 Connectioncable end Electrical specifications Operating voltage30 V Operating current1.5 A Surge protectioncategory II Conformity Degree of protectionEN 60529 Plug connectionconnector M12 x 1 : IEC 61076-2-101 Microbial resistanceEN 50396 / DIN VDE 0282-10 Hydrolysis resistanceEN 50396 / DIN VDE 0282-10 Oil resistanceDIN EN 60811-2-1 / DIN VDE 0472 T.803, test type B Ambient conditions Ambient temperature Plug connector-25 ... 85 °C (-13 ... 185 °F) Cable, fixed-40 ... 80 °C (-40 ... 176 °F) Cable, flexing-5 ... 80 °C (23 ... 176 °F) Pollution degree3 Mechanical specifications Plug connector Tightening torque0.4 Nm Tool installationstraight knurling Mating cyclesmin. 100 Degree of protectionIP65/IP67/IP68 Cableaccording to IEC/EN 60228 (DIN VDE 0295) class 5 Sheath diameter7.2 mm Bending radius54 mm Sheath colorblack (similar to RAL 9005) Number of cores12 Core cross-section0.14 mm2 Cores colorCore 1: brown Core 2: blue Core 3: white Core 4: green Core 5: pink Core 6: yellow Core 7: black Core 8: greyCore 9: redCore 10: violetCore 11: grey/pinkCore 12: red/blue Core construction18 x 0.1 mm Length10 m Drag chain suitability Drag chain cyclesmin. 4000000 Motion velocitymax. 3 m/s Traverse distance10 m Accelerationmax. 10 m/s2 Material Halogen-freeyes Plug connector Screw connectionZinc diecast, nickel-plated BodyTPU, black SealNBR Contact surfaceNi/Au FlammabilityV-0 Cable SheathingPUR Core insulationPP Classifications SystemClasscode ECLASS 11.027060311 ECLASS 10.0.127060311 ECLASS 9.027060311 ECLASS 8.027279218 ECLASS 5.127279201 ETIM 8.0EC001855 ETIM 7.0EC001855 ETIM 6.0EC001855 ETIM 5.0EC002585 UNSPSC 12.131251501
