V112S-G-BK2M-PUR-ABG PEPPERL+FUCHS - Part number: 70138364

PEPPERL+FUCHS

confronta
V112S-G-BK2M-PUR-ABG PEPPERL+FUCHS - Part number: 70138364

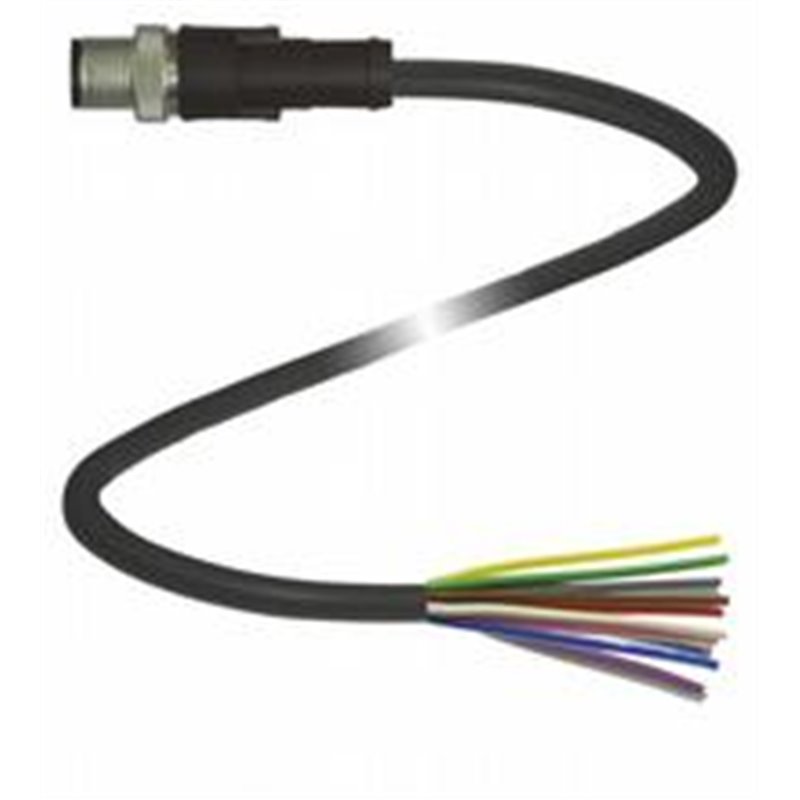

Cable connector, shielded V112S-G-BK2M-PUR-ABG V112S-G-BK2M-PUR-ABG Suitable for drag chains and abrasion resistant Degree of protection IP65 / IP67 / IP68 Resistant to microbes and hydrolysis Halogen-free Immunity to vibration, with mechanical latching Knurled nut suitable for tool assembly Cable connector, shielded V112S-G-BK2M-PUR-ABG V112S-G-BK2M-PUR-ABG Suitable for drag chains and abrasion resistant Degree of protection IP65 / IP67 / IP68 Resistant to microbes and hydrolysis Halogen-free Immunity to vibration, with mechanical latching Knurled nut suitable for tool assembly

MPNs 70138364, PEP70138364, V112S-G-BK2M-PUR-ABG
Codice HS 85369090
Peso N/A
L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.
Venduto da PLC-CITY® e spedito dall'Italia

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Disponibile su richiesta

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of  V112S-G-BK2M-PUR-ABG Product Description Male cordset single-ended M12 straight A-coded, 12-pin, PUR cable black, shielded General specifications Connector 1 Connectionplug Construction typeM12 Stylestraight Lockingscrew connection Number of pins12 CodingA-coded Connector 2 Connectioncable end Electrical specifications Operating voltage30 V Operating current1.5 A Conformity Degree of protectionEN 60529 Plug connectionconnector M12 x 1 : IEC 61076-2-101 FlammabilityIEC 60332-1-2 , UL 1581 Microbial resistanceDIN VDE 0282-10 / EN 50396 Hydrolysis resistanceEN 50396 / DIN VDE 0282-10 Oil resistanceDIN EN 60811-2-1 / DIN VDE 0472 T.803, test type B Ambient conditions Ambient temperature Plug connector-25 ... 85 °C (-13 ... 185 °F) Cable, fixed-30 ... 80 °C (-22 ... 176 °F) Cable, flexing-5 ... 80 °C (23 ... 176 °F) Pollution degree3 Mechanical specifications Plug connector Tightening torque0.4 Nm Loosening protectionavailable Tool installationstraight knurling Mating cyclesmin. 100 Shieldingshield connected to screw connection Degree of protectionIP65/IP67/IP68 Cableaccording to IEC/EN 60228 (DIN VDE 0295) class 5 Sheath diameter8.5 mm Bending radius> 10 x cable diameter, moving > 5 x cable diameter, fixed Sheath colorblack (similar to RAL 9005) Number of cores12 Core cross section0.14 mm2 Cores colorCore 1: brown Core 2: blue Core 3: white Core 4: green Core 5: pink Core 6: yellow Core 7: black Core 8: greyCore 9: redCore 10: violetCore 11: grey/pinkCore 12: red/blue Core construction18 x 0.1 mm ∅ twisted pairs Shieldtinned copper braiding, 85 % coverage Length2 m Cable codeLSPYwC11Y Drag chain suitability Drag chain cyclesmin. 2000000 Motion velocitymax. 3 m/s Traverse distance10 m Accelerationmax. 10 m/s2 Material Halogen-freeyes Plug connector Screw connectionZinc diecast, nickel-plated BodyTPU, black SealNBR Contact surfaceNi/Au FlammabilityV-0 Cable SheathingPUR Core insulationPVC FlammabilityVW-1 Classifications SystemClasscode ECLASS 11.027060311 ECLASS 10.0.127060311 ECLASS 9.027060311 ECLASS 8.027279218 ECLASS 5.127279201 ETIM 8.0EC001855 ETIM 7.0EC001855 ETIM 6.0EC001855 ETIM 5.0EC002585 UNSPSC 12.131251501 Datasheet excerpt: Technical data of  V112S-G-BK2M-PUR-ABG Product Description Male cordset single-ended M12 straight A-coded, 12-pin, PUR cable black, shielded General specifications Connector 1 Connectionplug Construction typeM12 Stylestraight Lockingscrew connection Number of pins12 CodingA-coded Connector 2 Connectioncable end Electrical specifications Operating voltage30 V Operating current1.5 A Conformity Degree of protectionEN 60529 Plug connectionconnector M12 x 1 : IEC 61076-2-101 FlammabilityIEC 60332-1-2 , UL 1581 Microbial resistanceDIN VDE 0282-10 / EN 50396 Hydrolysis resistanceEN 50396 / DIN VDE 0282-10 Oil resistanceDIN EN 60811-2-1 / DIN VDE 0472 T.803, test type B Ambient conditions Ambient temperature Plug connector-25 ... 85 °C (-13 ... 185 °F) Cable, fixed-30 ... 80 °C (-22 ... 176 °F) Cable, flexing-5 ... 80 °C (23 ... 176 °F) Pollution degree3 Mechanical specifications Plug connector Tightening torque0.4 Nm Loosening protectionavailable Tool installationstraight knurling Mating cyclesmin. 100 Shieldingshield connected to screw connection Degree of protectionIP65/IP67/IP68 Cableaccording to IEC/EN 60228 (DIN VDE 0295) class 5 Sheath diameter8.5 mm Bending radius> 10 x cable diameter, moving > 5 x cable diameter, fixed Sheath colorblack (similar to RAL 9005) Number of cores12 Core cross section0.14 mm2 Cores colorCore 1: brown Core 2: blue Core 3: white Core 4: green Core 5: pink Core 6: yellow Core 7: black Core 8: greyCore 9: redCore 10: violetCore 11: grey/pinkCore 12: red/blue Core construction18 x 0.1 mm ∅ twisted pairs Shieldtinned copper braiding, 85 % coverage Length2 m Cable codeLSPYwC11Y Drag chain suitability Drag chain cyclesmin. 2000000 Motion velocitymax. 3 m/s Traverse distance10 m Accelerationmax. 10 m/s2 Material Halogen-freeyes Plug connector Screw connectionZinc diecast, nickel-plated BodyTPU, black SealNBR Contact surfaceNi/Au FlammabilityV-0 Cable SheathingPUR Core insulationPVC FlammabilityVW-1 Classifications SystemClasscode ECLASS 11.027060311 ECLASS 10.0.127060311 ECLASS 9.027060311 ECLASS 8.027279218 ECLASS 5.127279201 ETIM 8.0EC001855 ETIM 7.0EC001855 ETIM 6.0EC001855 ETIM 5.0EC002585 UNSPSC 12.131251501
