V15-G-2M-PUR-A2 PEPPERL+FUCHS - Part number: 316271
Disponibile su richiesta

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

V15-G-2M-PUR-A2 PEPPERL+FUCHS - Part number: 316271

PEPPERL+FUCHS

confronta
V15-G-2M-PUR-A2 PEPPERL+FUCHS - Part number: 316271

Female cordset V15-G-2M-PUR-A2 V15-G-2M-PUR-A2 Improved resistance to weld spatter Suitable for drag chains and abrasion resistant Suitable for robotic applications / torsion resistant Degree of protection IP68 / IP69 Free of paint wetting interfering substances Resistant to microbes and hydrolysis UL listed for USA and Canada Halogen-free Specific design protects against loosening and inaccurate installation Female cordset V15-G-2M-PUR-A2 V15-G-2M-PUR-A2 Improved resistance to weld spatter Suitable for drag chains and abrasion resistant Suitable for robotic applications / torsion resistant Degree of protection IP68 / IP69 Free of paint wetting interfering substances Resistant to microbes and hydrolysis UL listed for USA and Canada Halogen-free Specific design protects against loosening and inaccurate installation

MPNs 316271, PEP316271, V15-G-2M-PUR-A2
Codice HS 85369090
Peso N/A

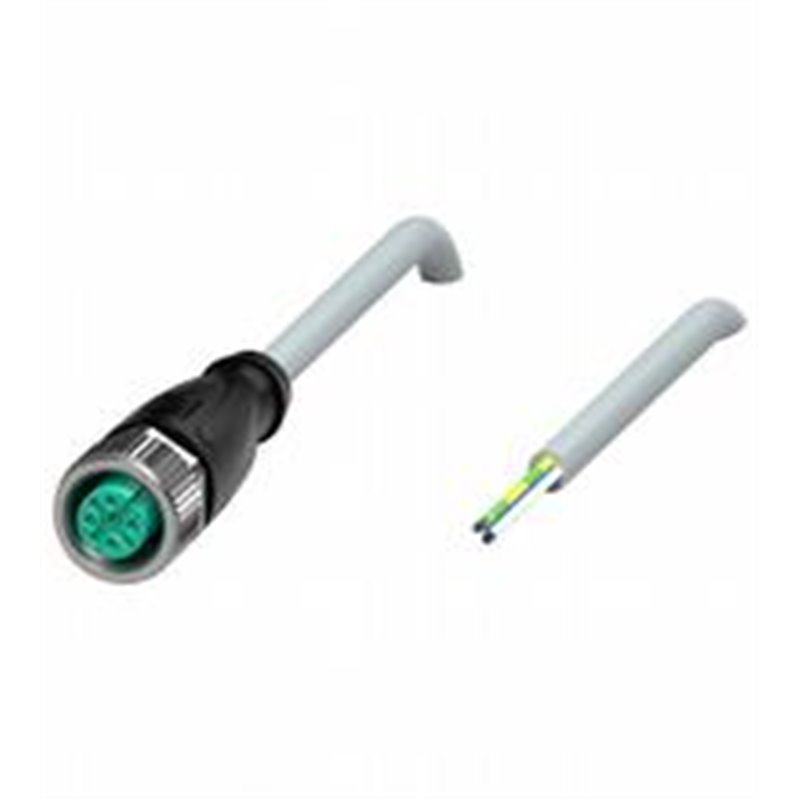

L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.
Venduto da PLC-CITY® e spedito dall'Italia

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Disponibile su richiesta

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of  V15-G-2M-PUR-A2 Product Description Female cordset single-ended M12 straight A-coded, 5-pin, PUR cable weld spatter resistant grey, UL approved, drag chain suitable, torsion resistant General specifications Connector 1 Connectionsocket Construction typeM12 Stylestraight Lockingscrew connection Number of pins5 CodingA-coded Connector 2 Connectioncable end Electrical specifications Operating voltagemax. 48 V AC / 60 V DC Operating currentmax. 4 A Conformity Degree of protectionEN 60529 Plug connectionconnector M12 x 1 : IEC 61076-2-101 FlammabilityUL 1581; DIN EN 60332-2-2 Halogen-freeDIN VDE 0472-815 IEC 60754-1 Microbial resistanceDIN EN 50525-2-21 / DIN VDE 0282-10 Hydrolysis resistanceDIN EN 50525-2-21 Approvals and certificates UL approvalAWM STYLE 20549 AWM I/II A/B 80°C 300V FT2 (cable) UL File NumberE231213 Ambient conditions Ambient temperature Plug connector-40 ... 90 °C (-40 ... 194 °F) Cable, fixed-40 ... 80 °C (-40 ... 176 °F) Cable, flexing-25 ... 80 °C (-13 ... 176 °F) Pollution degree3 Mechanical specifications Plug connector Tightening torque0.6 Nm Loosening protectionavailable Tool installationstraight knurling and hexagon nut SW = 14 mm Mating cyclesmin. 100 Degree of protectionIP68 / IP69 Cableaccording to IEC/EN 60228 (DIN VDE 0295) class 6 Sheath diameter4.8 mm Bending radius> 10 x cable diameter, moving > 5 x cable diameter, fixed Sheath stripping forcemax. 80 N / 300 mm Sheath colorgrey (similar to RAL 7001) Number of cores5 Core cross section0.34 mm2 Cores colorCore 1: brown Core 2: white Core 3: blue Core 4: black Core 5: green/yellow Core construction42 x 0.1 mm ∅ Length2 m Cable codeLi 9Y 11Y 5 x 0.34 Drag chain suitability Drag chain cyclesmin. 5000000 Motion velocitymax. 3.3 m/s Traverse distancemax. 5 m Accelerationmax. 5 m/s2 Torsion cyclesmin. 1000000 Torsional stress± 180 °/m Material PWIS freeyes Halogen-freeyes Plug connector Screw connectionZinc diecast, nickel-plated BodyTPU, black SealFKM Contact surfaceAu FlammabilityV-2 Cable SheathingPUR based on polyether Core insulationPP Weld spatter resistanceyes Chemical resistancegood Oil resistanceyes Cooling lubricant resistanceyes Microbial resistanceyes Hydrolysis resistanceyes FlammabilityFT2 Classifications SystemClasscode ECLASS 11.027060311 ECLASS 10.0.127060311 ECLASS 9.027060311 ECLASS 8.027279218 ECLASS 5.127279201 ETIM 8.0EC001855 ETIM 7.0EC001855 ETIM 6.0EC001855 ETIM 5.0EC002585 UNSPSC 12.131251501 Datasheet excerpt: Technical data of  V15-G-2M-PUR-A2 Product Description Female cordset single-ended M12 straight A-coded, 5-pin, PUR cable weld spatter resistant grey, UL approved, drag chain suitable, torsion resistant General specifications Connector 1 Connectionsocket Construction typeM12 Stylestraight Lockingscrew connection Number of pins5 CodingA-coded Connector 2 Connectioncable end Electrical specifications Operating voltagemax. 48 V AC / 60 V DC Operating currentmax. 4 A Conformity Degree of protectionEN 60529 Plug connectionconnector M12 x 1 : IEC 61076-2-101 FlammabilityUL 1581; DIN EN 60332-2-2 Halogen-freeDIN VDE 0472-815 IEC 60754-1 Microbial resistanceDIN EN 50525-2-21 / DIN VDE 0282-10 Hydrolysis resistanceDIN EN 50525-2-21 Approvals and certificates UL approvalAWM STYLE 20549 AWM I/II A/B 80°C 300V FT2 (cable) UL File NumberE231213 Ambient conditions Ambient temperature Plug connector-40 ... 90 °C (-40 ... 194 °F) Cable, fixed-40 ... 80 °C (-40 ... 176 °F) Cable, flexing-25 ... 80 °C (-13 ... 176 °F) Pollution degree3 Mechanical specifications Plug connector Tightening torque0.6 Nm Loosening protectionavailable Tool installationstraight knurling and hexagon nut SW = 14 mm Mating cyclesmin. 100 Degree of protectionIP68 / IP69 Cableaccording to IEC/EN 60228 (DIN VDE 0295) class 6 Sheath diameter4.8 mm Bending radius> 10 x cable diameter, moving > 5 x cable diameter, fixed Sheath stripping forcemax. 80 N / 300 mm Sheath colorgrey (similar to RAL 7001) Number of cores5 Core cross section0.34 mm2 Cores colorCore 1: brown Core 2: white Core 3: blue Core 4: black Core 5: green/yellow Core construction42 x 0.1 mm ∅ Length2 m Cable codeLi 9Y 11Y 5 x 0.34 Drag chain suitability Drag chain cyclesmin. 5000000 Motion velocitymax. 3.3 m/s Traverse distancemax. 5 m Accelerationmax. 5 m/s2 Torsion cyclesmin. 1000000 Torsional stress± 180 °/m Material PWIS freeyes Halogen-freeyes Plug connector Screw connectionZinc diecast, nickel-plated BodyTPU, black SealFKM Contact surfaceAu FlammabilityV-2 Cable SheathingPUR based on polyether Core insulationPP Weld spatter resistanceyes Chemical resistancegood Oil resistanceyes Cooling lubricant resistanceyes Microbial resistanceyes Hydrolysis resistanceyes FlammabilityFT2 Classifications SystemClasscode ECLASS 11.027060311 ECLASS 10.0.127060311 ECLASS 9.027060311 ECLASS 8.027279218 ECLASS 5.127279201 ETIM 8.0EC001855 ETIM 7.0EC001855 ETIM 6.0EC001855 ETIM 5.0EC002585 UNSPSC 12.131251501
