V15-W-VT2M-PUR-U/CAN PEPPERL+FUCHS - Part number: 70114143

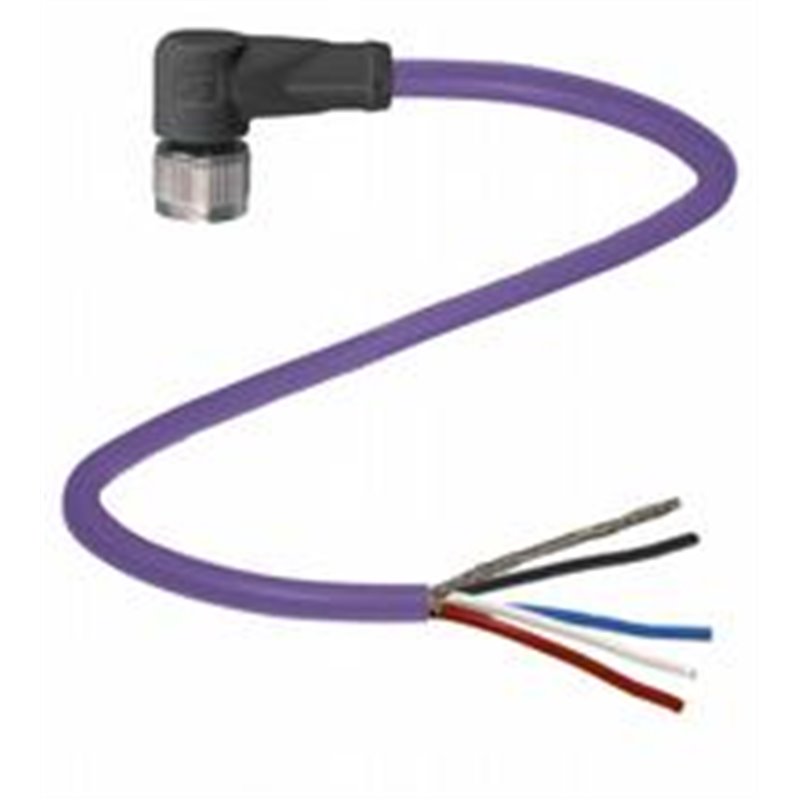

Datasheet excerpt: Technical data of  V15-W-VT2M-PUR-U/CAN Product Description DeviceNet/CANOpen bus cable female cordset single-ended M12 angled A-coded, 5-pin, PUR cable violet, shielded, UL approved, drag chain suitable, salt water resistant General specifications Connector 1 Connectionsocket Construction typeM12 Styleright angle Lockingscrew connection Number of pins5 CodingA-coded Connector 2 Connectioncable end UL File NumberE231213 Electrical specifications Operating voltagemax. 48 V AC / 60 V DC Operating currentmax. 4 A Conformity Degree of protectionEN 60529 Plug connectionconnector M12 x 1 : IEC 61076-2-101 FlammabilityUL 2556 , IEC 60332-1-2 Halogen-freeIEC 60754-1 Chemical resistanceDIN EN 60811-2-1 Oil resistanceDIN EN 60811-2-1 Approvals and certificates UL approvalCMX listed (cable) Ambient conditions Ambient temperature Plug connector-25 ... 90 °C (-13 ... 194 °F) Cable, fixed-20 ... 80 °C (-4 ... 176 °F) Cable, flexing-20 ... 80 °C (-4 ... 176 °F) Pollution degree3 Mechanical specifications Plug connector Tightening torque0.6 Nm Loosening protectionavailable Tool installationstraight knurling Mating cyclesmin. 100 Shieldingshield connected to pin 1 and screw connection Degree of protectionIP67 / IP68 / IP69 Cableaccording to IEC/EN 60228 (DIN VDE 0295) class 5 Sheath diameter6.1 mm Bending radius> 8 x cable diameter, moving > 4 x cable diameter, fixed Sheath stripping forcemax. 60 N / 100 mm Sheath colorviolet (similar to RAL 4001) Number of cores4 Core cross-section0.34 mm2 Cores colorCore 1: red Core 2: black Core 3: white Core 4: blue Core construction7 x 0.254 mm ∅ twisted pairs to twisted quad Shieldtinned copper braiding, 80 % coverage Length2 m Cable codeLi 9Y 11Y 4 x 0.34 Drag chain suitability Drag chain cyclesmin. 3000000 Motion velocitymax. 2.5 m/s Accelerationmax. 12 m/s2 Material Halogen-freeyes Plug connector Knurled screw connectionZinc die-casting, nickel-plated BodyTPU, black Contact surfaceAu FlammabilityV-2 Cable SheathingPUR based on polyether Core insulationPP Salt water resistanceyes Oil resistanceyes Microbial resistanceyes Hydrolysis resistanceyes FlammabilityVW-1 Classifications SystemClasscode ECLASS 11.027060307 ECLASS 10.0.127060307 ECLASS 9.027060390 ECLASS 8.027060390 ECLASS 5.127279201 ETIM 8.0EC001855 ETIM 7.0EC001855 ETIM 6.0EC001855 ETIM 5.0EC002585 UNSPSC 12.131251501 Datasheet excerpt: Technical data of  V15-W-VT2M-PUR-U/CAN Product Description DeviceNet/CANOpen bus cable female cordset single-ended M12 angled A-coded, 5-pin, PUR cable violet, shielded, UL approved, drag chain suitable, salt water resistant General specifications Connector 1 Connectionsocket Construction typeM12 Styleright angle Lockingscrew connection Number of pins5 CodingA-coded Connector 2 Connectioncable end UL File NumberE231213 Electrical specifications Operating voltagemax. 48 V AC / 60 V DC Operating currentmax. 4 A Conformity Degree of protectionEN 60529 Plug connectionconnector M12 x 1 : IEC 61076-2-101 FlammabilityUL 2556 , IEC 60332-1-2 Halogen-freeIEC 60754-1 Chemical resistanceDIN EN 60811-2-1 Oil resistanceDIN EN 60811-2-1 Approvals and certificates UL approvalCMX listed (cable) Ambient conditions Ambient temperature Plug connector-25 ... 90 °C (-13 ... 194 °F) Cable, fixed-20 ... 80 °C (-4 ... 176 °F) Cable, flexing-20 ... 80 °C (-4 ... 176 °F) Pollution degree3 Mechanical specifications Plug connector Tightening torque0.6 Nm Loosening protectionavailable Tool installationstraight knurling Mating cyclesmin. 100 Shieldingshield connected to pin 1 and screw connection Degree of protectionIP67 / IP68 / IP69 Cableaccording to IEC/EN 60228 (DIN VDE 0295) class 5 Sheath diameter6.1 mm Bending radius> 8 x cable diameter, moving > 4 x cable diameter, fixed Sheath stripping forcemax. 60 N / 100 mm Sheath colorviolet (similar to RAL 4001) Number of cores4 Core cross-section0.34 mm2 Cores colorCore 1: red Core 2: black Core 3: white Core 4: blue Core construction7 x 0.254 mm ∅ twisted pairs to twisted quad Shieldtinned copper braiding, 80 % coverage Length2 m Cable codeLi 9Y 11Y 4 x 0.34 Drag chain suitability Drag chain cyclesmin. 3000000 Motion velocitymax. 2.5 m/s Accelerationmax. 12 m/s2 Material Halogen-freeyes Plug connector Knurled screw connectionZinc die-casting, nickel-plated BodyTPU, black Contact surfaceAu FlammabilityV-2 Cable SheathingPUR based on polyether Core insulationPP Salt water resistanceyes Oil resistanceyes Microbial resistanceyes Hydrolysis resistanceyes FlammabilityVW-1 Classifications SystemClasscode ECLASS 11.027060307 ECLASS 10.0.127060307 ECLASS 9.027060390 ECLASS 8.027060390 ECLASS 5.127279201 ETIM 8.0EC001855 ETIM 7.0EC001855 ETIM 6.0EC001855 ETIM 5.0EC002585 UNSPSC 12.131251501
