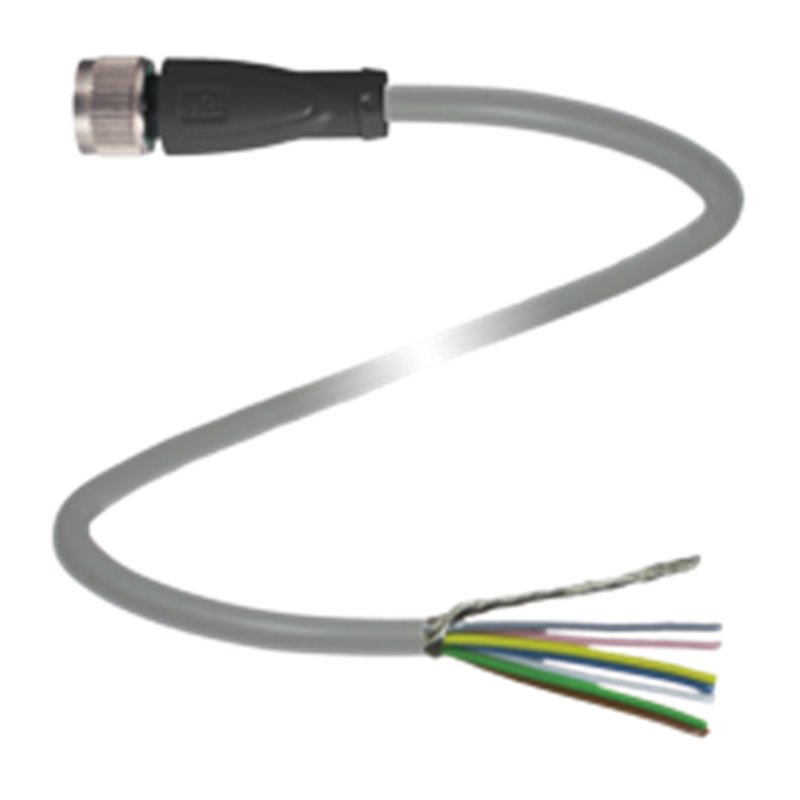

V17-G-5M-PUR PEPPERL+FUCHS - Part number: 098873

Datasheet excerpt: Technical data of  V17-G-5M-PUR Product Description Female cordset single-ended M12 straight A-coded, 8-pin, PUR cable grey, shielded General specifications Connector 1 Connectionsocket Construction typeM12 Stylestraight Lockingscrew connection Number of pins8 CodingA-coded Customizationshield connected to pin 8 Connector 2 Connectioncable end Electrical specifications Operating voltagemax. 30 V DC Operating currentmax. 2 A Conformity Degree of protectionEN 60529 Plug connectionconnector M12 x 1 : IEC 61076-2-101 Halogen-freeDIN VDE 0472-815 DIN EN 50267-2-1 Ambient conditions Ambient temperature Plug connector-40 ... 90 °C (-40 ... 194 °F) Cable, fixed-40 ... 80 °C (-40 ... 176 °F) Cable, flexing-20 ... 80 °C (-4 ... 176 °F) Pollution degree3 Mechanical specifications Plug connector Tightening torque0.6 Nm Loosening protectionavailable Tool installationstraight knurling Mating cyclesmin. 100 Degree of protectionIP67 / IP68 / IP69 Cableaccording to IEC/EN 60228 (DIN VDE 0295) class 5 Sheath diameter6 mm Bending radius> 10 x cable diameter, moving > 5 x cable diameter, fixed Sheath stripping forcemax. 100 N / 300 mm Sheath colorgrey (similar to RAL 7001) Number of cores8 Core cross-section0.34 mm2 Cores colorCore 1: white Core 2: brown Core 3: green Core 4: yellow Core 5: grey Core 6: pink Core 7: blue Core 8: shield Core construction14 x 0.15 mm ∅ Shieldtinned copper braiding, 85 % coverage Length5 m Cable codeLi 9Y V1 C V1 11Y 8 x 0,25 Material Halogen-freeyes Plug connector Screw connectionZinc diecast, nickel-plated BodyTPU, black Contact surfaceAu FlammabilityV-2 Cable SheathingPUR based on polyether Core insulationPP Chemical resistancegood Classifications SystemClasscode ECLASS 11.027060311 ECLASS 10.0.127060311 ECLASS 9.027060311 ECLASS 8.027279218 ECLASS 5.127279201 ETIM 8.0EC001855 ETIM 7.0EC001855 ETIM 6.0EC001855 ETIM 5.0EC002585 UNSPSC 12.131251501 Datasheet excerpt: Technical data of  V17-G-5M-PUR Product Description Female cordset single-ended M12 straight A-coded, 8-pin, PUR cable grey, shielded General specifications Connector 1 Connectionsocket Construction typeM12 Stylestraight Lockingscrew connection Number of pins8 CodingA-coded Customizationshield connected to pin 8 Connector 2 Connectioncable end Electrical specifications Operating voltagemax. 30 V DC Operating currentmax. 2 A Conformity Degree of protectionEN 60529 Plug connectionconnector M12 x 1 : IEC 61076-2-101 Halogen-freeDIN VDE 0472-815 DIN EN 50267-2-1 Ambient conditions Ambient temperature Plug connector-40 ... 90 °C (-40 ... 194 °F) Cable, fixed-40 ... 80 °C (-40 ... 176 °F) Cable, flexing-20 ... 80 °C (-4 ... 176 °F) Pollution degree3 Mechanical specifications Plug connector Tightening torque0.6 Nm Loosening protectionavailable Tool installationstraight knurling Mating cyclesmin. 100 Degree of protectionIP67 / IP68 / IP69 Cableaccording to IEC/EN 60228 (DIN VDE 0295) class 5 Sheath diameter6 mm Bending radius> 10 x cable diameter, moving > 5 x cable diameter, fixed Sheath stripping forcemax. 100 N / 300 mm Sheath colorgrey (similar to RAL 7001) Number of cores8 Core cross-section0.34 mm2 Cores colorCore 1: white Core 2: brown Core 3: green Core 4: yellow Core 5: grey Core 6: pink Core 7: blue Core 8: shield Core construction14 x 0.15 mm ∅ Shieldtinned copper braiding, 85 % coverage Length5 m Cable codeLi 9Y V1 C V1 11Y 8 x 0,25 Material Halogen-freeyes Plug connector Screw connectionZinc diecast, nickel-plated BodyTPU, black Contact surfaceAu FlammabilityV-2 Cable SheathingPUR based on polyether Core insulationPP Chemical resistancegood Classifications SystemClasscode ECLASS 11.027060311 ECLASS 10.0.127060311 ECLASS 9.027060311 ECLASS 8.027279218 ECLASS 5.127279201 ETIM 8.0EC001855 ETIM 7.0EC001855 ETIM 6.0EC001855 ETIM 5.0EC002585 UNSPSC 12.131251501
