V19-G-0,2M-YOPC-0,2M-V1S/V31-G PEPPERL+FUCHS - Part number: 271372
Disponibile su richiesta

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

V19-G-0,2M-YOPC-0,2M-V1S/V31-G PEPPERL+FUCHS - Part number: 271372

PEPPERL+FUCHS

confronta
V19-G-0,2M-YOPC-0,2M-V1S/V31-G PEPPERL+FUCHS - Part number: 271372

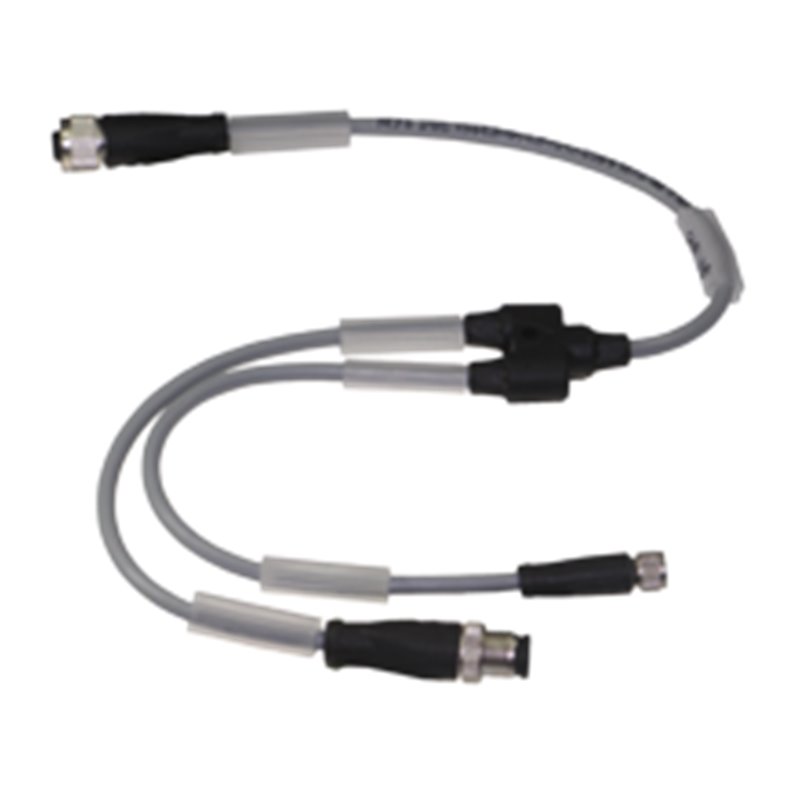

Y connection cable V19-G-0,2M-YOPC-0,2M-V1S/V31-G V19-G-0,2M-YOPC-0,2M-V1S/V31-G Halogen-free Simple connection between the standard trigger sensor and the OPC Optical Print Inspector. Fast, decentralized hardware trigger with an additional power supply connection Optimized for the OPC Optical Print Inspector with PROFIBUS Knurled nut suitable for tool assembly Immunity to vibration, with mechanical latching Y connection cable V19-G-0,2M-YOPC-0,2M-V1S/V31-G V19-G-0,2M-YOPC-0,2M-V1S/V31-G Halogen-free Simple connection between the standard trigger sensor and the OPC Optical Print Inspector. Fast, decentralized hardware trigger with an additional power supply connection Optimized for the OPC Optical Print Inspector with PROFIBUS Knurled nut suitable for tool assembly Immunity to vibration, with mechanical latching

MPNs 271372, PEP271372, V19-G-0,2M-YOPC-0,2M-V1S/V31-G
Codice HS 85369090
Peso N/A
L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.
Venduto da PLC-CITY® e spedito dall'Italia

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Disponibile su richiesta

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of  V19-G-0,2M-YOPC-0,2M-V1S/V31-G Product Description Y connection cable M12 socket straight A-coded 8-pin to M12 plug / M8 socket straight A-coded 4-pin, 3x PUR cable grey, shielded General specifications Connector 1 Connectionplug Construction typeM12 Stylestraight Lockingscrew connection Number of pins4 CodingA-coded Connector 2 Connectionsocket Construction typeM8 Stylestraight Lockingscrew connection Number of pins4 CodingA-coded Connector 3 Connectionplug Construction typeM12 Stylestraight Lockingscrew connection Number of pins8 CodingA-coded Electrical specifications Operating voltagemax. 48 V AC / 60 V DC Operating currentmax. 3 A Conformity Degree of protectionEN 60529 Plug connectionconnector M12 x 1 : IEC 61076-2-101 connector M8 x 1 : IEC 61076-2-104 Halogen-freeDIN VDE 0472-815 DIN EN 50267-2-1 Ambient conditions Ambient temperature Plug connector-40 ... 90 °C (-40 ... 194 °F) Cable, fixed-40 ... 80 °C (-40 ... 176 °F) Cable, flexing-25 ... 80 °C (-13 ... 176 °F) Pollution degree3 Mechanical specifications Connector 1 Tightening torque0.6 Nm Loosening protectionavailable Tool installationstraight knurling Mating cyclesmin. 100 Shieldingshield connected to connector Degree of protectionIP67 / IP68 / IP69 Connector 2 Tightening torque0.4 Nm Loosening protectionavailable Tool installationstraight knurling Mating cyclesmin. 100 Shieldingshield connected to connector Degree of protectionIP67 Connector 3 Tightening torque0.6 Nm Loosening protectionavailable Tool installationstraight knurling Mating cyclesmin. 100 Shieldingshield connected to connector Degree of protectionIP67 / IP68 / IP69 Cableaccording to IEC/EN 60228 (DIN VDE 0295) class 5 Sheath diameter4.8 mm Bending radius> 10 x cable diameter, moving > 5 x cable diameter, fixed Sheath stripping forcemax. 100 N / 300 mm Sheath colorgrey (similar to RAL 7001) Number of cores4 Core cross section0.34 mm2 Cores colorCore 1: brown Core 2: white Core 3: blue Core 4: black Core construction19 x 0.15 mm ∅ Shieldtinned copper braiding, 85 % coverage LengthL1 = 200 mmL2 = 200 mmL3 = 200 mm Cable codeLi 9Y 11YM 4 x 0.34 Material Halogen-freeyes Cable SheathingPUR based on polyether Core insulationPP Chemical resistancegood Classifications SystemClasscode ECLASS 11.027060311 ECLASS 10.0.127060311 ECLASS 9.027060311 ECLASS 8.027279218 ECLASS 5.127279201 ETIM 8.0EC001855 ETIM 7.0EC001855 ETIM 6.0EC001855 ETIM 5.0EC002585 UNSPSC 12.131251501 Datasheet excerpt: Technical data of  V19-G-0,2M-YOPC-0,2M-V1S/V31-G Product Description Y connection cable M12 socket straight A-coded 8-pin to M12 plug / M8 socket straight A-coded 4-pin, 3x PUR cable grey, shielded General specifications Connector 1 Connectionplug Construction typeM12 Stylestraight Lockingscrew connection Number of pins4 CodingA-coded Connector 2 Connectionsocket Construction typeM8 Stylestraight Lockingscrew connection Number of pins4 CodingA-coded Connector 3 Connectionplug Construction typeM12 Stylestraight Lockingscrew connection Number of pins8 CodingA-coded Electrical specifications Operating voltagemax. 48 V AC / 60 V DC Operating currentmax. 3 A Conformity Degree of protectionEN 60529 Plug connectionconnector M12 x 1 : IEC 61076-2-101 connector M8 x 1 : IEC 61076-2-104 Halogen-freeDIN VDE 0472-815 DIN EN 50267-2-1 Ambient conditions Ambient temperature Plug connector-40 ... 90 °C (-40 ... 194 °F) Cable, fixed-40 ... 80 °C (-40 ... 176 °F) Cable, flexing-25 ... 80 °C (-13 ... 176 °F) Pollution degree3 Mechanical specifications Connector 1 Tightening torque0.6 Nm Loosening protectionavailable Tool installationstraight knurling Mating cyclesmin. 100 Shieldingshield connected to connector Degree of protectionIP67 / IP68 / IP69 Connector 2 Tightening torque0.4 Nm Loosening protectionavailable Tool installationstraight knurling Mating cyclesmin. 100 Shieldingshield connected to connector Degree of protectionIP67 Connector 3 Tightening torque0.6 Nm Loosening protectionavailable Tool installationstraight knurling Mating cyclesmin. 100 Shieldingshield connected to connector Degree of protectionIP67 / IP68 / IP69 Cableaccording to IEC/EN 60228 (DIN VDE 0295) class 5 Sheath diameter4.8 mm Bending radius> 10 x cable diameter, moving > 5 x cable diameter, fixed Sheath stripping forcemax. 100 N / 300 mm Sheath colorgrey (similar to RAL 7001) Number of cores4 Core cross section0.34 mm2 Cores colorCore 1: brown Core 2: white Core 3: blue Core 4: black Core construction19 x 0.15 mm ∅ Shieldtinned copper braiding, 85 % coverage LengthL1 = 200 mmL2 = 200 mmL3 = 200 mm Cable codeLi 9Y 11YM 4 x 0.34 Material Halogen-freeyes Cable SheathingPUR based on polyether Core insulationPP Chemical resistancegood Classifications SystemClasscode ECLASS 11.027060311 ECLASS 10.0.127060311 ECLASS 9.027060311 ECLASS 8.027279218 ECLASS 5.127279201 ETIM 8.0EC001855 ETIM 7.0EC001855 ETIM 6.0EC001855 ETIM 5.0EC002585 UNSPSC 12.131251501
