V19-G-0,5M-PVC-SUBD9 PEPPERL+FUCHS - Part number: 70104913

PEPPERL+FUCHS

confronta
V19-G-0,5M-PVC-SUBD9 PEPPERL+FUCHS - Part number: 70104913

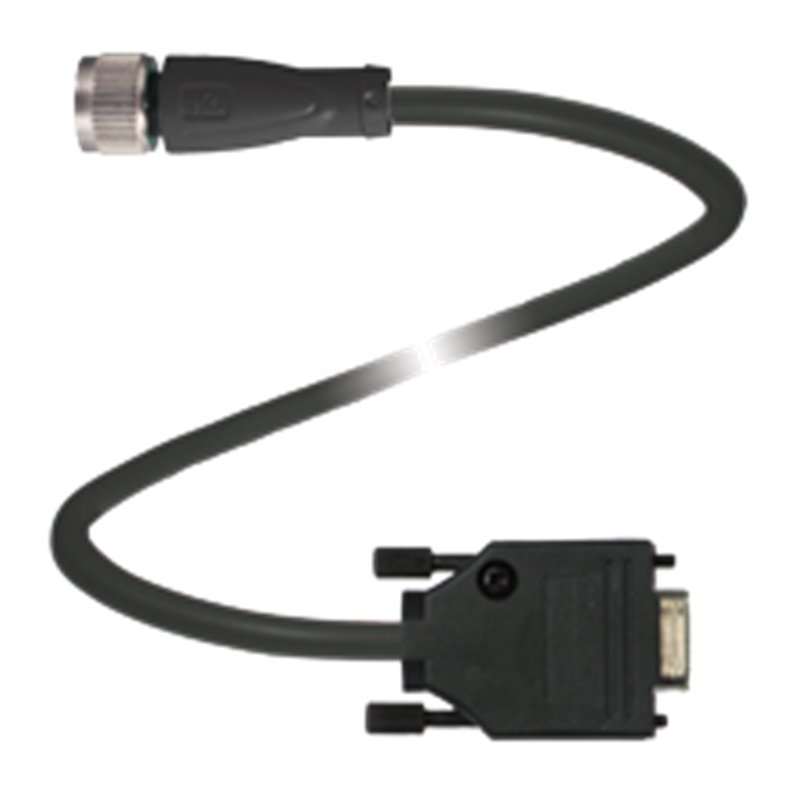

Adapter cable V19-G-0,5M-PVC-SUBD9 V19-G-0,5M-PVC-SUBD9 Adapter cable for RS-232 programming Degree of protection IP20 Knurled nut suitable for tool assembly Immunity to vibration, with mechanical latching Adapter cable V19-G-0,5M-PVC-SUBD9 V19-G-0,5M-PVC-SUBD9 Adapter cable for RS-232 programming Degree of protection IP20 Knurled nut suitable for tool assembly Immunity to vibration, with mechanical latching

MPNs 70104913, PEP70104913, V19-G-0,5M-PVC-SUBD9
Codice HS 85369090
Peso N/A
L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.
Venduto da PLC-CITY® e spedito dall'Italia

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Disponibile su richiesta

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of  V19-G-0,5M-PVC-SUBD9 Product Description Adapter cable M12 socket straight A-coded 8-pin to Sub-D-plug 9-pin with DC connection, PVC cable grey General specifications Connector 1 Connectionsocket Construction typeM12 Stylestraight Lockingscrew connection Number of pins8 CodingA-coded Connector 2 Connectionplug Construction typeSub-D Stylestraight Lockingscrew connection Number of pins9 Electrical specifications Operating voltagemax. 24 V DC Operating currentmax. 2 A Conformity Degree of protectionEN 60529 Plug connectionconnector M12 x 1 : IEC 61076-2-101 Connector Sub-D : IEC 807-2 Ambient conditions Ambient temperature Connector 1-40 ... 90 °C (-40 ... 194 °F) Connector 2-10 ... 60 °C (14 ... 140 °F) Cable, fixed-40 ... 80 °C (-40 ... 176 °F) Cable, flexing-20 ... 80 °C (-4 ... 176 °F) Pollution degree1 Mechanical specifications Connector 1 Tightening torque0.6 Nm Loosening protectionavailable Tool installationstraight knurling Mating cyclesmin. 100 Degree of protectionIP67 / IP68 / IP69 Connector 2 Loosening protectionscrews UNC 4-40 Mating cyclesmin. 100 Degree of protectionIP20 Cableaccording to IEC/EN 60228 (DIN VDE 0295) class 5 Sheath diameter6 mm Bending radius> 10 x cable diameter, moving > 5 x cable diameter, fixed Sheath stripping forcemax. 100 N / 300 mm Sheath colorgrey (similar to RAL 7001) Number of cores8 Core cross-section0.25 mm2 Cores colorCore 1: white Core 2: brown Core 3: green Core 4: yellow Core 5: grey Core 6: pink Core 7: blue Core 8: red Core construction14 x 0.15 mm ∅ Shieldtinned copper braiding, 85 % coverage Length0.5 m Cable codeLi 9Y V1 C V1 11Y 8 x 0,25 NoteAn external power supply is required to establish readiness for operation: 100 ... 240 VAC, 50/60 Hz, 24 VDC, 50 mA with 5.5/2.1 plug Material Connector 1 Knurled screw connectionZinc diecast, nickel-plated BodyTPU, black Contact surfaceAu FlammabilityV-2 Connector 2 BodyZinc diecast, nickel-plated Contact surfaceAu FlammabilityV-0 Cable SheathingPVC Core insulationPVC Flammabilityflame-resistant Classifications SystemClasscode ECLASS 11.027060311 ECLASS 10.0.127060311 ECLASS 9.027060311 ECLASS 8.027279218 ECLASS 5.127279201 ETIM 8.0EC001855 ETIM 7.0EC001855 ETIM 6.0EC001855 ETIM 5.0EC002585 UNSPSC 12.131251501 Datasheet excerpt: Technical data of  V19-G-0,5M-PVC-SUBD9 Product Description Adapter cable M12 socket straight A-coded 8-pin to Sub-D-plug 9-pin with DC connection, PVC cable grey General specifications Connector 1 Connectionsocket Construction typeM12 Stylestraight Lockingscrew connection Number of pins8 CodingA-coded Connector 2 Connectionplug Construction typeSub-D Stylestraight Lockingscrew connection Number of pins9 Electrical specifications Operating voltagemax. 24 V DC Operating currentmax. 2 A Conformity Degree of protectionEN 60529 Plug connectionconnector M12 x 1 : IEC 61076-2-101 Connector Sub-D : IEC 807-2 Ambient conditions Ambient temperature Connector 1-40 ... 90 °C (-40 ... 194 °F) Connector 2-10 ... 60 °C (14 ... 140 °F) Cable, fixed-40 ... 80 °C (-40 ... 176 °F) Cable, flexing-20 ... 80 °C (-4 ... 176 °F) Pollution degree1 Mechanical specifications Connector 1 Tightening torque0.6 Nm Loosening protectionavailable Tool installationstraight knurling Mating cyclesmin. 100 Degree of protectionIP67 / IP68 / IP69 Connector 2 Loosening protectionscrews UNC 4-40 Mating cyclesmin. 100 Degree of protectionIP20 Cableaccording to IEC/EN 60228 (DIN VDE 0295) class 5 Sheath diameter6 mm Bending radius> 10 x cable diameter, moving > 5 x cable diameter, fixed Sheath stripping forcemax. 100 N / 300 mm Sheath colorgrey (similar to RAL 7001) Number of cores8 Core cross-section0.25 mm2 Cores colorCore 1: white Core 2: brown Core 3: green Core 4: yellow Core 5: grey Core 6: pink Core 7: blue Core 8: red Core construction14 x 0.15 mm ∅ Shieldtinned copper braiding, 85 % coverage Length0.5 m Cable codeLi 9Y V1 C V1 11Y 8 x 0,25 NoteAn external power supply is required to establish readiness for operation: 100 ... 240 VAC, 50/60 Hz, 24 VDC, 50 mA with 5.5/2.1 plug Material Connector 1 Knurled screw connectionZinc diecast, nickel-plated BodyTPU, black Contact surfaceAu FlammabilityV-2 Connector 2 BodyZinc diecast, nickel-plated Contact surfaceAu FlammabilityV-0 Cable SheathingPVC Core insulationPVC Flammabilityflame-resistant Classifications SystemClasscode ECLASS 11.027060311 ECLASS 10.0.127060311 ECLASS 9.027060311 ECLASS 8.027279218 ECLASS 5.127279201 ETIM 8.0EC001855 ETIM 7.0EC001855 ETIM 6.0EC001855 ETIM 5.0EC002585 UNSPSC 12.131251501
