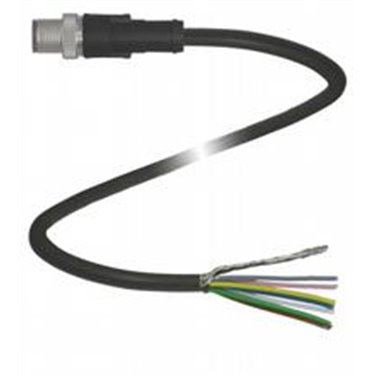

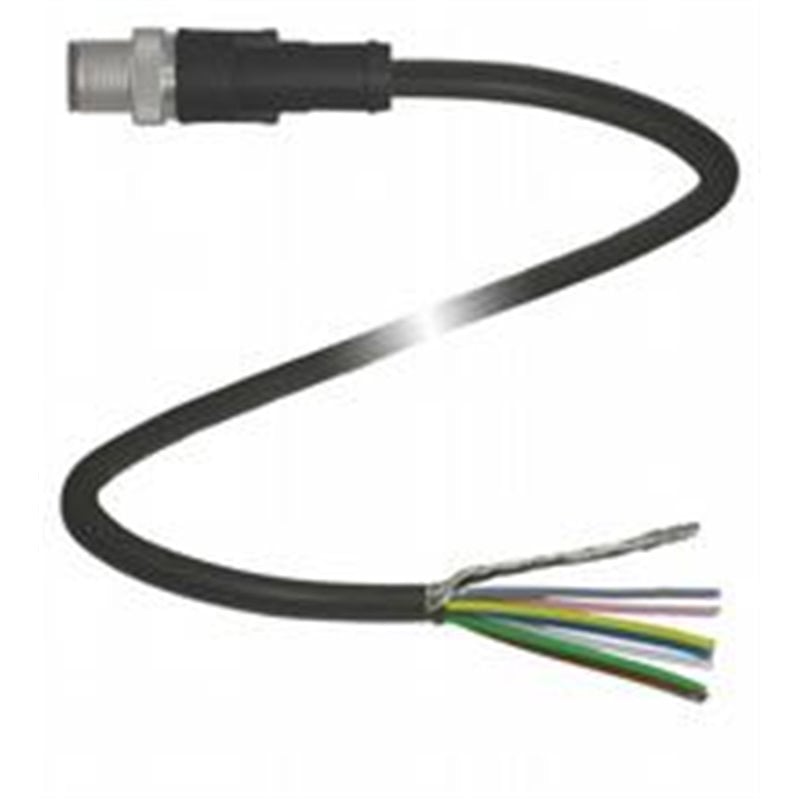

V19SY-G-BK5M-PUR-ABG PEPPERL+FUCHS - Part number: 70139934

Datasheet excerpt: Technical data of  V19SY-G-BK5M-PUR-ABG Product Description Ethernet bus cable male cordset single-ended M12 straight Y-coded 8-pin, PUR cable black, Cat5e, shielded, drag chain suitable General specifications Connector 1 Connectionplug Construction typeM12 Stylestraight Lockingscrew connection Number of pins8 CodingY-coded Connector 2 Connectioncable end Electrical specifications Rated voltage30 V DC Rated current6 A (power supply)0.5 A (data) Volume resistancemax. 5 mΩ Conformity Degree of protectionEN 60529 Fieldbus standardHybrid Ethernet Plug connectionconnector M12 x 1 : IEC 61076-2-113 Component categoryCAT5 (IEC 11801) , CAT5e (TIA 568B) FlammabilityUL 1581 ; UL 2556 Halogen-freeDIN VDE 0472-815 / IEC 60754-1 Hydrolysis resistanceEN 50396 Oil resistanceDIN EN 60811-2-1 / DIN VDE 0282-10 Ambient conditions Ambient temperature Plug connector-25 ... 90 °C (-13 ... 194 °F) Cable, fixed-40 ... 90 °C (-40 ... 194 °F) Cable, flexing-30 ... 70 °C (-22 ... 158 °F) Pollution degree3 Mechanical specifications Plug connector Tightening torque0.4 Nm Loosening protectionavailable Tool installationstraight knurling Mating cyclesmin. 100 Shieldingshield connected to screw connection Degree of protectionIP65/IP67 Cableaccording to IEC/EN 60228 (DIN VDE 0295) class 5 Sheath diameter8.8 mm Bending radius> 8 x cable diameter, moving > 4 x cable diameter, fixed Sheath colorblack (similar to RAL 9005) Number of cores8 Core cross section4 x 0.15 mm² (data)4 x 0.85 mm² (power supply) Cores colorCore 1: white/orange Core 2: orange Core 3: white/green Core 4: green Core 5: blue Core 6: white Core 7: brown Core 8: black Core construction19 x 0.1 mm (Data)19 x 0.2 mm (Power supply) Shieldtinned copper braiding, 85 % coverage Length5 m Cable code94H Drag chain suitability Drag chain cyclesmin. 2000000 Motion velocitymax. 3 m/s Traverse distance4.5 m Accelerationmax. 3 m/s2 Material PWIS freeyes Halogen-freeyes Plug connector Screw connectionZinc diecast, nickel-plated BodyTPU, black Contact surfaceNi/Au FlammabilityV-2 Cable SheathingPUR Core insulationPP Oil resistanceyes Microbial resistanceyes Hydrolysis resistanceyes FlammabilityFT1 Classifications SystemClasscode ECLASS 11.027060307 ECLASS 10.0.127060307 ECLASS 9.027060390 ECLASS 8.027060390 ECLASS 5.127279201 ETIM 8.0EC001855 ETIM 7.0EC001855 ETIM 6.0EC001855 ETIM 5.0EC002585 UNSPSC 12.131251501 Datasheet excerpt: Technical data of  V19SY-G-BK5M-PUR-ABG Product Description Ethernet bus cable male cordset single-ended M12 straight Y-coded 8-pin, PUR cable black, Cat5e, shielded, drag chain suitable General specifications Connector 1 Connectionplug Construction typeM12 Stylestraight Lockingscrew connection Number of pins8 CodingY-coded Connector 2 Connectioncable end Electrical specifications Rated voltage30 V DC Rated current6 A (power supply)0.5 A (data) Volume resistancemax. 5 mΩ Conformity Degree of protectionEN 60529 Fieldbus standardHybrid Ethernet Plug connectionconnector M12 x 1 : IEC 61076-2-113 Component categoryCAT5 (IEC 11801) , CAT5e (TIA 568B) FlammabilityUL 1581 ; UL 2556 Halogen-freeDIN VDE 0472-815 / IEC 60754-1 Hydrolysis resistanceEN 50396 Oil resistanceDIN EN 60811-2-1 / DIN VDE 0282-10 Ambient conditions Ambient temperature Plug connector-25 ... 90 °C (-13 ... 194 °F) Cable, fixed-40 ... 90 °C (-40 ... 194 °F) Cable, flexing-30 ... 70 °C (-22 ... 158 °F) Pollution degree3 Mechanical specifications Plug connector Tightening torque0.4 Nm Loosening protectionavailable Tool installationstraight knurling Mating cyclesmin. 100 Shieldingshield connected to screw connection Degree of protectionIP65/IP67 Cableaccording to IEC/EN 60228 (DIN VDE 0295) class 5 Sheath diameter8.8 mm Bending radius> 8 x cable diameter, moving > 4 x cable diameter, fixed Sheath colorblack (similar to RAL 9005) Number of cores8 Core cross section4 x 0.15 mm² (data)4 x 0.85 mm² (power supply) Cores colorCore 1: white/orange Core 2: orange Core 3: white/green Core 4: green Core 5: blue Core 6: white Core 7: brown Core 8: black Core construction19 x 0.1 mm (Data)19 x 0.2 mm (Power supply) Shieldtinned copper braiding, 85 % coverage Length5 m Cable code94H Drag chain suitability Drag chain cyclesmin. 2000000 Motion velocitymax. 3 m/s Traverse distance4.5 m Accelerationmax. 3 m/s2 Material PWIS freeyes Halogen-freeyes Plug connector Screw connectionZinc diecast, nickel-plated BodyTPU, black Contact surfaceNi/Au FlammabilityV-2 Cable SheathingPUR Core insulationPP Oil resistanceyes Microbial resistanceyes Hydrolysis resistanceyes FlammabilityFT1 Classifications SystemClasscode ECLASS 11.027060307 ECLASS 10.0.127060307 ECLASS 9.027060390 ECLASS 8.027060390 ECLASS 5.127279201 ETIM 8.0EC001855 ETIM 7.0EC001855 ETIM 6.0EC001855 ETIM 5.0EC002585 UNSPSC 12.131251501
