V1D-G-2M-PUR-ABG-V1SD-90-W PEPPERL+FUCHS - Part number: 302775
Disponibile su richiesta

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

V1D-G-2M-PUR-ABG-V1SD-90-W PEPPERL+FUCHS - Part number: 302775

PEPPERL+FUCHS

confronta
V1D-G-2M-PUR-ABG-V1SD-90-W PEPPERL+FUCHS - Part number: 302775

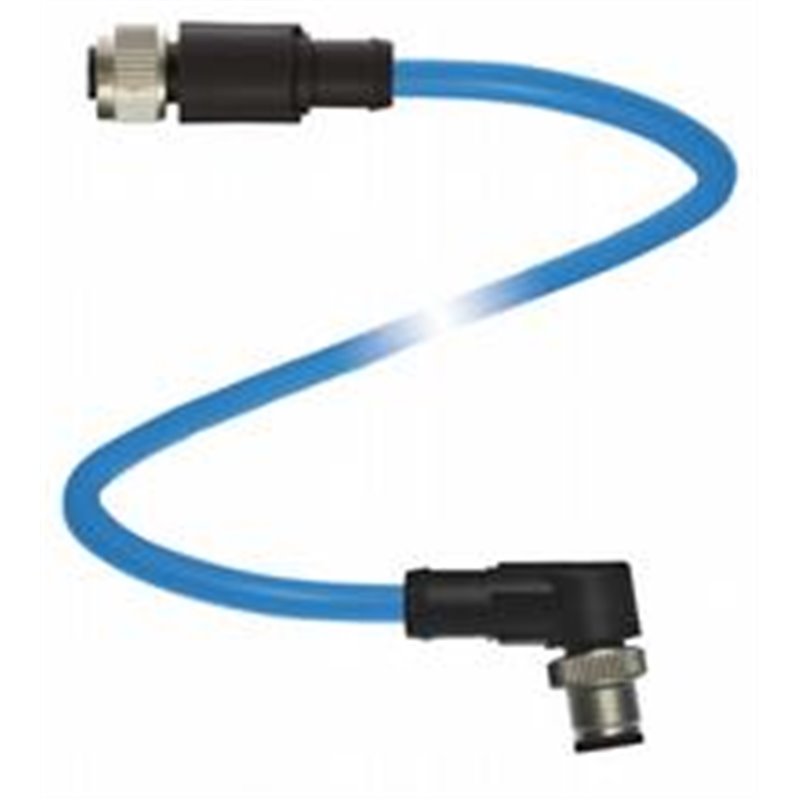

Connection cable, Ethernet V1D-G-2M-PUR-ABG-V1SD-90-W V1D-G-2M-PUR-ABG-V1SD-90-W Hard-wearing PUR cable D coding for Ethernet Cat 5 cable Degree of protection IP65 / IP67 Oil resistant Halogen-free Connection cable, Ethernet V1D-G-2M-PUR-ABG-V1SD-90-W V1D-G-2M-PUR-ABG-V1SD-90-W Hard-wearing PUR cable D coding for Ethernet Cat 5 cable Degree of protection IP65 / IP67 Oil resistant Halogen-free

MPNs 302775, PEP302775, V1D-G-2M-PUR-ABG-V1SD-90-W
Codice HS 85369090
Peso N/A
L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.
Venduto da PLC-CITY® e spedito dall'Italia

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Disponibile su richiesta

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of  V1D-G-2M-PUR-ABG-V1SD-90-W Product Description Ethernet bus cable M12 socket straight to M12 plug angled D-coded, 4-pin, PUR cable blue, Cat5, shielded, oil resistant General specifications CustomizationCoding rotated by -90° Connector 1 Connectionsocket Construction typeM12 Stylestraight Lockingscrew connection Number of pins4 CodingD-coded Connector 2 Connectionplug Construction typeM12 Styleangled Lockingscrew connection Number of pins4 CodingD-coded CustomizationCoding rotated by -90° Electrical specifications Operating voltagemax. 48 V AC / 60 V DC Rated current2 A Test voltage700 V Conformity Degree of protectionEN 60529 Fieldbus standardEthernet 100 Mbit/s Plug connectionconnector M12 x 1 : IEC 61076-2-101 Component categoryCAT5 (IEC 11801) FlammabilityIEC 60332-1-2 / UL 2556 Halogen-freeIEC 60754-1 Oil resistanceDIN EN 60811-2-1 Ambient conditions Ambient temperature Plug connector-25 ... 90 °C (-13 ... 194 °F) Cable, fixed-40 ... 80 °C (-40 ... 176 °F) Cable, flexing-20 ... 80 °C (-4 ... 176 °F) Storage temperature-20 ... 80 °C (-4 ... 176 °F) Pollution degree3 Mechanical specifications Plug connector Tightening torque0.4 Nm Tool installationstraight knurling Mating cyclesmin. 100 Degree of protectionIP65/IP67 Cableaccording to IEC/EN 60228 (DIN VDE 0295) class 5 Sheath diameter6.4 mm Bending radius> 8 x cable diameter, moving > 4 x cable diameter, fixed Sheath colorwater blue (RAL 5021) Number of cores4 Core cross section0.14 mm2 / 26 AWG Cores colorCore 1: white/orange Core 2: white/green Core 3: orange Core 4: green Conductor construction Core construction7 x 0.16 mm ∅ twisted pairs Shieldaluminum-lined polyester foilTinned copper braiding, 70 % coverage Length2 m Material Halogen-freeyes Plug connector Screw connectionZinc diecast, nickel-plated BodyTPU, black Contact surfaceNi/Au FlammabilityV-2 Cable SheathingPUR Core insulationPE Oil resistanceyes FlammabilityVW-1 Classifications SystemClasscode ECLASS 11.027060307 ECLASS 10.0.127060307 ECLASS 9.027060390 ECLASS 8.027060390 ECLASS 5.127279201 ETIM 8.0EC001855 ETIM 7.0EC001855 ETIM 6.0EC001855 ETIM 5.0EC002585 UNSPSC 12.131251501 Datasheet excerpt: Technical data of  V1D-G-2M-PUR-ABG-V1SD-90-W Product Description Ethernet bus cable M12 socket straight to M12 plug angled D-coded, 4-pin, PUR cable blue, Cat5, shielded, oil resistant General specifications CustomizationCoding rotated by -90° Connector 1 Connectionsocket Construction typeM12 Stylestraight Lockingscrew connection Number of pins4 CodingD-coded Connector 2 Connectionplug Construction typeM12 Styleangled Lockingscrew connection Number of pins4 CodingD-coded CustomizationCoding rotated by -90° Electrical specifications Operating voltagemax. 48 V AC / 60 V DC Rated current2 A Test voltage700 V Conformity Degree of protectionEN 60529 Fieldbus standardEthernet 100 Mbit/s Plug connectionconnector M12 x 1 : IEC 61076-2-101 Component categoryCAT5 (IEC 11801) FlammabilityIEC 60332-1-2 / UL 2556 Halogen-freeIEC 60754-1 Oil resistanceDIN EN 60811-2-1 Ambient conditions Ambient temperature Plug connector-25 ... 90 °C (-13 ... 194 °F) Cable, fixed-40 ... 80 °C (-40 ... 176 °F) Cable, flexing-20 ... 80 °C (-4 ... 176 °F) Storage temperature-20 ... 80 °C (-4 ... 176 °F) Pollution degree3 Mechanical specifications Plug connector Tightening torque0.4 Nm Tool installationstraight knurling Mating cyclesmin. 100 Degree of protectionIP65/IP67 Cableaccording to IEC/EN 60228 (DIN VDE 0295) class 5 Sheath diameter6.4 mm Bending radius> 8 x cable diameter, moving > 4 x cable diameter, fixed Sheath colorwater blue (RAL 5021) Number of cores4 Core cross section0.14 mm2 / 26 AWG Cores colorCore 1: white/orange Core 2: white/green Core 3: orange Core 4: green Conductor construction Core construction7 x 0.16 mm ∅ twisted pairs Shieldaluminum-lined polyester foilTinned copper braiding, 70 % coverage Length2 m Material Halogen-freeyes Plug connector Screw connectionZinc diecast, nickel-plated BodyTPU, black Contact surfaceNi/Au FlammabilityV-2 Cable SheathingPUR Core insulationPE Oil resistanceyes FlammabilityVW-1 Classifications SystemClasscode ECLASS 11.027060307 ECLASS 10.0.127060307 ECLASS 9.027060390 ECLASS 8.027060390 ECLASS 5.127279201 ETIM 8.0EC001855 ETIM 7.0EC001855 ETIM 6.0EC001855 ETIM 5.0EC002585 UNSPSC 12.131251501
