V1D-G-GN0,3M-PUR-E1S-V1D-G-Y70 PEPPERL+FUCHS - Part number: 70144939
Disponibile su richiesta

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

V1D-G-GN0,3M-PUR-E1S-V1D-G-Y70 PEPPERL+FUCHS - Part number: 70144939

PEPPERL+FUCHS

confronta
V1D-G-GN0,3M-PUR-E1S-V1D-G-Y70 PEPPERL+FUCHS - Part number: 70144939

Connection cable, Ethernet V1D-G-GN0,3M-PUR-E1S-V1D-G-Y70 V1D-G-GN0,3M-PUR-E1S-V1D-G-Y70 Hard-wearing PUR cable Suitable for drag chains and abrasion resistant D coding for Ethernet Conforms to PROFINET CAT5/CAT5e cable Degree of protection IP68 / IP69 Free of paint wetting interfering substances Halogen-free Specific design protects against loosening and inaccurate installation Connection cable, Ethernet V1D-G-GN0,3M-PUR-E1S-V1D-G-Y70 V1D-G-GN0,3M-PUR-E1S-V1D-G-Y70 Hard-wearing PUR cable Suitable for drag chains and abrasion resistant D coding for Ethernet Conforms to PROFINET CAT5/CAT5e cable Degree of protection IP68 / IP69 Free of paint wetting interfering substances Halogen-free Specific design protects against loosening and inaccurate installation

MPNs 70144939, PEP70144939, V1D-G-GN0,3M-PUR-E1S-V1D-G-Y70
Codice HS 85369090
Peso N/A

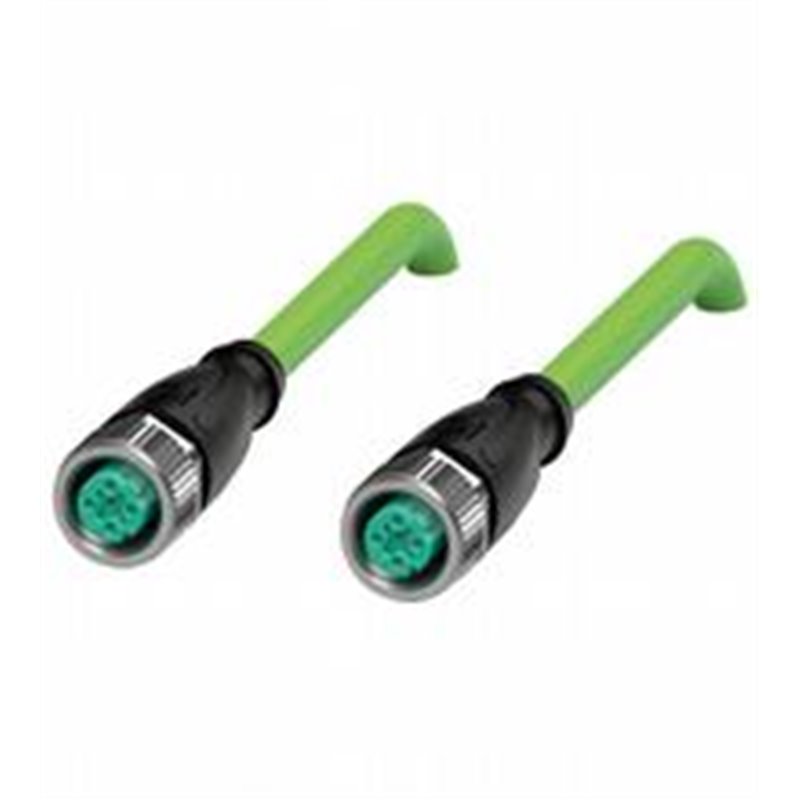

L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.
Venduto da PLC-CITY® e spedito dall'Italia

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Disponibile su richiesta

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of  V1D-G-GN0,3M-PUR-E1S-V1D-G-Y70 Product Description Ethernet bus cable M12 socket straight to M12 socket straight D-coded, 4-pin, PUR cable green, Cat5e, shielded, drag chain suitable General specifications Connector 1 Connectionsocket Construction typeM12 Stylestraight Lockingscrew connection Number of pins4 CodingD-coded Connector 2 Connectionsocket Construction typeM12 Stylestraight Lockingscrew connection Number of pins4 CodingD-coded Electrical specifications Operating voltagemax. 48 V AC / 60 V DC Conformity Degree of protectionEN 60529 Plug connectionconnector M12 x 1 : IEC 61076-2-101 Component categoryCAT5 (IEC 11801) , CAT5e (IEC 61156-6) FlammabilityIEC 60332-1-2 / UL 2556 Ambient conditions Ambient temperature Plug connector-40 ... 90 °C (-40 ... 194 °F) Cable, fixed-30 ... 70 °C (-22 ... 158 °F) Cable, flexing-20 ... 70 °C (-4 ... 158 °F) Mechanical specifications Plug connector Tightening torque0.6 Nm Loosening protectionavailable Tool installationstraight knurling and hexagon nut SW = 14 mm Mating cyclesmin. 100 Shieldingshield connected to screw connection Connector 1 Loosening protection Degree of protectionIP68 / IP69 Cableaccording to IEC/EN 60228 (DIN VDE 0295) class 5 Sheath diameter6 mm Bending radius> 10 x cable diameter, moving > 8 x cable diameter, fixed Sheath stripping forcemax. 60 N / 100 mm Sheath colorgreen (similar to RAL 6018) Number of cores4 Core cross section0.34 mm2 / 22 AWG Cores colorCore 1: yellow Core 2: white Core 3: orange Core 4: blue Core construction7 x 0.254 mm ∅ twisted pairs to twisted quad Shieldaluminum-lined polyester foilTinned copper braiding Lengthmax. 0.3 m Drag chain suitability Drag chain cyclesmax. 1000000 Motion velocitymax. 3 m/s Traverse distancemax. 5 m Accelerationmax. 2 m/s2 Material PWIS freeyes Halogen-freeyes Plug connector Screw connectionZinc diecast, nickel-plated BodyTPU, black SealFKM Contact surfaceAu FlammabilityV-2 Cable SheathingPUR based on polyether Core insulationPP FlammabilityFT2 Classifications SystemClasscode ECLASS 11.027060311 ECLASS 10.0.127060311 ECLASS 9.027060311 ECLASS 8.027279218 ECLASS 5.127279201 ETIM 8.0EC001855 ETIM 7.0EC001855 ETIM 6.0EC001855 ETIM 5.0EC002585 UNSPSC 12.131251501 Datasheet excerpt: Technical data of  V1D-G-GN0,3M-PUR-E1S-V1D-G-Y70 Product Description Ethernet bus cable M12 socket straight to M12 socket straight D-coded, 4-pin, PUR cable green, Cat5e, shielded, drag chain suitable General specifications Connector 1 Connectionsocket Construction typeM12 Stylestraight Lockingscrew connection Number of pins4 CodingD-coded Connector 2 Connectionsocket Construction typeM12 Stylestraight Lockingscrew connection Number of pins4 CodingD-coded Electrical specifications Operating voltagemax. 48 V AC / 60 V DC Conformity Degree of protectionEN 60529 Plug connectionconnector M12 x 1 : IEC 61076-2-101 Component categoryCAT5 (IEC 11801) , CAT5e (IEC 61156-6) FlammabilityIEC 60332-1-2 / UL 2556 Ambient conditions Ambient temperature Plug connector-40 ... 90 °C (-40 ... 194 °F) Cable, fixed-30 ... 70 °C (-22 ... 158 °F) Cable, flexing-20 ... 70 °C (-4 ... 158 °F) Mechanical specifications Plug connector Tightening torque0.6 Nm Loosening protectionavailable Tool installationstraight knurling and hexagon nut SW = 14 mm Mating cyclesmin. 100 Shieldingshield connected to screw connection Connector 1 Loosening protection Degree of protectionIP68 / IP69 Cableaccording to IEC/EN 60228 (DIN VDE 0295) class 5 Sheath diameter6 mm Bending radius> 10 x cable diameter, moving > 8 x cable diameter, fixed Sheath stripping forcemax. 60 N / 100 mm Sheath colorgreen (similar to RAL 6018) Number of cores4 Core cross section0.34 mm2 / 22 AWG Cores colorCore 1: yellow Core 2: white Core 3: orange Core 4: blue Core construction7 x 0.254 mm ∅ twisted pairs to twisted quad Shieldaluminum-lined polyester foilTinned copper braiding Lengthmax. 0.3 m Drag chain suitability Drag chain cyclesmax. 1000000 Motion velocitymax. 3 m/s Traverse distancemax. 5 m Accelerationmax. 2 m/s2 Material PWIS freeyes Halogen-freeyes Plug connector Screw connectionZinc diecast, nickel-plated BodyTPU, black SealFKM Contact surfaceAu FlammabilityV-2 Cable SheathingPUR based on polyether Core insulationPP FlammabilityFT2 Classifications SystemClasscode ECLASS 11.027060311 ECLASS 10.0.127060311 ECLASS 9.027060311 ECLASS 8.027279218 ECLASS 5.127279201 ETIM 8.0EC001855 ETIM 7.0EC001855 ETIM 6.0EC001855 ETIM 5.0EC002585 UNSPSC 12.131251501
