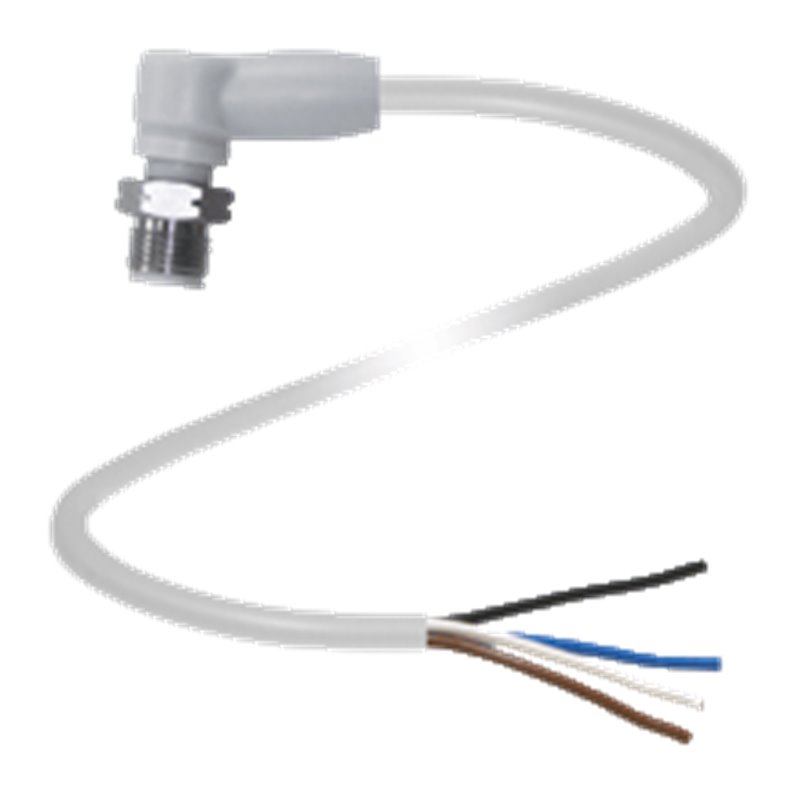

V1S-WV4A-2M-PP-W1 PEPPERL+FUCHS - Part number: 294575

Datasheet excerpt: Technical data of  V1S-WV4A-2M-PP-W1 Product Description Single-ended male cordset, M12, V4A stainless steel, wash-down design, 4-pin, PP cable General specifications Number of pins4 Connection 1Male connector Construction type 1right angle Threading 1M12 Connection 2cable end Electrical specifications Operating voltagemax. 250 V AC/DC Operating currentmax. 4 A Compliance with standards and directives Standard conformity Degree of protectionEN 60529 StandardsIEC 61076-2-101 Halogen-freeIEC 60754-1 Temperature resistanceDIN EN 60811-1-4 MaterialFDA-compliant in accordance with FDA 21 CFR 177.2600 Ambient conditions Ambient temperaturecable, flexing: -25 ... 105 °C (-13 ... 221 °F) cable, fixed: -40 ... 105 °C (-40 ... 221 °F) Pollution degree3 Mechanical specifications Contact elementsspring-loaded contact socket Pin diameter1 mm Degree of protectionIP67 / IP68 / IP69 Material ContactsCuSn Contact surfaceNi/Au BodyPP CablePP-EPDM Slotted nutstainless steel V4A SealFKM Core insolationPP Temperature resistanceCold bending-resistant and cold impact-resistant up to -40 °C (-40 °F) Cableextra-fine wire, flexible Sheath diameter∅ 4.7 mm Bending radius> 10 x cable diameter, moving > 5 x cable diameter, fixed Colorgrey Cores4 x 0.34 mm2 Conductor construction42 x 0.1 mm ∅ Length2 m Drag chain suitability Drag chain cyclesmin. 4000000 Motion velocitymax. 3 m/s Traverse distance10 m Accelerationmax. 10 m/s2 Torsion cyclesmin. 4000000 Torsional stress± 270 °/m Tightening torque, cable gland0.4 ... 0.6 Nm Mating cyclesmin. 100 Classifications SystemClasscode ECLASS 11.027060311 ECLASS 10.0.127060311 ECLASS 9.027060311 ECLASS 8.027279218 ECLASS 5.127279201 ETIM 8.0EC001855 ETIM 7.0EC001855 ETIM 6.0EC001855 ETIM 5.0EC002585 UNSPSC 12.131251501 Datasheet excerpt: Technical data of  V1S-WV4A-2M-PP-W1 Product Description Single-ended male cordset, M12, V4A stainless steel, wash-down design, 4-pin, PP cable General specifications Number of pins4 Connection 1Male connector Construction type 1right angle Threading 1M12 Connection 2cable end Electrical specifications Operating voltagemax. 250 V AC/DC Operating currentmax. 4 A Compliance with standards and directives Standard conformity Degree of protectionEN 60529 StandardsIEC 61076-2-101 Halogen-freeIEC 60754-1 Temperature resistanceDIN EN 60811-1-4 MaterialFDA-compliant in accordance with FDA 21 CFR 177.2600 Ambient conditions Ambient temperaturecable, flexing: -25 ... 105 °C (-13 ... 221 °F) cable, fixed: -40 ... 105 °C (-40 ... 221 °F) Pollution degree3 Mechanical specifications Contact elementsspring-loaded contact socket Pin diameter1 mm Degree of protectionIP67 / IP68 / IP69 Material ContactsCuSn Contact surfaceNi/Au BodyPP CablePP-EPDM Slotted nutstainless steel V4A SealFKM Core insolationPP Temperature resistanceCold bending-resistant and cold impact-resistant up to -40 °C (-40 °F) Cableextra-fine wire, flexible Sheath diameter∅ 4.7 mm Bending radius> 10 x cable diameter, moving > 5 x cable diameter, fixed Colorgrey Cores4 x 0.34 mm2 Conductor construction42 x 0.1 mm ∅ Length2 m Drag chain suitability Drag chain cyclesmin. 4000000 Motion velocitymax. 3 m/s Traverse distance10 m Accelerationmax. 10 m/s2 Torsion cyclesmin. 4000000 Torsional stress± 270 °/m Tightening torque, cable gland0.4 ... 0.6 Nm Mating cyclesmin. 100 Classifications SystemClasscode ECLASS 11.027060311 ECLASS 10.0.127060311 ECLASS 9.027060311 ECLASS 8.027279218 ECLASS 5.127279201 ETIM 8.0EC001855 ETIM 7.0EC001855 ETIM 6.0EC001855 ETIM 5.0EC002585 UNSPSC 12.131251501
