V1SD-G-GN2M-PUR-E1S PEPPERL+FUCHS - Part number: 70137365

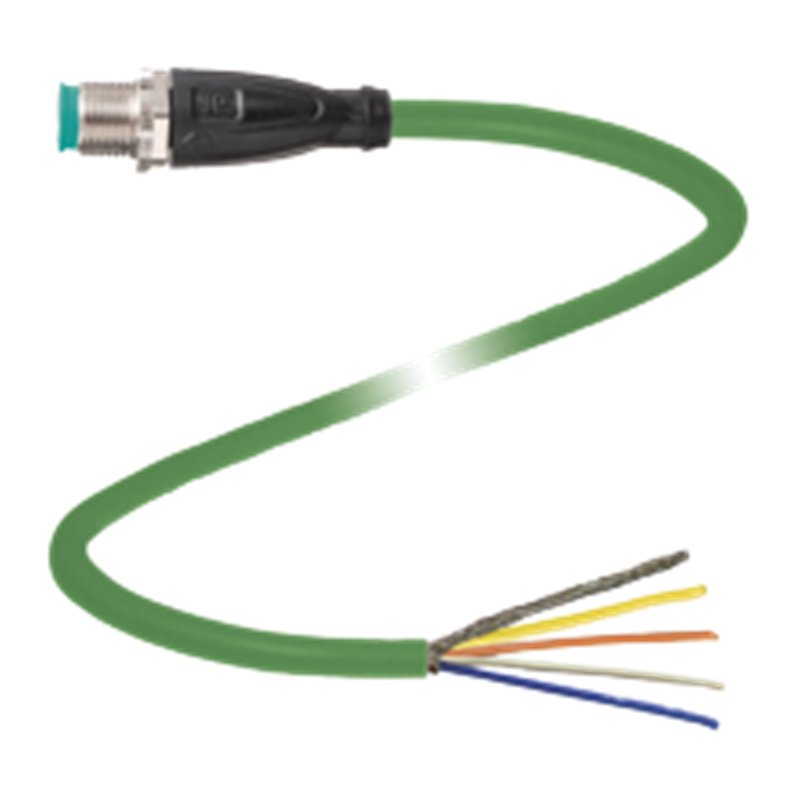

Datasheet excerpt: Technical data of  V1SD-G-GN2M-PUR-E1S Product Description Ethernet bus cable male cordset single-ended M12 straight D-coded 4-pin, PUR cable green, Cat5e, shielded, drag chain suitable General specifications Connector 1 Connectionplug Construction typeM12 Stylestraight Lockingscrew connection Number of pins4 CodingD-coded Connector 2 Connectioncable end Electrical specifications Operating voltagemax. 48 V AC / 60 V DC Conformity Degree of protectionEN 60529 Plug connectionconnector M12 x 1 : IEC 61076-2-101 Component categoryCAT5 (IEC 11801) , CAT5e (IEC 61156-6) FlammabilityIEC 60332-1-2 / UL 2556 Ambient conditions Ambient temperature Plug connector-40 ... 90 °C (-40 ... 194 °F) Cable, fixed-30 ... 70 °C (-22 ... 158 °F) Cable, flexing-20 ... 70 °C (-4 ... 158 °F) Mechanical specifications Plug connector Tightening torque0.6 Nm Loosening protectionavailable Tool installationstraight knurling and hexagon nut SW = 14 mm Mating cyclesmin. 100 Shieldingshield connected to screw connection Degree of protectionIP68 / IP69 Cableaccording to IEC/EN 60228 (DIN VDE 0295) class 5 Sheath diameter6 mm Bending radius> 10 x cable diameter, moving > 8 x cable diameter, fixed Sheath stripping forcemax. 60 N / 100 mm Sheath colorgreen (similar to RAL 6018) Number of cores4 Core cross section0.34 mm2 / 22 AWG Cores colorCore 1: yellow Core 2: white Core 3: orange Core 4: blue Core construction7 x 0.254 mm ∅ twisted pairs to twisted quad Shieldaluminum-lined polyester foilTinned copper braiding Length2 m Drag chain suitability Drag chain cyclesmax. 1000000 Motion velocitymax. 3 m/s Traverse distancemax. 5 m Accelerationmax. 2 m/s2 Material PWIS freeyes Halogen-freeyes Plug connector Screw connectionZinc diecast, nickel-plated BodyTPU, black Contact surfaceAu FlammabilityV-2 Cable SheathingPUR based on polyether Core insulationPP FlammabilityFT2 Classifications SystemClasscode ECLASS 11.027060307 ECLASS 10.0.127060307 ECLASS 9.027060390 ECLASS 8.027060390 ECLASS 5.127279201 ETIM 8.0EC001855 ETIM 7.0EC001855 ETIM 6.0EC001855 ETIM 5.0EC002585 UNSPSC 12.131251501 Datasheet excerpt: Technical data of  V1SD-G-GN2M-PUR-E1S Product Description Ethernet bus cable male cordset single-ended M12 straight D-coded 4-pin, PUR cable green, Cat5e, shielded, drag chain suitable General specifications Connector 1 Connectionplug Construction typeM12 Stylestraight Lockingscrew connection Number of pins4 CodingD-coded Connector 2 Connectioncable end Electrical specifications Operating voltagemax. 48 V AC / 60 V DC Conformity Degree of protectionEN 60529 Plug connectionconnector M12 x 1 : IEC 61076-2-101 Component categoryCAT5 (IEC 11801) , CAT5e (IEC 61156-6) FlammabilityIEC 60332-1-2 / UL 2556 Ambient conditions Ambient temperature Plug connector-40 ... 90 °C (-40 ... 194 °F) Cable, fixed-30 ... 70 °C (-22 ... 158 °F) Cable, flexing-20 ... 70 °C (-4 ... 158 °F) Mechanical specifications Plug connector Tightening torque0.6 Nm Loosening protectionavailable Tool installationstraight knurling and hexagon nut SW = 14 mm Mating cyclesmin. 100 Shieldingshield connected to screw connection Degree of protectionIP68 / IP69 Cableaccording to IEC/EN 60228 (DIN VDE 0295) class 5 Sheath diameter6 mm Bending radius> 10 x cable diameter, moving > 8 x cable diameter, fixed Sheath stripping forcemax. 60 N / 100 mm Sheath colorgreen (similar to RAL 6018) Number of cores4 Core cross section0.34 mm2 / 22 AWG Cores colorCore 1: yellow Core 2: white Core 3: orange Core 4: blue Core construction7 x 0.254 mm ∅ twisted pairs to twisted quad Shieldaluminum-lined polyester foilTinned copper braiding Length2 m Drag chain suitability Drag chain cyclesmax. 1000000 Motion velocitymax. 3 m/s Traverse distancemax. 5 m Accelerationmax. 2 m/s2 Material PWIS freeyes Halogen-freeyes Plug connector Screw connectionZinc diecast, nickel-plated BodyTPU, black Contact surfaceAu FlammabilityV-2 Cable SheathingPUR based on polyether Core insulationPP FlammabilityFT2 Classifications SystemClasscode ECLASS 11.027060307 ECLASS 10.0.127060307 ECLASS 9.027060390 ECLASS 8.027060390 ECLASS 5.127279201 ETIM 8.0EC001855 ETIM 7.0EC001855 ETIM 6.0EC001855 ETIM 5.0EC002585 UNSPSC 12.131251501
