V1SD-W-2M-PUR-ABG PEPPERL+FUCHS - Part number: 282345
Disponibile su richiesta

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

V1SD-W-2M-PUR-ABG PEPPERL+FUCHS - Part number: 282345

PEPPERL+FUCHS

confronta
V1SD-W-2M-PUR-ABG PEPPERL+FUCHS - Part number: 282345

Cable connector, Ethernet V1SD-W-2M-PUR-ABG V1SD-W-2M-PUR-ABG Hard-wearing PUR cable Industrial Ethernet D coding for Ethernet CAT5/CAT5e cable Free of paint wetting interfering substances Halogen-free Screw connection suitable for tool assembly Immunity to vibration, with mechanical latching Cable connector, Ethernet V1SD-W-2M-PUR-ABG V1SD-W-2M-PUR-ABG Hard-wearing PUR cable Industrial Ethernet D coding for Ethernet CAT5/CAT5e cable Free of paint wetting interfering substances Halogen-free Screw connection suitable for tool assembly Immunity to vibration, with mechanical latching

MPNs 282345, PEP282345, V1SD-W-2M-PUR-ABG
Codice HS 85369090
Peso N/A
L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.
Venduto da PLC-CITY® e spedito dall'Italia

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Disponibile su richiesta

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

Informazioni prodotto

Descrizione

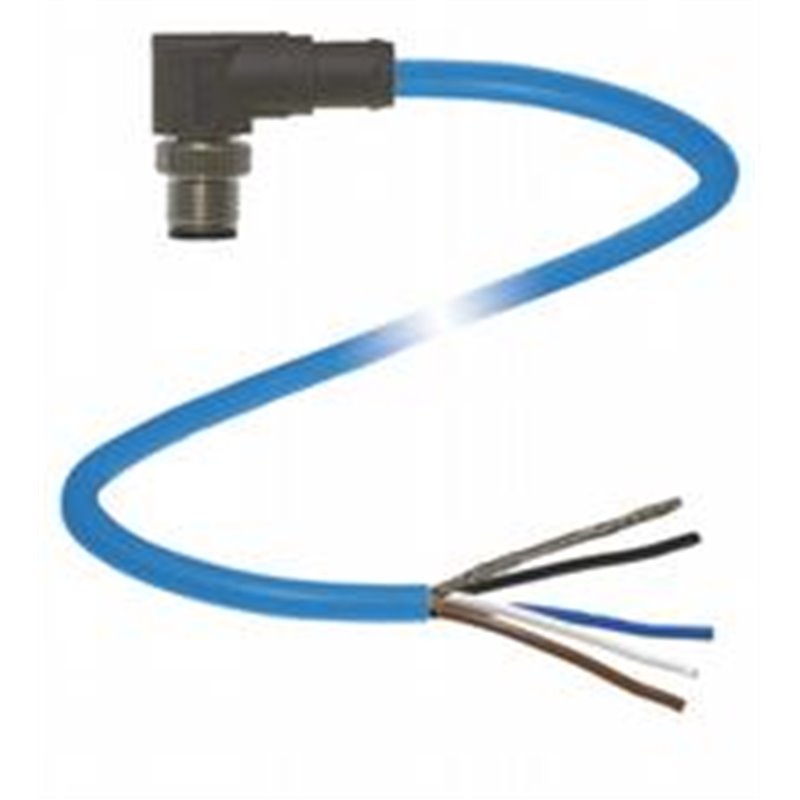

Datasheet excerpt: Technical data of  V1SD-W-2M-PUR-ABG Product Description Ethernet bus cable male cordset single-ended M12 angled D-coded, 4-pin, PUR cable blue, Cat5e, shielded General specifications Connector 1 Connectionplug Construction typeM12 Styleangled Lockingscrew connection Number of pins4 CodingD-coded Connector 2 Connectioncable end Electrical specifications Operating voltagemax. 48 V AC / 60 V DC Operating currentmax. 1 A Conformity Degree of protectionEN 60529 Plug connectionconnector M12 x 1 : IEC 61076-2-101 Component categoryCAT5 (IEC 11801) , CAT5e (IEC 61156-6) FlammabilityIEC 60332-1-2 / UL 2556 Halogen-freeIEC 60754-1 Ambient conditions Ambient temperature Plug connector-25 ... 90 °C (-13 ... 194 °F) Cable, fixed-40 ... 80 °C (-40 ... 176 °F) Cable, flexing-20 ... 80 °C (-4 ... 176 °F) Pollution degree3 Mechanical specifications Plug connector Tightening torque0.4 Nm Loosening protectionavailable Tool installationstraight knurling Mating cyclesmin. 100 Shieldingshield connected to screw connection Degree of protectionIP65/IP67 Cableaccording to IEC/EN 60228 (DIN VDE 0295) class 5 Sheath diameter6.4 mm Bending radius> 8 x cable diameter, moving > 4 x cable diameter, fixed Sheath colorwater blue (RAL 5021) Number of cores4 Core cross-section0.14 mm2 Cores colorCore 1: white/orange Core 2: white/green Core 3: orange Core 4: green Core construction7 x 0.16 mm ∅ twisted pairs Shieldaluminum-lined polyester foilTinned copper braiding, 70 % coverage Length2 m Material PWIS freeyes Halogen-freeyes Plug connector Screw connectionZinc diecast, nickel-plated BodyTPU, black Contact surfaceNi/Au FlammabilityV-2 Cable SheathingPUR Core insulationPE FlammabilityVW-1 Classifications SystemClasscode ECLASS 11.027060307 ECLASS 10.0.127060307 ECLASS 9.027060390 ECLASS 8.027060390 ECLASS 5.127279201 ETIM 8.0EC001855 ETIM 7.0EC001855 ETIM 6.0EC001855 ETIM 5.0EC002585 UNSPSC 12.131251501 Datasheet excerpt: Technical data of  V1SD-W-2M-PUR-ABG Product Description Ethernet bus cable male cordset single-ended M12 angled D-coded, 4-pin, PUR cable blue, Cat5e, shielded General specifications Connector 1 Connectionplug Construction typeM12 Styleangled Lockingscrew connection Number of pins4 CodingD-coded Connector 2 Connectioncable end Electrical specifications Operating voltagemax. 48 V AC / 60 V DC Operating currentmax. 1 A Conformity Degree of protectionEN 60529 Plug connectionconnector M12 x 1 : IEC 61076-2-101 Component categoryCAT5 (IEC 11801) , CAT5e (IEC 61156-6) FlammabilityIEC 60332-1-2 / UL 2556 Halogen-freeIEC 60754-1 Ambient conditions Ambient temperature Plug connector-25 ... 90 °C (-13 ... 194 °F) Cable, fixed-40 ... 80 °C (-40 ... 176 °F) Cable, flexing-20 ... 80 °C (-4 ... 176 °F) Pollution degree3 Mechanical specifications Plug connector Tightening torque0.4 Nm Loosening protectionavailable Tool installationstraight knurling Mating cyclesmin. 100 Shieldingshield connected to screw connection Degree of protectionIP65/IP67 Cableaccording to IEC/EN 60228 (DIN VDE 0295) class 5 Sheath diameter6.4 mm Bending radius> 8 x cable diameter, moving > 4 x cable diameter, fixed Sheath colorwater blue (RAL 5021) Number of cores4 Core cross-section0.14 mm2 Cores colorCore 1: white/orange Core 2: white/green Core 3: orange Core 4: green Core construction7 x 0.16 mm ∅ twisted pairs Shieldaluminum-lined polyester foilTinned copper braiding, 70 % coverage Length2 m Material PWIS freeyes Halogen-freeyes Plug connector Screw connectionZinc diecast, nickel-plated BodyTPU, black Contact surfaceNi/Au FlammabilityV-2 Cable SheathingPUR Core insulationPE FlammabilityVW-1 Classifications SystemClasscode ECLASS 11.027060307 ECLASS 10.0.127060307 ECLASS 9.027060390 ECLASS 8.027060390 ECLASS 5.127279201 ETIM 8.0EC001855 ETIM 7.0EC001855 ETIM 6.0EC001855 ETIM 5.0EC002585 UNSPSC 12.131251501
