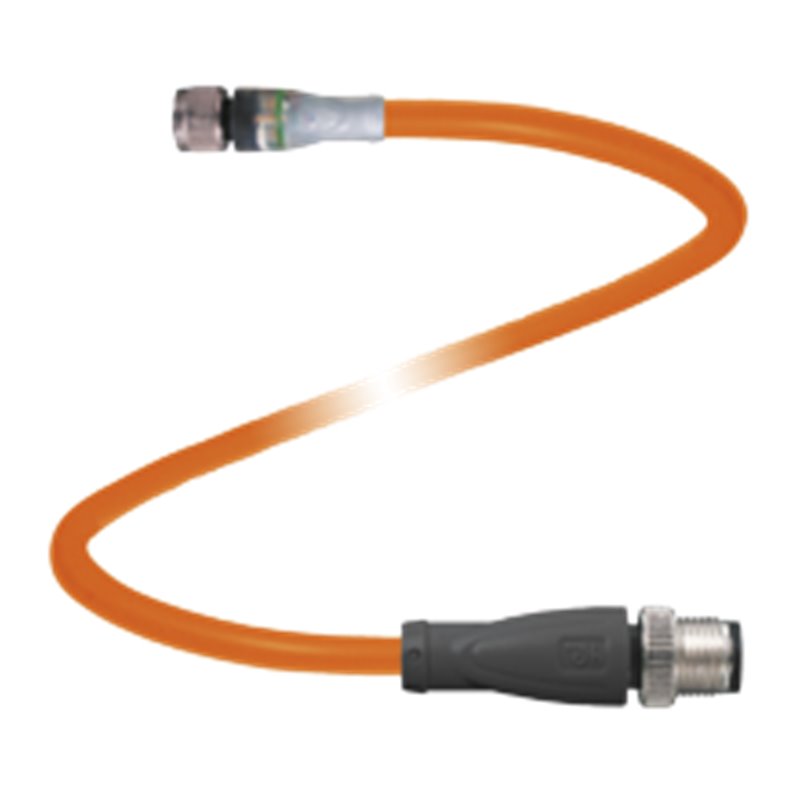

V3-GM-E2-OR8M-POC-V11-G PEPPERL+FUCHS - Part number: 70112324

Datasheet excerpt: Technical data of  V3-GM-E2-OR8M-POC-V11-G Product Description Cordset M8 socket angled A-coded LED 3-pin to M12 plug straight A-coded 3-pin, POC cable welding-bead resistant orange, suitable for robotic applications, torsion resistant, oil resistant, molecurlarly cross-linked General specifications Connector 1 Connectionsocket Construction typeM8 Stylestraight Lockingscrew connection Number of pins3 CodingA-coded Connector 2 Connectionplug Construction typeM12 Stylestraight Lockingscrew connection Number of pins3 CodingA-coded Indicators/operating means LED greenOperating display LED yellowFunctional display pin 4 Electrical specifications Operating voltagemax. 24 V DC -20 % / +25 % Operating currentmax. 3 A Conformity Degree of protectionEN 60529 Plug connectionconnector M12 x 1 : IEC 61076-2-101 connector M8 x 1 : IEC 61076-2-104 FlammabilityIEC 60332-1-2 , ISO 14572 , ISO 6722 Halogen-freeIEC 60754-2 Hydrolysis resistanceISO 6722 Oil resistanceISO 14572 Ambient conditions Ambient temperature Plug connector-40 ... 90 °C (-40 ... 194 °F) Cable, fixed-40 ... 120 °C (-40 ... 248 °F) for 20000 h-40 ... 150 °C (-40 ... 302 °F) for 3000 h Cable, flexing-15 ... 120 °C (5 ... 248 °F) for 20000 h-15 ... 150 °C (5 ... 302 °F) for 3000 h Pollution degree3 Mechanical specifications Connector 1 Tightening torque0.4 Nm Loosening protectionavailable Tool installationstraight knurling Mating cyclesmin. 100 Degree of protectionIP67 Connector 2 Tightening torque0.6 Nm Loosening protectionavailable Tool installationstraight knurling Mating cyclesmin. 100 Degree of protectionIP67 / IP68 / IP69 Cableaccording to IEC/EN 60228 (DIN VDE 0295) class 5 Sheath diameter4.8 mm Bending radius> 10 x cable diameter, moving > 10 x cable diameter, fixed Sheath stripping forcemax. 50 N / 300 mm Sheath colororange (similar to RAL 2003) Number of cores4 Core cross-section0.34 mm2 Cores colorCore 1: brown Core 2: not used Core 3: blue Core 4: black Core construction19 x 0.16 mm ∅ Length8 m Cable codeLi 7Y 41X 4 x 0,34 Drag chain suitability Torsion cyclesmin. 300000 Torsional stress± 360 °/ 30 cm Material LABS freeyes Halogen-freeyes Plug connector Screw connectionZinc diecast, nickel-plated BodyTPU, transparent/black Contact surfaceAu FlammabilityV-2 Cable SheathingPOC Core insulationETFE Welding-bead resistanceyes Weld spatter resistanceyes Oil resistanceyes Hydrolysis resistanceyes Flammabilityflame-resistant Molecularly cross-linkedyes Classifications SystemClasscode ECLASS 11.027060311 ECLASS 10.0.127060311 ECLASS 9.027060311 ECLASS 8.027279218 ECLASS 5.127279201 ETIM 8.0EC001855 ETIM 7.0EC001855 ETIM 6.0EC001855 ETIM 5.0EC002585 UNSPSC 12.131251501 Datasheet excerpt: Technical data of  V3-GM-E2-OR8M-POC-V11-G Product Description Cordset M8 socket angled A-coded LED 3-pin to M12 plug straight A-coded 3-pin, POC cable welding-bead resistant orange, suitable for robotic applications, torsion resistant, oil resistant, molecurlarly cross-linked General specifications Connector 1 Connectionsocket Construction typeM8 Stylestraight Lockingscrew connection Number of pins3 CodingA-coded Connector 2 Connectionplug Construction typeM12 Stylestraight Lockingscrew connection Number of pins3 CodingA-coded Indicators/operating means LED greenOperating display LED yellowFunctional display pin 4 Electrical specifications Operating voltagemax. 24 V DC -20 % / +25 % Operating currentmax. 3 A Conformity Degree of protectionEN 60529 Plug connectionconnector M12 x 1 : IEC 61076-2-101 connector M8 x 1 : IEC 61076-2-104 FlammabilityIEC 60332-1-2 , ISO 14572 , ISO 6722 Halogen-freeIEC 60754-2 Hydrolysis resistanceISO 6722 Oil resistanceISO 14572 Ambient conditions Ambient temperature Plug connector-40 ... 90 °C (-40 ... 194 °F) Cable, fixed-40 ... 120 °C (-40 ... 248 °F) for 20000 h-40 ... 150 °C (-40 ... 302 °F) for 3000 h Cable, flexing-15 ... 120 °C (5 ... 248 °F) for 20000 h-15 ... 150 °C (5 ... 302 °F) for 3000 h Pollution degree3 Mechanical specifications Connector 1 Tightening torque0.4 Nm Loosening protectionavailable Tool installationstraight knurling Mating cyclesmin. 100 Degree of protectionIP67 Connector 2 Tightening torque0.6 Nm Loosening protectionavailable Tool installationstraight knurling Mating cyclesmin. 100 Degree of protectionIP67 / IP68 / IP69 Cableaccording to IEC/EN 60228 (DIN VDE 0295) class 5 Sheath diameter4.8 mm Bending radius> 10 x cable diameter, moving > 10 x cable diameter, fixed Sheath stripping forcemax. 50 N / 300 mm Sheath colororange (similar to RAL 2003) Number of cores4 Core cross-section0.34 mm2 Cores colorCore 1: brown Core 2: not used Core 3: blue Core 4: black Core construction19 x 0.16 mm ∅ Length8 m Cable codeLi 7Y 41X 4 x 0,34 Drag chain suitability Torsion cyclesmin. 300000 Torsional stress± 360 °/ 30 cm Material LABS freeyes Halogen-freeyes Plug connector Screw connectionZinc diecast, nickel-plated BodyTPU, transparent/black Contact surfaceAu FlammabilityV-2 Cable SheathingPOC Core insulationETFE Welding-bead resistanceyes Weld spatter resistanceyes Oil resistanceyes Hydrolysis resistanceyes Flammabilityflame-resistant Molecularly cross-linkedyes Classifications SystemClasscode ECLASS 11.027060311 ECLASS 10.0.127060311 ECLASS 9.027060311 ECLASS 8.027279218 ECLASS 5.127279201 ETIM 8.0EC001855 ETIM 7.0EC001855 ETIM 6.0EC001855 ETIM 5.0EC002585 UNSPSC 12.131251501
