V31-GR-6M-PUR PEPPERL+FUCHS - Part number: 317139

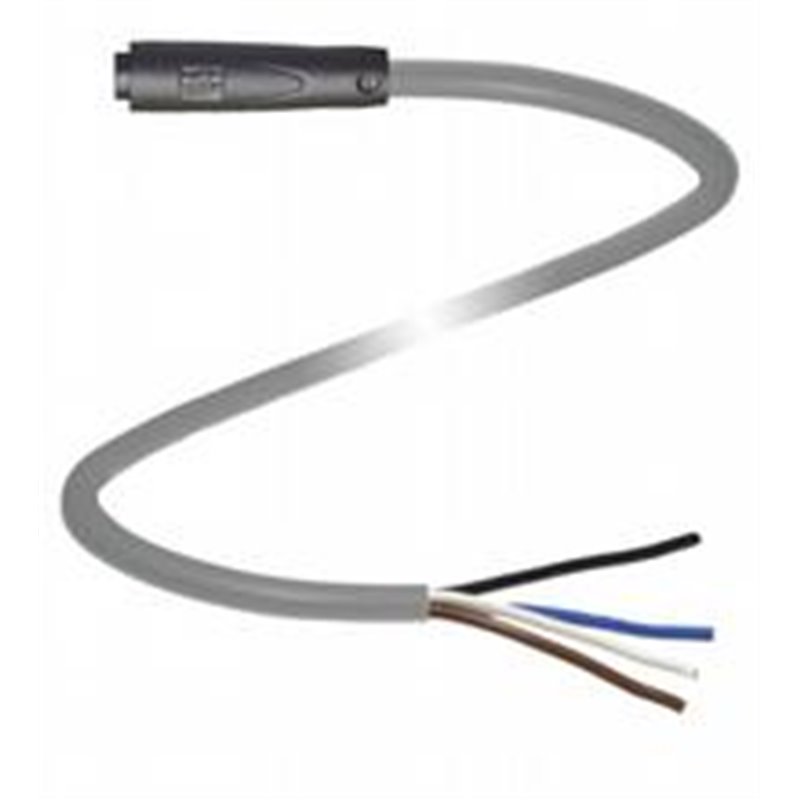

Datasheet excerpt: Technical data of  V31-GR-6M-PUR Product Description Female cordset single-ended M8 snap-lock straight A-coded, 4-pin, PUR cable grey General specifications Connector 1 Connectionsocket Construction typeM8 Stylestraight LockingSnap locking Number of pins4 CodingA-coded Connector 2 Connectioncable end Electrical specifications Operating voltagemax. 30 V AC/DC Operating currentmax. 3 A Conformity Degree of protectionEN 60529 Plug connectionconnector M8 x 1 : IEC 61076-2-104 Halogen-freeIEC 60754-1 Ambient conditions Ambient temperature Plug connector-25 ... 90 °C (-13 ... 194 °F) Cable, fixed-40 ... 80 °C (-40 ... 176 °F) Cable, flexing-20 ... 80 °C (-4 ... 176 °F) Pollution degree3 Mechanical specifications Plug connector Mating cyclesmin. 100 Degree of protectionIP67 Cableaccording to IEC/EN 60228 (DIN VDE 0295) class 5 Sheath diameter4.3 mm Bending radius> 15 x cable diameter, moving > 8 x cable diameter, fixed Sheath stripping forcemax. 60 N / 500 mm Sheath colorgrey (similar to RAL 7001) Number of cores4 Core cross-section0.25 mm2 Cores colorCore 1: brown Core 2: white Core 3: blue Core 4: black Core construction14 x 0.15 mm ∅ Length6 m Cable codeLi 9Y 11Y 4 x 0,25 Drag chain suitability Drag chain cyclesmax. 50 / day Motion velocitymax. 0.3 m/s Material Halogen-freeyes Plug connector Bodyblack PUR Contact surfaceAu FlammabilityV-2 Cable SheathingPUR based on polyether Core insulationPP Chemical resistancegood Microbial resistanceyes Hydrolysis resistanceyes Classifications SystemClasscode ECLASS 11.027060311 ECLASS 10.0.127060311 ECLASS 9.027060311 ECLASS 8.027279218 ECLASS 5.127279201 ETIM 8.0EC001855 ETIM 7.0EC001855 ETIM 6.0EC001855 ETIM 5.0EC002585 UNSPSC 12.131251501 Datasheet excerpt: Technical data of  V31-GR-6M-PUR Product Description Female cordset single-ended M8 snap-lock straight A-coded, 4-pin, PUR cable grey General specifications Connector 1 Connectionsocket Construction typeM8 Stylestraight LockingSnap locking Number of pins4 CodingA-coded Connector 2 Connectioncable end Electrical specifications Operating voltagemax. 30 V AC/DC Operating currentmax. 3 A Conformity Degree of protectionEN 60529 Plug connectionconnector M8 x 1 : IEC 61076-2-104 Halogen-freeIEC 60754-1 Ambient conditions Ambient temperature Plug connector-25 ... 90 °C (-13 ... 194 °F) Cable, fixed-40 ... 80 °C (-40 ... 176 °F) Cable, flexing-20 ... 80 °C (-4 ... 176 °F) Pollution degree3 Mechanical specifications Plug connector Mating cyclesmin. 100 Degree of protectionIP67 Cableaccording to IEC/EN 60228 (DIN VDE 0295) class 5 Sheath diameter4.3 mm Bending radius> 15 x cable diameter, moving > 8 x cable diameter, fixed Sheath stripping forcemax. 60 N / 500 mm Sheath colorgrey (similar to RAL 7001) Number of cores4 Core cross-section0.25 mm2 Cores colorCore 1: brown Core 2: white Core 3: blue Core 4: black Core construction14 x 0.15 mm ∅ Length6 m Cable codeLi 9Y 11Y 4 x 0,25 Drag chain suitability Drag chain cyclesmax. 50 / day Motion velocitymax. 0.3 m/s Material Halogen-freeyes Plug connector Bodyblack PUR Contact surfaceAu FlammabilityV-2 Cable SheathingPUR based on polyether Core insulationPP Chemical resistancegood Microbial resistanceyes Hydrolysis resistanceyes Classifications SystemClasscode ECLASS 11.027060311 ECLASS 10.0.127060311 ECLASS 9.027060311 ECLASS 8.027279218 ECLASS 5.127279201 ETIM 8.0EC001855 ETIM 7.0EC001855 ETIM 6.0EC001855 ETIM 5.0EC002585 UNSPSC 12.131251501
