KFU8-UFT-2.D.FA PEPPERL+FUCHS - Part number: 192334
NFS
Non disponibile - Backorder
Da ordinare dal produttore
928,21 USD

Tasse di importazione escluse

Devi essere autenticato

KFU8-UFT-2.D.FA PEPPERL+FUCHS - Part number: 192334

PEPPERL+FUCHS

confronta
KFU8-UFT-2.D.FA PEPPERL+FUCHS - Part number: 192334

Frequency Converter with Direction and Synchronization Monitor KFU8-UFT-2.D.FA KFU8-UFT-2.D.FA 2-channel signal conditioner Universal usage at different power supplies Dry contact or NAMUR inputs Input frequency 1 mHz ... 1 kHz Current output 0/4 mA ... 20 mA Relay contact and transistor output Start-up override Configurable by PACTware or keypad Line fault detection (LFD) Frequency Converter with Direction and Synchronization Monitor KFU8-UFT-2.D.FA KFU8-UFT-2.D.FA 2-channel signal conditioner Universal usage at different power supplies Dry contact or NAMUR inputs Input frequency 1 mHz ... 1 kHz Current output 0/4 mA ... 20 mA Relay contact and transistor output Start-up override Configurable by PACTware or keypad Line fault detection (LFD)

MPNs 192334, PEP192334, KFU8-UFT-2.D.FA
Codice HS 90318000
Peso 0.3 kg

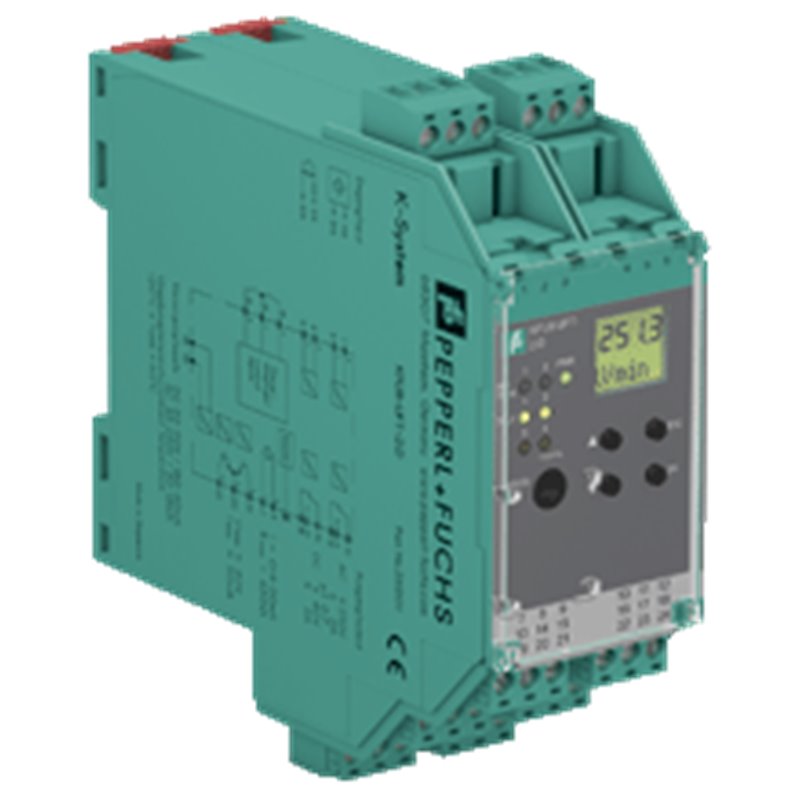

L'immagine del prodotto è solo a scopo illustrativo.
Il paese di origine, il codice HS e la descrizione sono forniti dal produttore e possono essere soggetti a modifiche senza preavviso. Per questo motivo, PLC-City non può essere ritenuta responsabile di eventuali discrepanze.
Venduto da PLC-CITY® e spedito dall'Italia

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

NFS Condition NFS
Nuovo in Scatola Sigillata - Originale
Non disponibile - Backorder
Da ordinare dal produttore
928,21 USD

Tasse di importazione escluse

Devi essere autenticato
Venduto da PLC-CITY® e spedito dall'Italia
Siamo Partner Specialista di PEPPERL+FUCHS
Spedizione espressa gratuita verso Stati Uniti
Loader...
Vedi tutti i servizi di spedizione
Richiedi un preventivo per conoscere la data di consegna

Accettiamo molti metodi di pagamento: Bonifico bancario (SEPA, ACH), Carte di debito/credito (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
Maggiori informazioni sui nostri metodi di pagamento

Questo prodotto è coperto da una garanzia di 12 Mesi, valida per difetti di fabbricazione o malfunzionamenti. La garanzia non copre danni causati da uso improprio o danni accidentali.
Maggiori informazioni sulla nostra garanzia

È possibile effettuare il reso previa autorizzazione e ottenere un credito, escluso per il backorder.

Visualizza la nostra politica di reso

Ottieni il tuo preventivo personalizzato ora

Un commerciale di vendita dedicato vi assisterà per offrire il miglior prezzo e tempi di consegna.

Devi essere autenticato

Richiedi il tuo servizio tecnico personalizzato

Affidati al nostro team di tecnici esperti per una gamma di servizi personalizzati: riparazione, programmazione, manutenzione e molto altro.

Informazioni prodotto

Descrizione

Datasheet excerpt: Technical data of  KFU8-UFT-2.D.FA General specifications Signal typeDigital Input Supply Connectionterminals 23, 24 Rated voltage20 ... 90 V DC / 48 ... 253 V AC 50 ... 60 Hz Rated current130 mA Power dissipation2.2 W / 3.5 VA Power consumption2.5 W / 4 VA Interface Programming interfaceprogramming socket Input Connection sidefield side Connectioninput I: terminals 1+, 3-input II: terminals 4+, 6- input III: terminals 13+, 14- (control input 1) input IV: terminals 15+, 14- (control input 2) Input I, II2-wire sensor, sensor acc. to EN 60947-5-6 (NAMUR) or mechanical contact Open circuit voltage/short-circuit current8.2 V / 10 mA Switching point/switching hysteresislogic 1: > 2.5 mA ; logic 0: < 1.9 mA Pulse durationmin. 250 µs , overlap on direction of rotation signal: ≥ 125 µs Input frequencyrotation direction monitoring 0.001 ... 1000 Hz slip monitoring 10 ... 1000 Hz Line fault detectionbreakage I ≤ 0.15 mA; short-circuit I > 4 mA Input III, IV Active/PassiveI > 4 mA (for min. 100 ms) / I < 1.5 mA Open circuit voltage/short-circuit current18 V / 5 mA Output Connection sidecontrol side Connectionoutput I: terminals 10, 11, 12 output II: terminals 16, 17, 18 output III: terminals 19+, 20- output IV: terminals 21+, 20- output V: terminals 7-, 8+ Output I, IIsignal, relay Contact loading250 V AC / 2 A / cos φ ≥ 0.7 ; 40 DC / 2 A Mechanical life5 x 107 switching cycles Energized/De-energized delay20 ms / 20 ms Output III and IVsignal , electronic output, passive Contact loading40 V DC Signal level1-signal: (L+) -2.5 V (50 mA, short-circuit/overload proof) 0-signal: blocked output (off-state current ≤ 10 µA) Output Vanalog Current range0 ... 20 mA or 4 ... 20 mA Open loop voltagemax. 24 V DC Loadmax. 650 Ω Fault signaldownscale I ≤ 3.6 mA, upscale I ≥ 21.5 mA (acc. NAMUR NE43) Programming interface Connectionprogramming socket InterfaceRS 232 Transfer characteristics Input I and II Measurement range0.001 ... 1000 Hz Resolutionslip monitoring: 1% frequency measurement: 0,1% of measured value; but >0.001Hz Accuracyslip monitoring: 1% frequency measurement: 0.5% of measured value; but >0.001Hz Measuring timefrequency measurement: < 100 ms Influence of ambient temperature0.003 %/K (30 ppm) Output I, II Response delay≤ 200 ms Output V Resolution< 10 µA Accuracy< 30 µA Influence of ambient temperature0.005 %/K (50 ppm) Galvanic isolation Input I, II/other circuitsreinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff Input III, IV/power supplyreinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff Output I, II/other circuitsreinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff Mutual output I, II, IIIreinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff Mutual output I, II, IV reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff Output III, IV/power supplyreinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff Output III, IV/input III, IVbasic insulation according to IEC/EN 61010-1, rated insulation voltage 50 Veff Output III, IV/Vbasic insulation according to IEC/EN 61010-1, rated insulation voltage 50 Veff Output V/power supplyreinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff Interface/power supplyreinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff Interface/output III, IVbasic insulation according to IEC/EN 61010-1, rated insulation voltage 50 Veff Indicators/settings Display elementsLEDs , display Control elementsControl panel Configurationvia operating buttons via PACTware Labelingspace for labeling at the front Directive conformity Electromagnetic compatibility Directive 2014/30/EUEN 61326-1:2006 Low voltage Directive 2014/35/EUEN 61010-1:2010 Conformity Electromagnetic compatibilityNE 21:2006 Degree of protectionIEC 60529:2001 InputEN 60947-5-6:2000 Ambient conditions Ambient temperature-20 ... 60 °C (-4 ... 140 °F) Mechanical specifications Degree of protectionIP20 Connectionscrew terminals Mass300 g Dimensions40 x 119 x 115 mm (1.6 x 4.7 x 4.5 inch) , housing type C2 Mountingon 35 mm DIN mounting rail acc. to EN 60715:2001 General information Supplementary informationObserve the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. Classifications SystemClasscode ECLASS 11.027210128 ECLASS 10.0.127210128 ECLASS 9.027210128 ECLASS 8.027210190 ECLASS 5.127210121 ETIM 8.0EC002918 ETIM 7.0EC002918 ETIM 6.0EC002918 ETIM 5.0EC002475 UNSPSC 12.139121007 Datasheet excerpt: Technical data of  KFU8-UFT-2.D.FA General specifications Signal typeDigital Input Supply Connectionterminals 23, 24 Rated voltage20 ... 90 V DC / 48 ... 253 V AC 50 ... 60 Hz Rated current130 mA Power dissipation2.2 W / 3.5 VA Power consumption2.5 W / 4 VA Interface Programming interfaceprogramming socket Input Connection sidefield side Connectioninput I: terminals 1+, 3-input II: terminals 4+, 6- input III: terminals 13+, 14- (control input 1) input IV: terminals 15+, 14- (control input 2) Input I, II2-wire sensor, sensor acc. to EN 60947-5-6 (NAMUR) or mechanical contact Open circuit voltage/short-circuit current8.2 V / 10 mA Switching point/switching hysteresislogic 1: > 2.5 mA ; logic 0: < 1.9 mA Pulse durationmin. 250 µs , overlap on direction of rotation signal: ≥ 125 µs Input frequencyrotation direction monitoring 0.001 ... 1000 Hz slip monitoring 10 ... 1000 Hz Line fault detectionbreakage I ≤ 0.15 mA; short-circuit I > 4 mA Input III, IV Active/PassiveI > 4 mA (for min. 100 ms) / I < 1.5 mA Open circuit voltage/short-circuit current18 V / 5 mA Output Connection sidecontrol side Connectionoutput I: terminals 10, 11, 12 output II: terminals 16, 17, 18 output III: terminals 19+, 20- output IV: terminals 21+, 20- output V: terminals 7-, 8+ Output I, IIsignal, relay Contact loading250 V AC / 2 A / cos φ ≥ 0.7 ; 40 DC / 2 A Mechanical life5 x 107 switching cycles Energized/De-energized delay20 ms / 20 ms Output III and IVsignal , electronic output, passive Contact loading40 V DC Signal level1-signal: (L+) -2.5 V (50 mA, short-circuit/overload proof) 0-signal: blocked output (off-state current ≤ 10 µA) Output Vanalog Current range0 ... 20 mA or 4 ... 20 mA Open loop voltagemax. 24 V DC Loadmax. 650 Ω Fault signaldownscale I ≤ 3.6 mA, upscale I ≥ 21.5 mA (acc. NAMUR NE43) Programming interface Connectionprogramming socket InterfaceRS 232 Transfer characteristics Input I and II Measurement range0.001 ... 1000 Hz Resolutionslip monitoring: 1% frequency measurement: 0,1% of measured value; but >0.001Hz Accuracyslip monitoring: 1% frequency measurement: 0.5% of measured value; but >0.001Hz Measuring timefrequency measurement: < 100 ms Influence of ambient temperature0.003 %/K (30 ppm) Output I, II Response delay≤ 200 ms Output V Resolution< 10 µA Accuracy< 30 µA Influence of ambient temperature0.005 %/K (50 ppm) Galvanic isolation Input I, II/other circuitsreinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff Input III, IV/power supplyreinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff Output I, II/other circuitsreinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff Mutual output I, II, IIIreinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff Mutual output I, II, IV reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff Output III, IV/power supplyreinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff Output III, IV/input III, IVbasic insulation according to IEC/EN 61010-1, rated insulation voltage 50 Veff Output III, IV/Vbasic insulation according to IEC/EN 61010-1, rated insulation voltage 50 Veff Output V/power supplyreinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff Interface/power supplyreinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff Interface/output III, IVbasic insulation according to IEC/EN 61010-1, rated insulation voltage 50 Veff Indicators/settings Display elementsLEDs , display Control elementsControl panel Configurationvia operating buttons via PACTware Labelingspace for labeling at the front Directive conformity Electromagnetic compatibility Directive 2014/30/EUEN 61326-1:2006 Low voltage Directive 2014/35/EUEN 61010-1:2010 Conformity Electromagnetic compatibilityNE 21:2006 Degree of protectionIEC 60529:2001 InputEN 60947-5-6:2000 Ambient conditions Ambient temperature-20 ... 60 °C (-4 ... 140 °F) Mechanical specifications Degree of protectionIP20 Connectionscrew terminals Mass300 g Dimensions40 x 119 x 115 mm (1.6 x 4.7 x 4.5 inch) , housing type C2 Mountingon 35 mm DIN mounting rail acc. to EN 60715:2001 General information Supplementary informationObserve the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. Classifications SystemClasscode ECLASS 11.027210128 ECLASS 10.0.127210128 ECLASS 9.027210128 ECLASS 8.027210190 ECLASS 5.127210121 ETIM 8.0EC002918 ETIM 7.0EC002918 ETIM 6.0EC002918 ETIM 5.0EC002475 UNSPSC 12.139121007
