133-00059 HellermannTyton - T40XEC5SP-E-PA66HS-BK

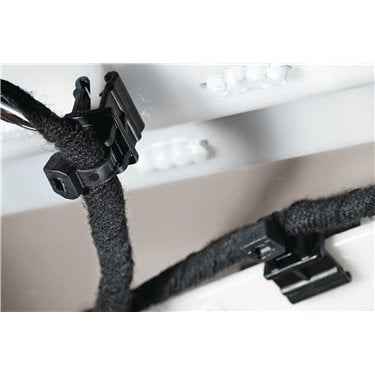

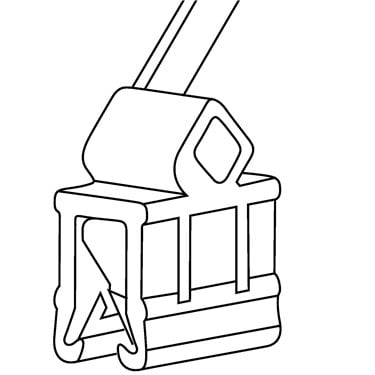

Easy to assemble with one hand. For sheet thicknesses of 1 - 3 mm,3 - 6 mm, 4 - 6 mm or 6 - 8 mm. The internal metal clamp provides an excellent hold. The clamp is made of a special hardened steel. Ideal for applications where it is impossible to drill holes or use adhesives. These clamps with sheet metal edge anchors are ideal for installations where holes are not allowed or when temperature hinders the application of adhesives. Once the tie is secured around the cables, the Edge Clip is ready for panel mounting on the sheet metal edge. Widely used in the automotive industry and by panel builders, it saves considerable time and money. The integrated silver-gray metal clip, the heart of our EdgeClip, consists of a double spring made of hardened steel according to EN 10132-4 C75S. The steel spring gives the clip both the rigidity needed to provide an exceptional hold and the right flexibility for various applications. The double coating consists of a zinc layer and an inorganic surface sealant. Of course, no hexavalent chromium is used. The clamp therefore complies with the current EU Directive 200/53/EC on dismantling and disposal of motor vehicles and the ban on the use of heavy metals. The sophisticated steel spring also meets the requirements for saltiness resistance in EN ISO 9227 NSS (min. 840 hours without corrosion of base metals) and EN ISO 6270-Z-CH (min. 720 hours without corrosion of base materials). This solution has therefore been approved by many OEMs for installation in exposed locations, such as in the engine compartment or gearbox area. Easy to assemble with one hand. For sheet thicknesses of 1 - 3 mm,3 - 6 mm, 4 - 6 mm or 6 - 8 mm. The internal metal clamp provides an excellent hold. The clamp is made of a special hardened steel. Ideal for applications where it is impossible to drill holes or use adhesives. These clamps with sheet metal edge anchors are ideal for installations where holes are not allowed or when temperature hinders the application of adhesives. Once the tie is secured around the cables, the Edge Clip is ready for panel mounting on the sheet metal edge. Widely used in the automotive industry and by panel builders, it saves considerable time and money. The integrated silver-gray metal clip, the heart of our EdgeClip, consists of a double spring made of hardened steel according to EN 10132-4 C75S. The steel spring gives the clip both the rigidity needed to provide an exceptional hold and the right flexibility for various applications. The double coating consists of a zinc layer and an inorganic surface sealant. Of course, no hexavalent chromium is used. The clamp therefore complies with the current EU Directive 200/53/EC on dismantling and disposal of motor vehicles and the ban on the use of heavy metals. The sophisticated steel spring also meets the requirements for saltiness resistance in EN ISO 9227 NSS (min. 840 hours without corrosion of base metals) and EN ISO 6270-Z-CH (min. 720 hours without corrosion of base materials). This solution has therefore been approved by many OEMs for installation in exposed locations, such as in the engine compartment or gearbox area.
