2CDS252280R0104 ABB S202C-C10
ABB
S202C-C10 Miniature Circuit Breaker S202C-C10 Miniature Circuit Breaker
MPNs S202CC10, ABBS202CC10, 2CDS252280R0104
EAN 4053546044676
HS Code 85362010
Country of origin Poland
Weight
0.02 kg
Volumetric weight 0.03 kg

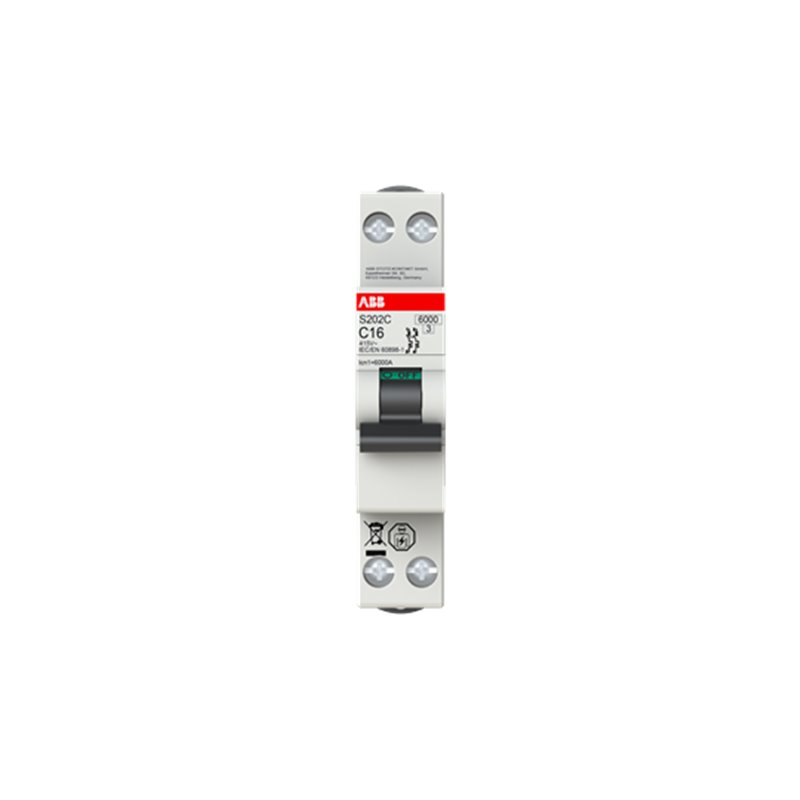

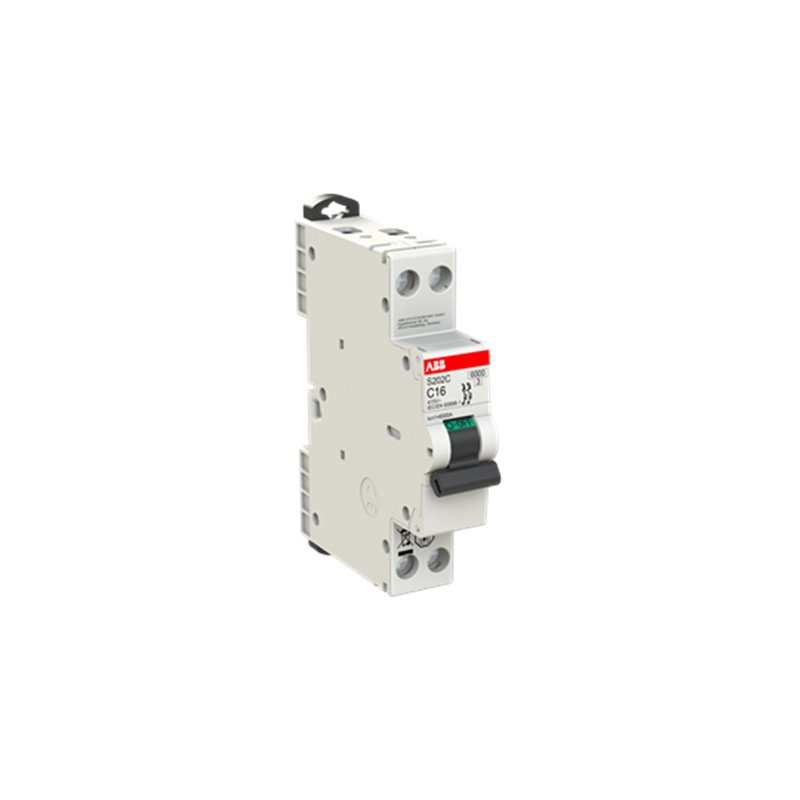

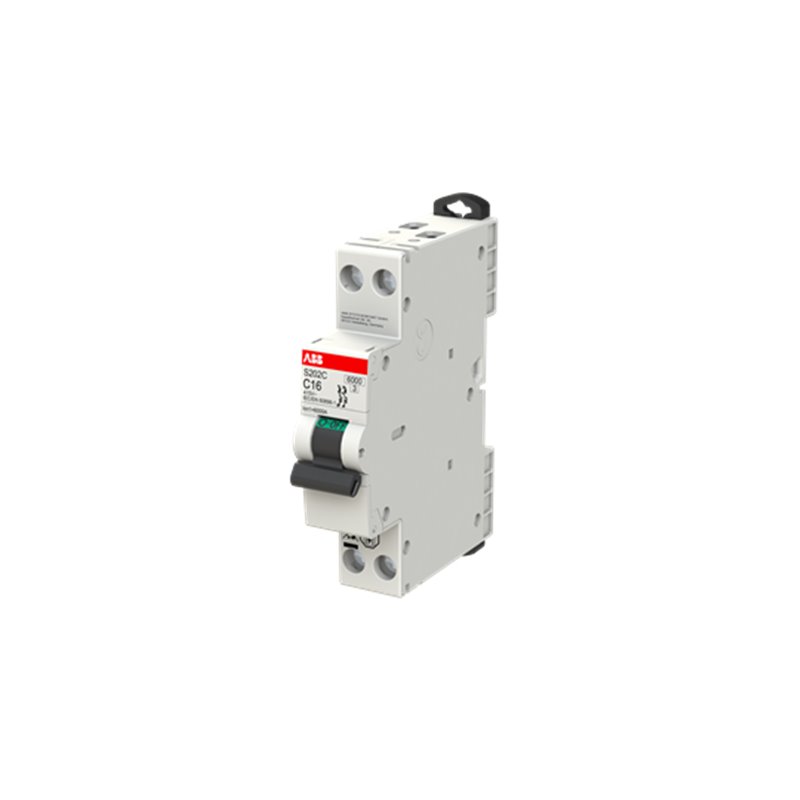

The product image is for illustrative purposes only.
The country of origin, HS code, and description are provided by the manufacturer and may be subject to change without prior notice. For this reason, PLC-City cannot be held responsible for any discrepancies.
Product information
Description
S202C-C10 Miniature Circuit Breaker C-char.,6kA, 10A, 2P 1M
S202C-C10 Miniature Circuit Breaker C-char.,6kA, 10A, 2P 1M
Technical specifications
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- -25;55 °C
- Voltage type
- AC
- Rated voltage
- 415 V
- Connectable conductor cross section solid-core
- 1;16 mm²
- Connectable conductor cross section multi-wired
- 1;10 mm²
- Rated current
- 10 A
- Width in number of modular spacings
- 1
- Built-in depth
- 17.8 mm
- Frequency
- 50;60 Hz
- Rated insulation voltage Ui
- 500 V
- Pollution degree
- 2
- Additional equipment possible
- TRUE
- Rated impulse withstand voltage Uimp
- 4 kV
- Release characteristic
- C
- Over voltage category
- 3
- Number of protected poles
- 2
- Number of poles (total)
- 2
- Current limiting class
- 3
- Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
- 6 kA
- Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
- 6 kA
- Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
- 6 kA
- Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
- 6 kA
