MJN516A HAGER MCB 4500A 1P+N curve C 16A 1 module

The miniature circuit breaker ensures reliable protection with a breaking capacity (Icn) of 4500 A according to CEI EN 60898-1. It operates at 230 V (Un) at 50-60 Hz and is ideal for residential and tertiary installations, protecting against overloads and short circuits. Equipped with 1 protected pole + neutral, C curve and rated current (In) of 16 A, it occupies 1 DIN module.
compare
USD16.97 Price
Available 3928
Minimum order qty: 12
MJN510A - HAGER
NFS

MJN510A HAGER MCB 4500A 1P+N curve C 10A 1 module

The miniature circuit breaker ensures reliable protection with a breaking capacity (Icn) of 4500 A according to CEI EN 60898-1. It operates at 230 V (Un) at 50-60 Hz and is ideal for residential and tertiary installations, protecting against overloads and short circuits. Equipped with 1 protected pole + neutral, C curve and rated current (In) of 10 A, it occupies 1 DIN module.
compare
USD16.97 Price
Available 2699
Minimum order qty: 12
5SY1702-2 Siemens
NWB

5SY1702-2 Siemens

Device circuit breaker 1-pole with auxiliary switch NO contact Characteristic F1 2A 230 V AC 50/60 Hz 60 V DC Icn 3 kA AC according to IEC 60934
compare
USD22.46 Price
Available 572

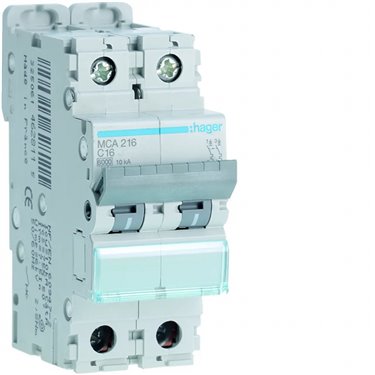

MCA216 - HAGER
NFS

MCA216 HAGER MCB 6000A 10kA 2P curve C 16A 2 modules

The miniature circuit breaker ensures reliable protection with a breaking capacity (Icn) of 6000 A according to CEI EN 60898-1 and (Icu) 10 kA according to CEI EN 60947-2. It operates at 230 V (Un) at 50-60 Hz and is ideal for residential and tertiary installations, protecting against overloads and short circuits. Equipped with 2 protected poles, C curve and rated current (In) of 16 A, it occupies 2 DIN modules.
compare
USD52.29 Price
Available 538
Minimum order qty: 6
