2CSYK1101C ABB 2CSYK1101C Switch actuator 1 channel 16 A, white
Available on request

Get your personalized quote now

A dedicated sales representative will assist you to offer the best price and delivery times.

You must be logged

2CSYK1101C ABB 2CSYK1101C Switch actuator 1 channel 16 A, white

ABB

compare
2CSYK1101C ABB 2CSYK1101C Switch actuator 1 channel 16 A, white

2CSYK1101C Switch actuator 1 channel 16 A, white 2CSYK1101C Switch actuator 1 channel 16 A, white

MPNs 2CSYK1101C, ABB2CSYK1101C, 2CSYK1101C
EAN 8012542148852
HS Code 85389091
Country of origin Italy
Weight 0.1 kg
Volumetric weight 0.13 kg

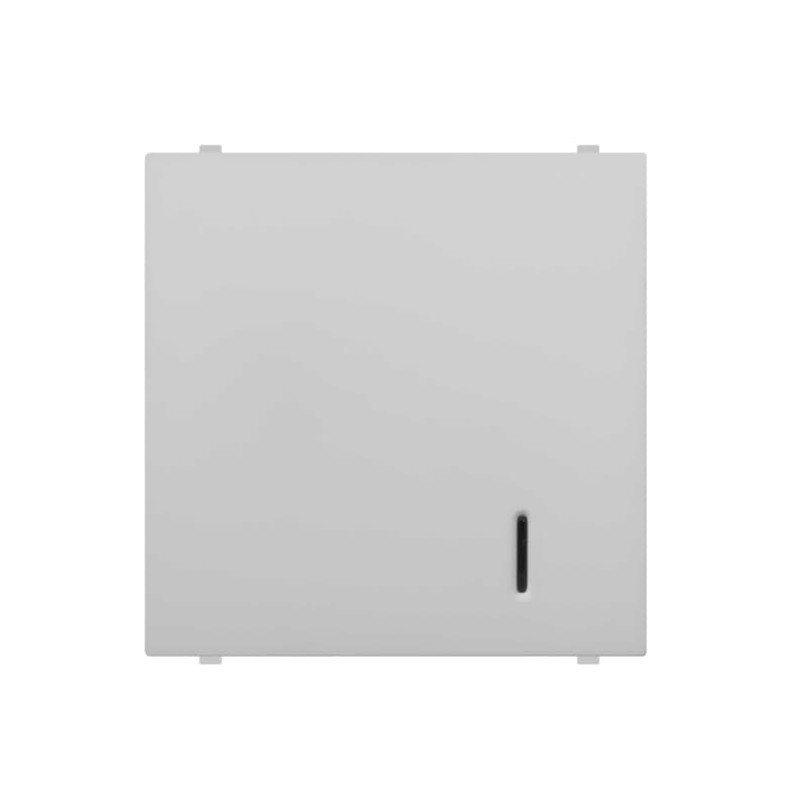

The product image is for illustrative purposes only.
The country of origin, HS code, and description are provided by the manufacturer and may be subject to change without prior notice. For this reason, PLC-City cannot be held responsible for any discrepancies.
Sold by PLC-CITY® and shipped from Italy

We accept many payment methods: Bank Transfer (SEPA, ACH), Debit/Credit Cards (Mastercard, VISA, American Express, Diners Club, Discover, JCB, UnionPay), PayPal, ApplePay, GooglePay, link by Stripe, Cartes Bancaires, Alipay, Bancontact, blik, eps, giropay iDeal, Przelewy24, WeChatPay.
More information about our payment methods

This product is covered by a 12 Months warranty, valid for manufacturing defects or malfunctions. The warranty does not cover damage caused by improper use or accidental damage.
Learn more about our warranty

Returns are subject to prior authorization and eligible for store credit only. Backordered items are excluded.

View our return policy

Available on request

Get your personalized quote now

A dedicated sales representative will assist you to offer the best price and delivery times.

You must be logged

Product information

Description

Device equipped with 1 output channel to switch 1 independent electrical load (16A) via KNX bus. Equipped with LED for functional signaling. Flush-mounted installation. Device equipped with 1 output channel to switch 1 independent electrical load (16A) via KNX bus. Equipped with LED for functional signaling. Flush-mounted installation.

Technical specifications

Degree of protection (IP)
IP20
Mounting method
Flush-mounted
Rated current
16 A
With LED indication
TRUE
Width in number of modular spacings
2
Other bus systems
None
With bus connection
TRUE
Local operation/hand operation
TRUE
Output power
3000 VA
Rated operating voltage
200;250 V
Max. switching power
3000 VA
Max. number of switching contacts
1
Max. switching current
16 A
Bus module detachable
TRUE
Min. depth of built-in installation box
43 mm
Bus system KNX
TRUE
